R687 SWL
R687
- Checking stock...

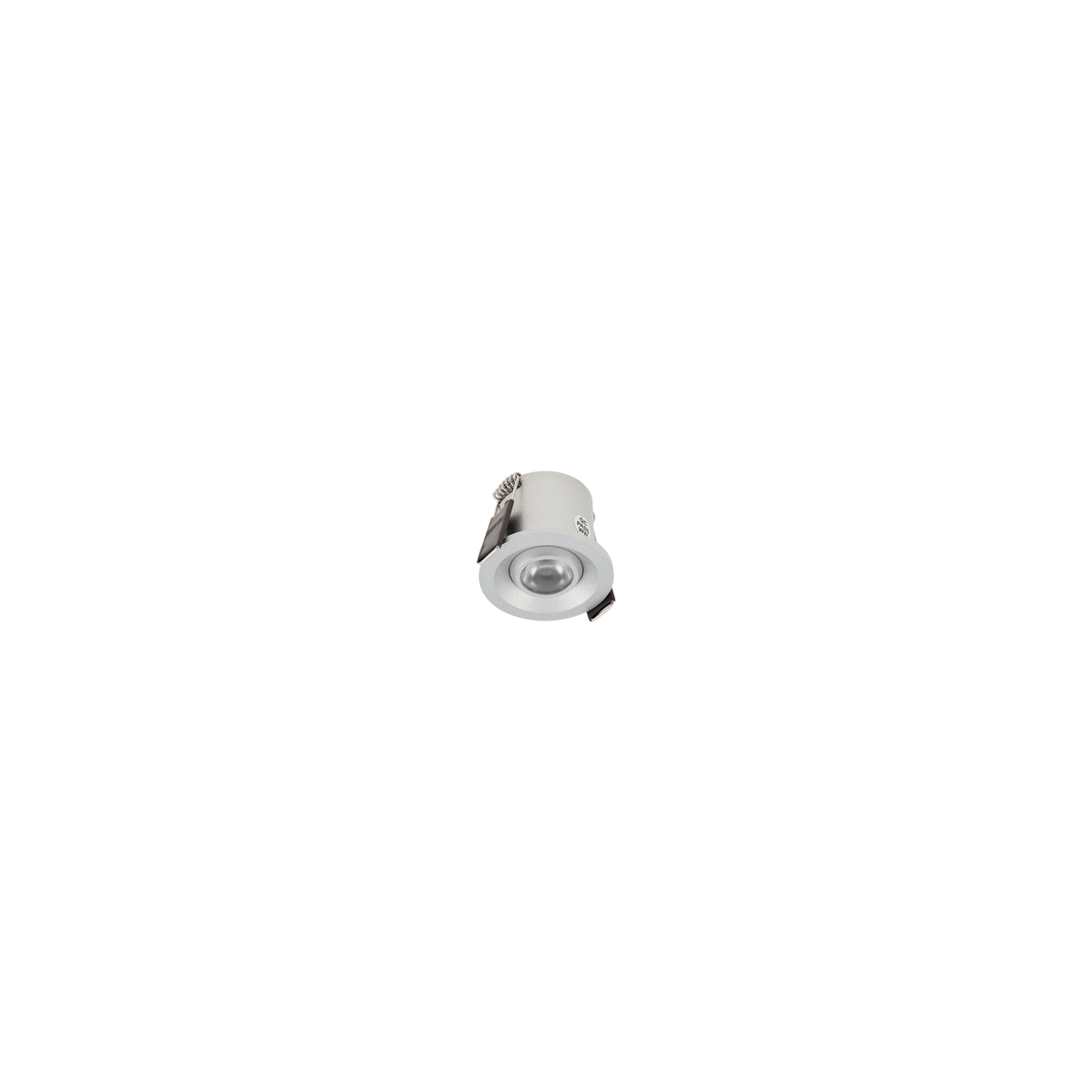

R687 SWL Mini Eyeball Tilt Silver 3000K
Lumens
Watts
126lm
2.4W
View Options
Add Driver
driver not included
View Options
Select Cabinet & Display
R687
Mini Eyeball Tilt Silver 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
126lm
Watts
2.4W
R687
Mini Eyeball Tilt White 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
126lm
Watts
2.4W
R687
Mini Eyeball Tilt Black 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
126lm
Watts
2.4W
Select driver
driver sold separately. Please select below.
Dimmable
DCC700-DM-4W-IP
IP65 700mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
DCC700-DM-10W-IP
IP65 700mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC700-DX-12W
700mA 12W Dimmable Constant Current DX Series Driver
Watts
7W-12W
DCC700-DX-20W
700mA 20W Dimmable Constant Current DX Series Driver
Watts
10.5W-20W
DCC700-DX-30W
700mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
DCC700-D-40W
700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Non Dimmable
DCC700-M-4W-IP
IP65 700mA 4W Constant Current Mini Non-dimmable Driver
Watts
1.4W-4W
DCC700-M-12W-IP
IP65 700mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
DCC700-12W
700mA 12W Constant Current Non-dimmable Driver
Watts
1.5W-12W
DCC700-21W
700mA 21W Constant Current Non-dimmable Driver
Watts
1.5W-21W
DCC700-40W
700mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Specifications
Finish
Silver
Colour Temp
3000K Warm White
Watts
2.4W
Lumens
126lm
Beam Angle
22°
Input
700mA
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP20
Cut Out
38mm
Diameter
45mm
Height
35mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
700mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
