LED346-B34KV2-DD
LED346
- Custom Build - Request Availability

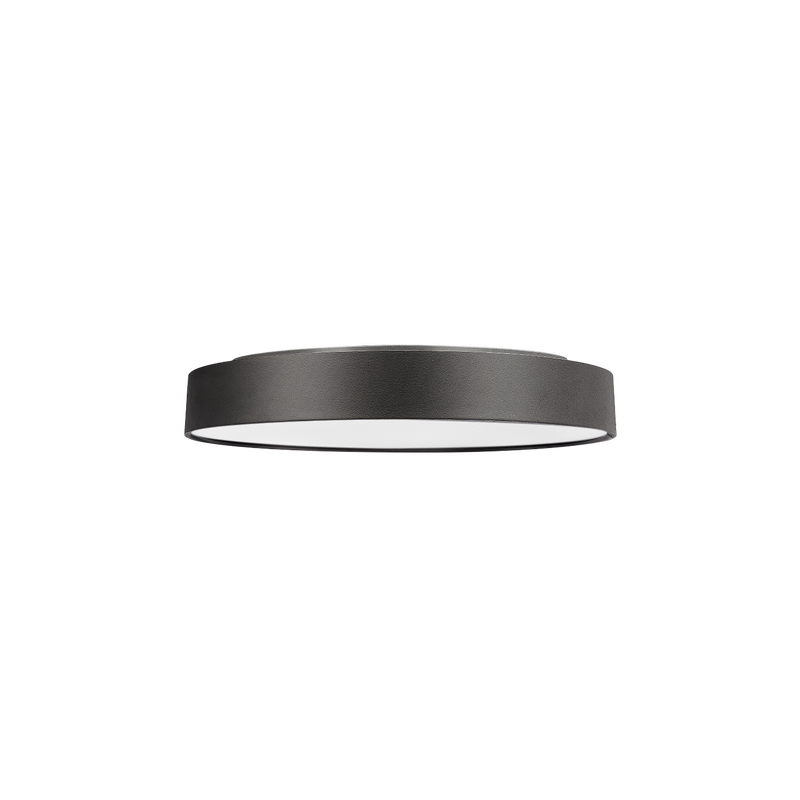

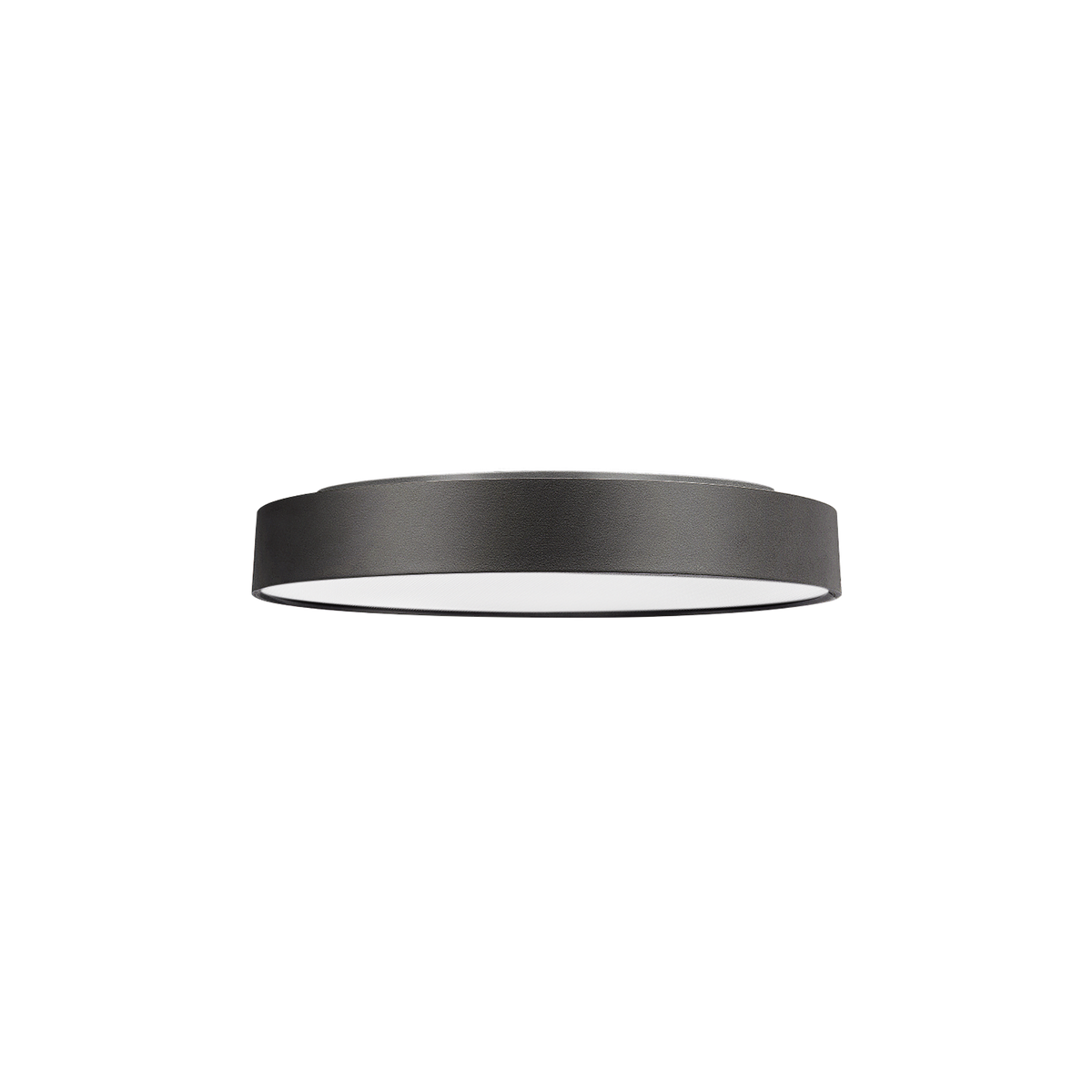

LED346-B34KV2-DD Ledeshi 450mm Modudisc Black Dali 3000K / 4000K
Lumens
Watts
3400lm (See Spec Sheet)
17W, 22W or 30W
View Options
-
LED345 & LED346 Cable Suspension Kit Black
-
Rod Suspension Kit Black
Select Buttons
LED346
Ledeshi 450mm Modudisc Black Dali 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3400lm (See Spec Sheet)
Watts
17W, 22W or 30W
LED346
Ledeshi 450mm Modudisc Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
2000lm, 2530lm or 3400lm (Selectable)
Watts
17W, 22W or 30W
LED346
Ledeshi 450mm Modudisc Black Non-Dim 3000K / 4000K V2
Temp.
3000K or 4000K (Selectable)
Lumens
2000lm, 2530lm or 3400lm (Selectable)
Watts
17W, 22W or 30W
LED346
Ledeshi 450mm Modudisc White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
2000lm, 2530lm or 3400lm (Selectable)
Watts
17W, 22W or 30W
LED346
Ledeshi 450mm Modudisc White Non-dim 3000K / 4000K V2
Temp.
3000K or 4000K (Selectable)
Lumens
2000lm, 2530lm or 3400lm (Selectable)
Watts
17W, 22W or 30W
LED346
Ledeshi 450mm Modudisc White Dali 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3400lm (See Spec Sheet)
Watts
17W, 22W or 30W
Specifications
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
17W, 22W or 30W
Lumens
3400lm (See Spec Sheet)
Beam Angle
90°
Input
240V AC
Dimming / Control
Dali
CRI
90+
Lifespan
72,000hrs (L80 B50)
Ingress Protection
IP20
Diameter
450mm
Height
79mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Material
Aluminium, PMMA (Microprismatic diffuser)
Electrical Class
Class I luminaire, requires earth
Driver
Included, Incorporated
Impact Rating
IK06
