EVO-EN-2385-W34K-DD
EVO-EN-2385
- Custom Build - Request Availability

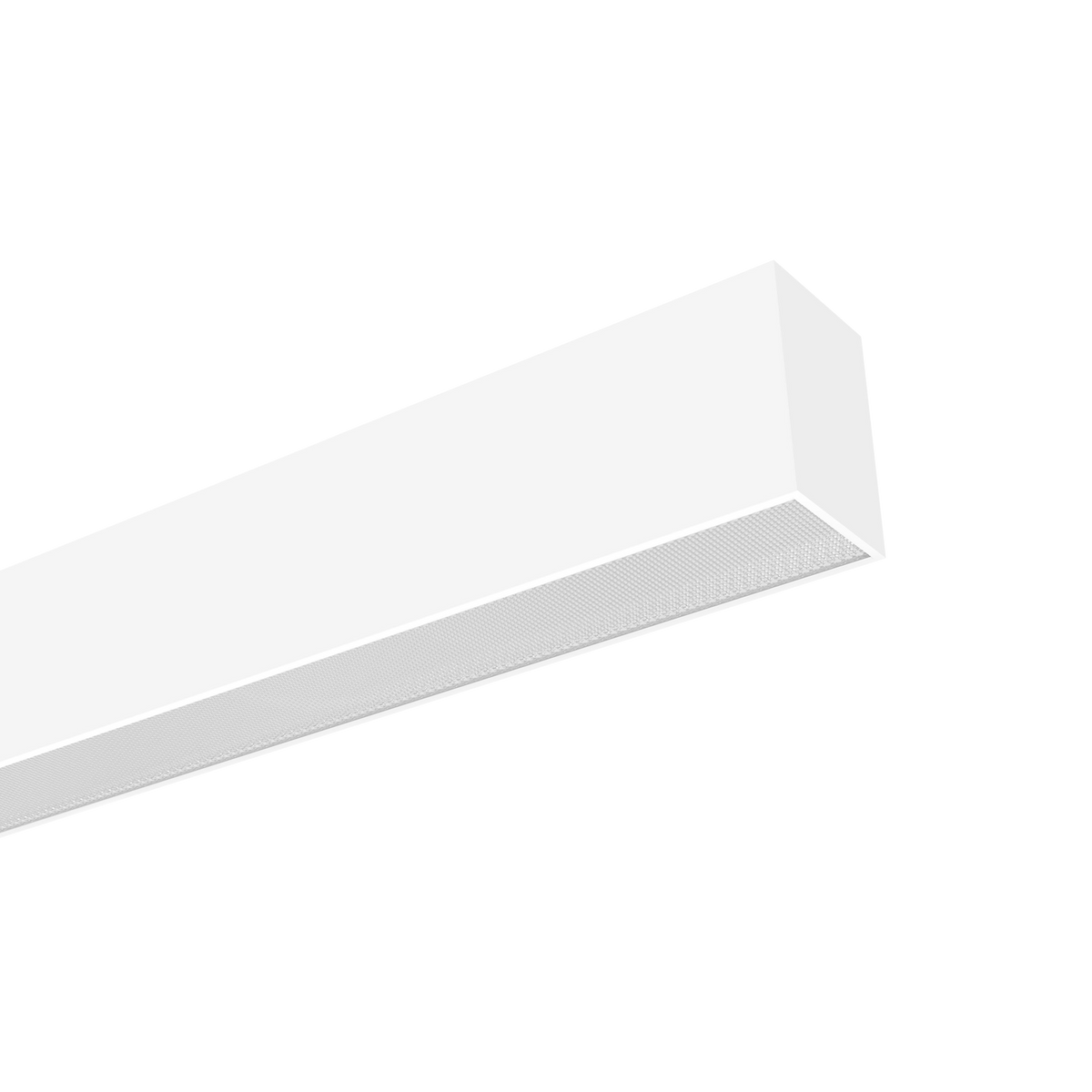

EVO-EN-2385-W34K-DD EVO End 2385mm White
Lumens
Watts
8610lm (See spec sheet)
82W
View Options
-
EVO Ceiling Rose
-
EVO Individual Suspension
-
EVO Ceiling Mount (Pair)
-
EVO 90° L Join White
-
EVO 120° Y Join White
Select Linear Systems
EVO-EN-2385
EVO End 2385mm White
Temp.
3000K or 4000K (Selectable)
Lumens
8610lm (See spec sheet)
Watts
82W
EVO-EN-2385
EVO End 2385mm Black
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
82W
Lumens
8610lm (See spec sheet)
Beam Angle
80° Direct (Down), 100° Indirect (Up)
Input
220-240V 50/60Hz
Dimming / Control
3-in-1: Non-dimmable, Dali or SwitchDIM
CRI
90
Lifespan
102,000hrs (L80 B10)
Height
82mm
Width
58mm
Length
2385mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Material
Aluminium and Micro-prismatic diffuser (Opal diffuser also available)
Electrical Class
Class I luminaire, requires earth
Driver Included / Incorporated
Driver Incorporated
Impact Rating
IK08
Installation Note
Maximum continuous run length for a single power feed is 22m. Use a Middle Start (MST) module to extend continuous run length beyond 22m.
Warranty
5 Year Warranty
