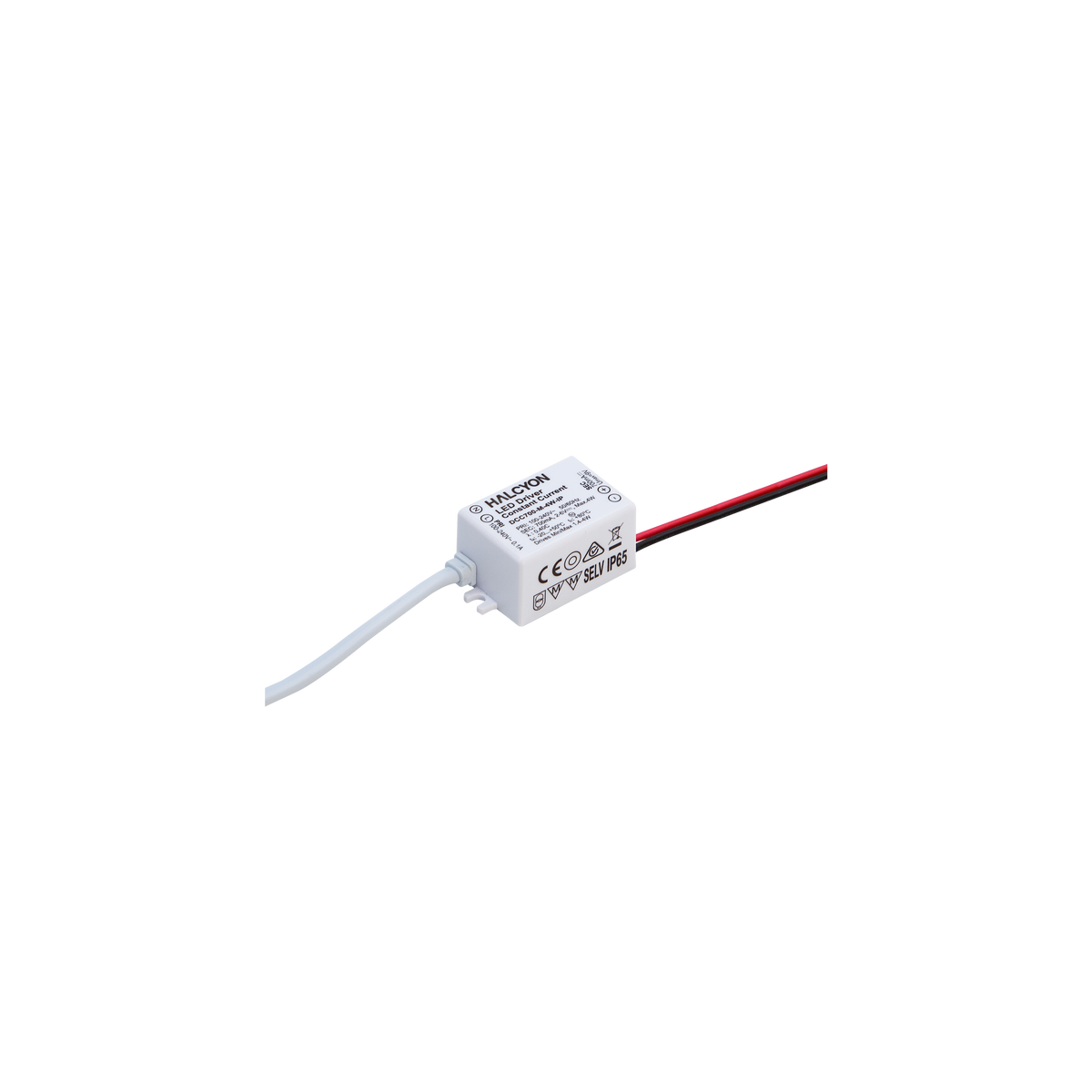

IP65 700mA 4W Constant Current Mini Non-dimmable Driver

DCC700-M-4W-IP

All DCC700-M-4W-IP

DCC700-M-4W-IP

  • Checking stock...
Driver Mini Non-Dimmable Pri:240V Sec:2-6V DC 700mA CC 1.4-4W IP65
Non dimmable
IP65 700mA 4W Constant Current Mini Non-dimmable Driver

DCC700-M-4W-IP IP65 700mA 4W Constant Current Mini Non-dimmable Driver

Watts

1.4W-4W

Watts

1.4W-4W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

IP65 700mA 4W Constant Current Mini Non-dimmable Driver

Non dimmable

DCC700-M-4W-IP

Watts

1.4W-4W

Input

100-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP65

Height

21mm

Width

27mm

Length

38mm

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

2-6V

Driver Output Current

700mA

Ambient Operating Temperature

-20..+50°C

Power Factor

0.40C

Installation Note

Suitable for Installation Under Insulation

Warranty

5 Year Warranty
