EVO-EN-705-B34K-DD
EVO-EN-705
- Custom Build - Request Availability

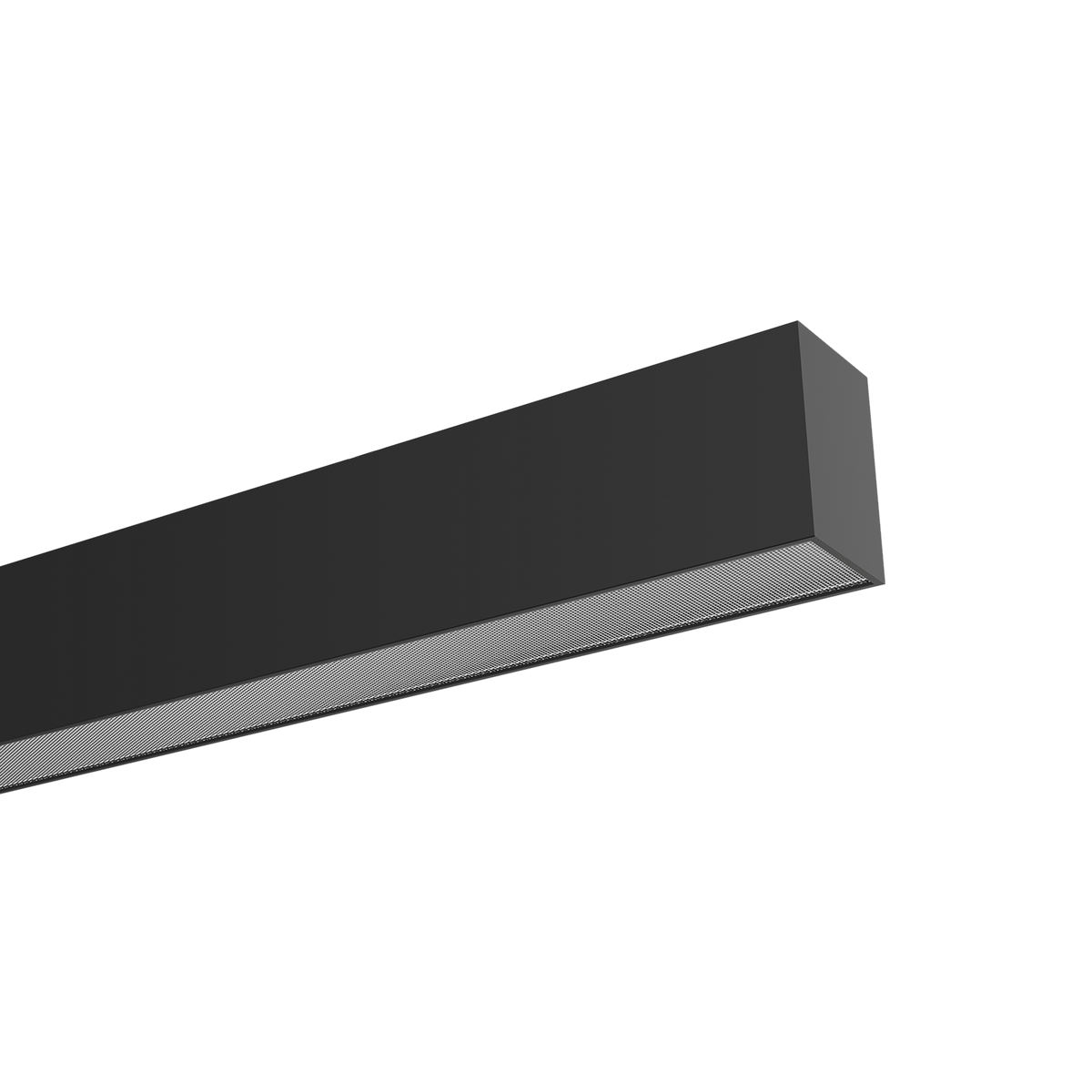

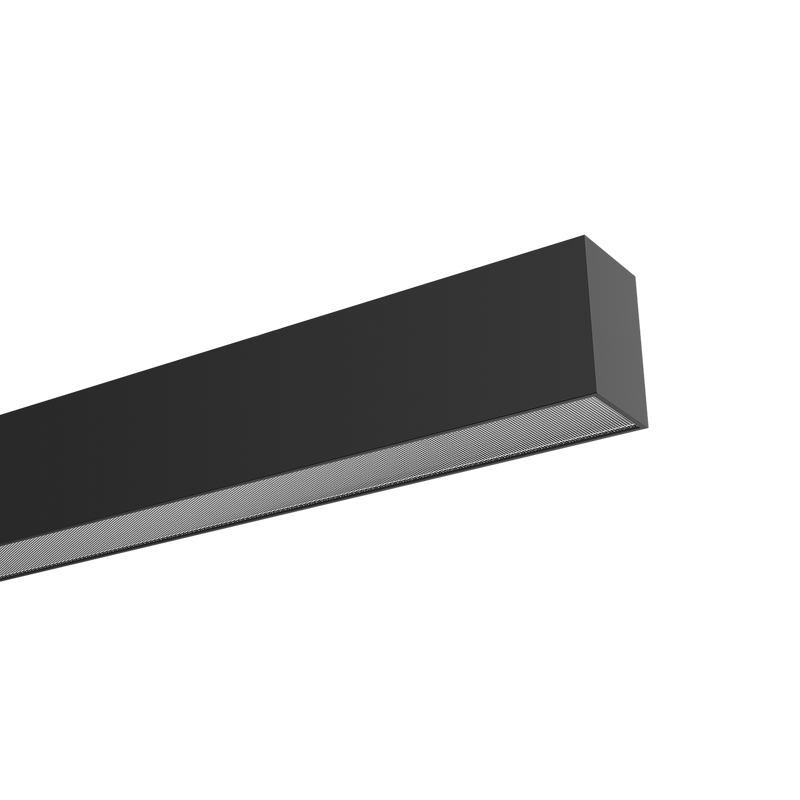

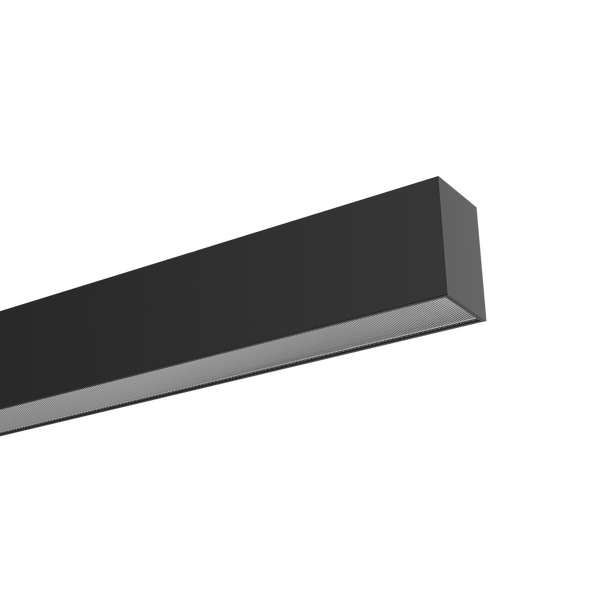

EVO-EN-705-B34K-DD EVO End 705mm Black
Lumens
Watts
2415lm (See spec sheet)
23W
View Options
-
EVO Ceiling Rose
-
EVO Individual Suspension
-
EVO Ceiling Mount (Pair)
-
EVO 90° L Join Black
-
EVO 120° Y Join Black
Select Linear Systems
EVO-EN-705
EVO End 705mm Black
Temp.
3000K or 4000K (Selectable)
Lumens
2415lm (See spec sheet)
Watts
23W
EVO-EN-705

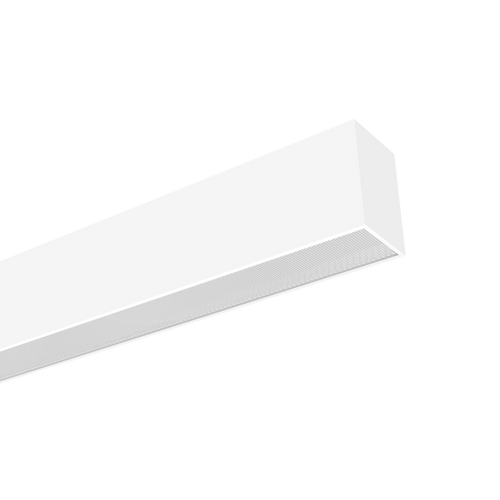

EVO End 705mm White
Temp.
3000K or 4000K (Selectable)
Lumens
2415lm (See spec sheet)
Watts
23W
Specifications
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
23W
Lumens
2415lm (See spec sheet)
Beam Angle
80° Direct (Down), 100° Indirect (Up)
Input
220-240V 50/60Hz
CRI
90
Lifespan
102,000hrs (L80 B10)
Width
58mm
Length
705mm
Binning
SDCM 3
Electrical Class
Class I luminaire, requires earth
Driver Included / Incorporated
Driver Incorporated
Impact Rating
IK08
Installation Note
Maximum continuous run length for a single power feed is 22m. Use a Middle Start (MST) module to extend continuous run length beyond 22m.
