R603
- Checking stock...
Configure your R603 4 options
- White (selected)
- Black

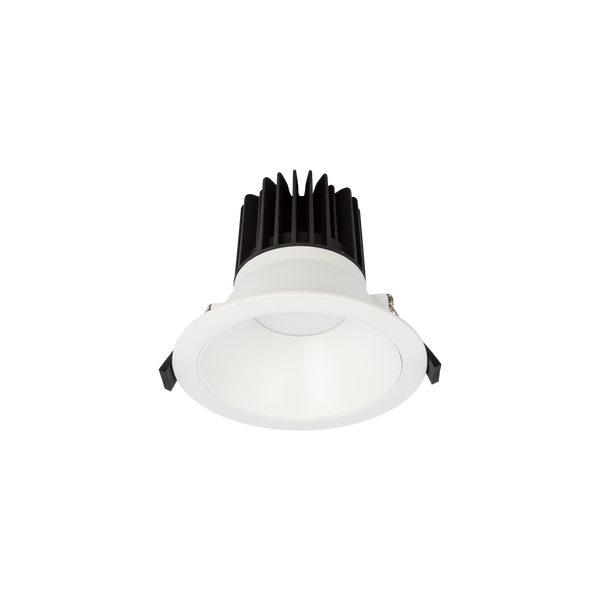

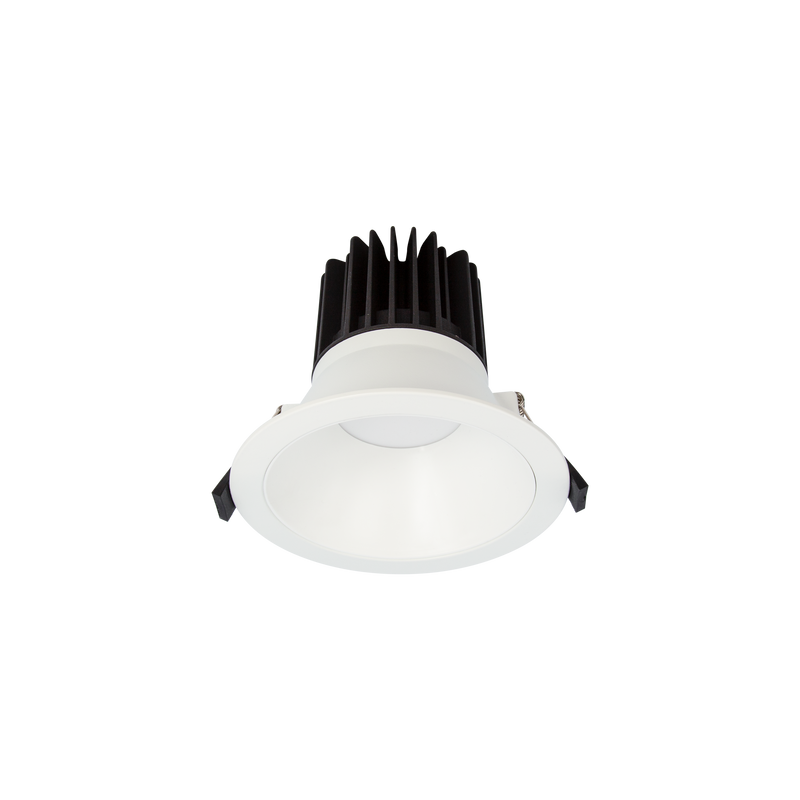

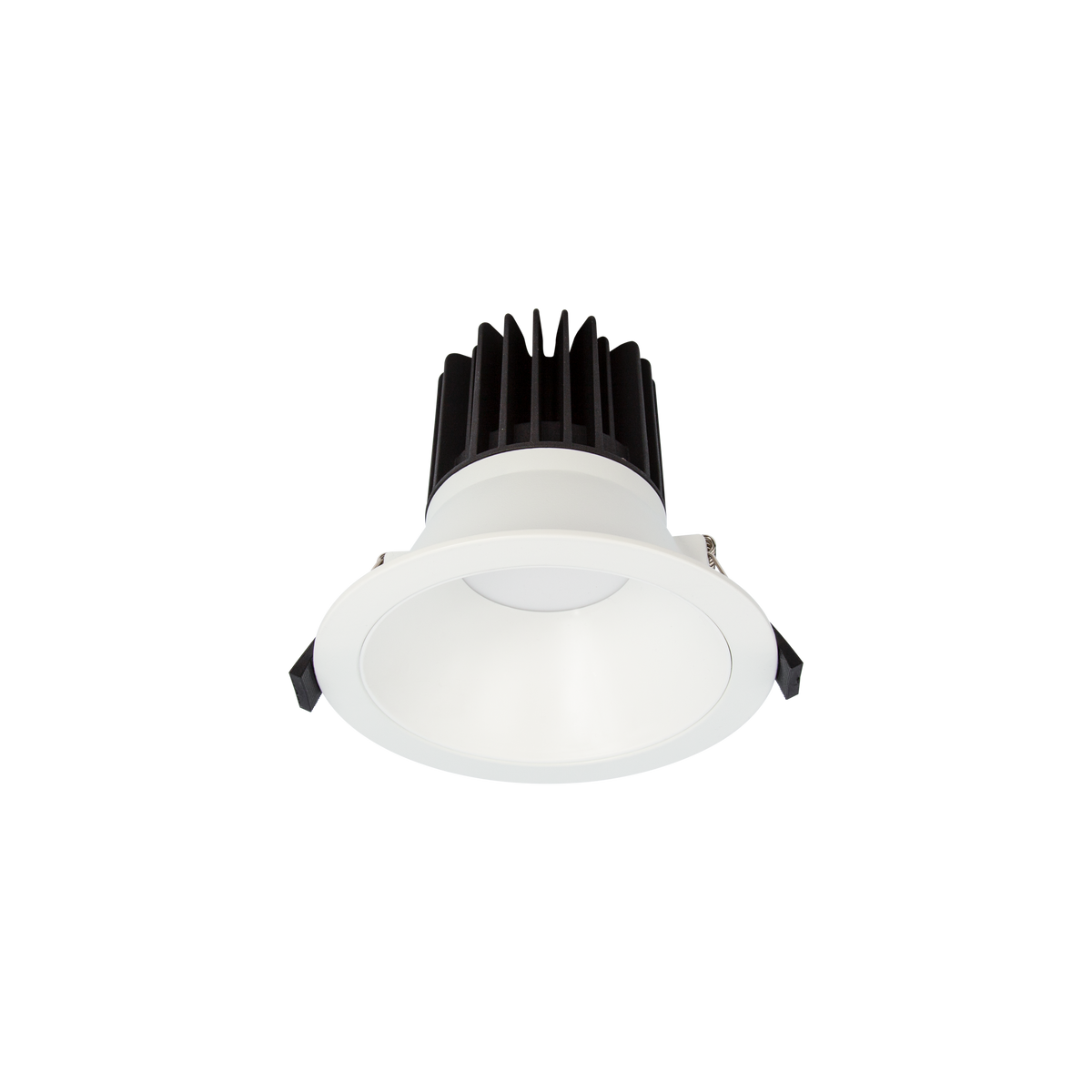

R603 W3KA Design Standard Large Downlight Kit - Quad Wattage Wide Beam White 3K
Lumens
Watts
870lm, 1150lm, 1380lm or 1800lm (Selectable)
8.5W, 11W, 14W or 18.5W
Select Downlights
Design Standard Large Downlight Kit - Quad Wattage Wide Beam White 3K
Temp.
3000K Warm White
Cut out
130-140mm
Lumens
870lm, 1150lm, 1380lm or 1800lm (Selectable)
Watts
8.5W, 11W, 14W or 18.5W

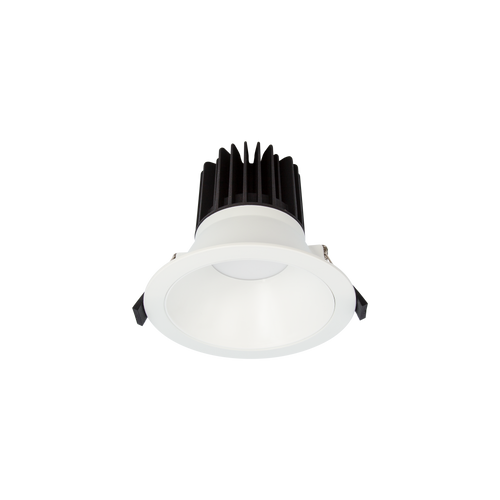

Design Standard Large Downlight Kit - Quad Wattage Wide Beam White 4K
Temp.
4000K Natural White
Cut out
130-140mm
Lumens
880lm, 1170lm, 1400lm or 1900lm (Selectable)
Watts
8.5W, 11W, 14W or 18.5W
Design Standard Large Downlight Kit - Quad Wattage Wide Beam Black 3K
Temp.
3000K Warm White
Cut out
130-140mm
Lumens
530lm, 715lm, 910lm or 1150lm (Selectable)
Watts
8.5W, 11W, 14.5W or 19W

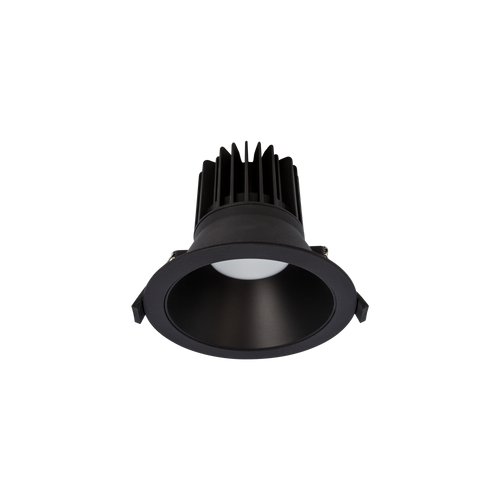

Design Standard Large Downlight Kit - Quad Wattage Wide Beam Black 4K
Temp.
4000K Natural White
Cut out
130-140mm
Lumens
540lm, 725lm, 930lm or 1175lm (Selectable)
Watts
8.5W, 11W, 14.5W or 19W
Specifications
R603 W3KA
Cut Out
130-140mm
Finish
White
Colour Temp
3000K Warm White
Watts
8.5W, 11W, 14W or 18.5W
Lumens
870lm, 1150lm, 1380lm or 1800lm (Selectable)
Beam Angle
90°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
102,000hrs (L80 B10)
Ingress Protection
IP54
Diameter
150mm
Height
130mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
None
