DCC700-DM-4W-IP
DCC700-DM-4W-IP
- Checking stock...
Driver Mini Dimmable Pri:240V Sec:2.5-6V DC 700mA CC 2-4W IP65
Dimmable (phase-cut)

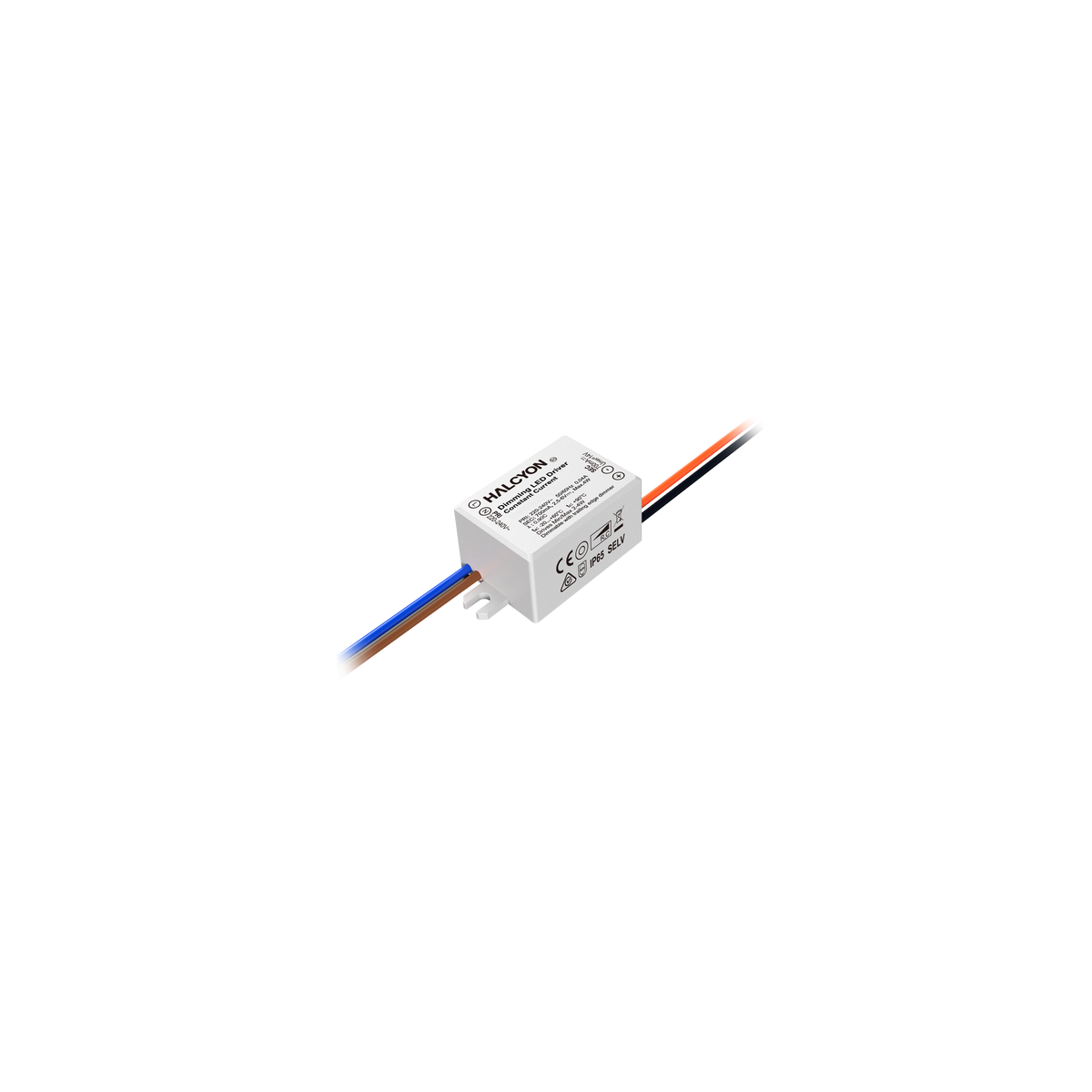

DCC700-DM-4W-IP IP65 700mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
Watts
2W-4W
-
Go-Link Mousetrap Loop-in Loop-out
Specifications
Watts
2W-4W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP65
Height
20mm
Width
30mm
Length
48mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
2.5-6V DC
Driver Output Current
700mA
Ambient Operating Temperature
-20..+60°C
Power Factor
0.90C
Installation Note
Suitable for Installation Under Insulation
Warranty
5 Year Warranty
