DCC700-DM-10W-IP
DCC700-DM-10W-IP
- Checking stock...
Driver Mini Dimmable Pri:240V Sec:7-15V DC 700mA CC 5-10W IP65
Dimmable (phase-cut)

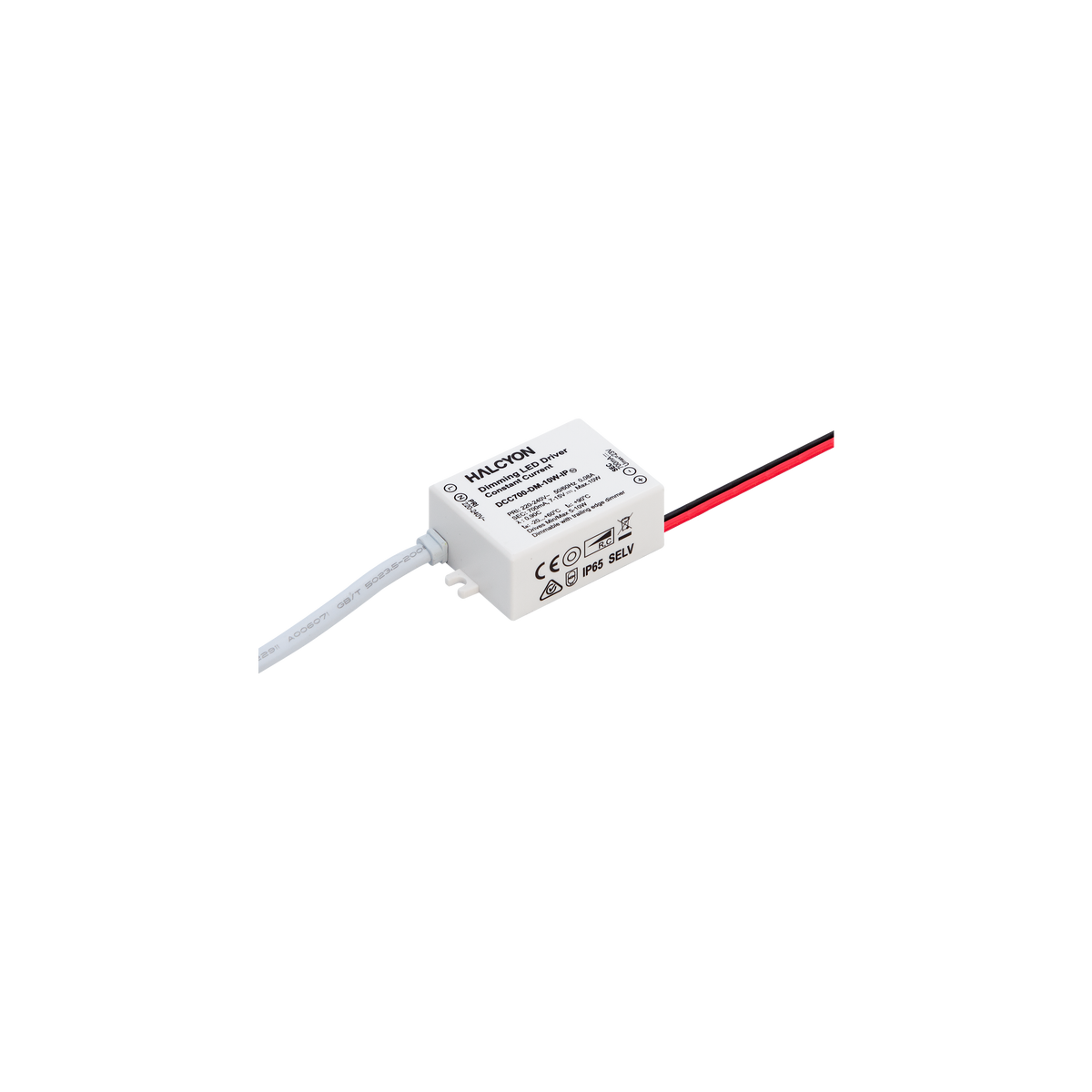

DCC700-DM-10W-IP IP65 700mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
Watts
5W-10W
-
Go-Link Mousetrap Loop-in Loop-out
Specifications
Watts
5W-10W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP65
Height
20mm
Width
36mm
Length
58mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
7-15V DC
Driver Output Current
700mA
Ambient Operating Temperature
-20..+60°C
Power Factor
0.90C
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
