LED345
- Custom Build - Request Availability
Configure your LED345 6 options
- Black (selected)
- White — not available in this configuration

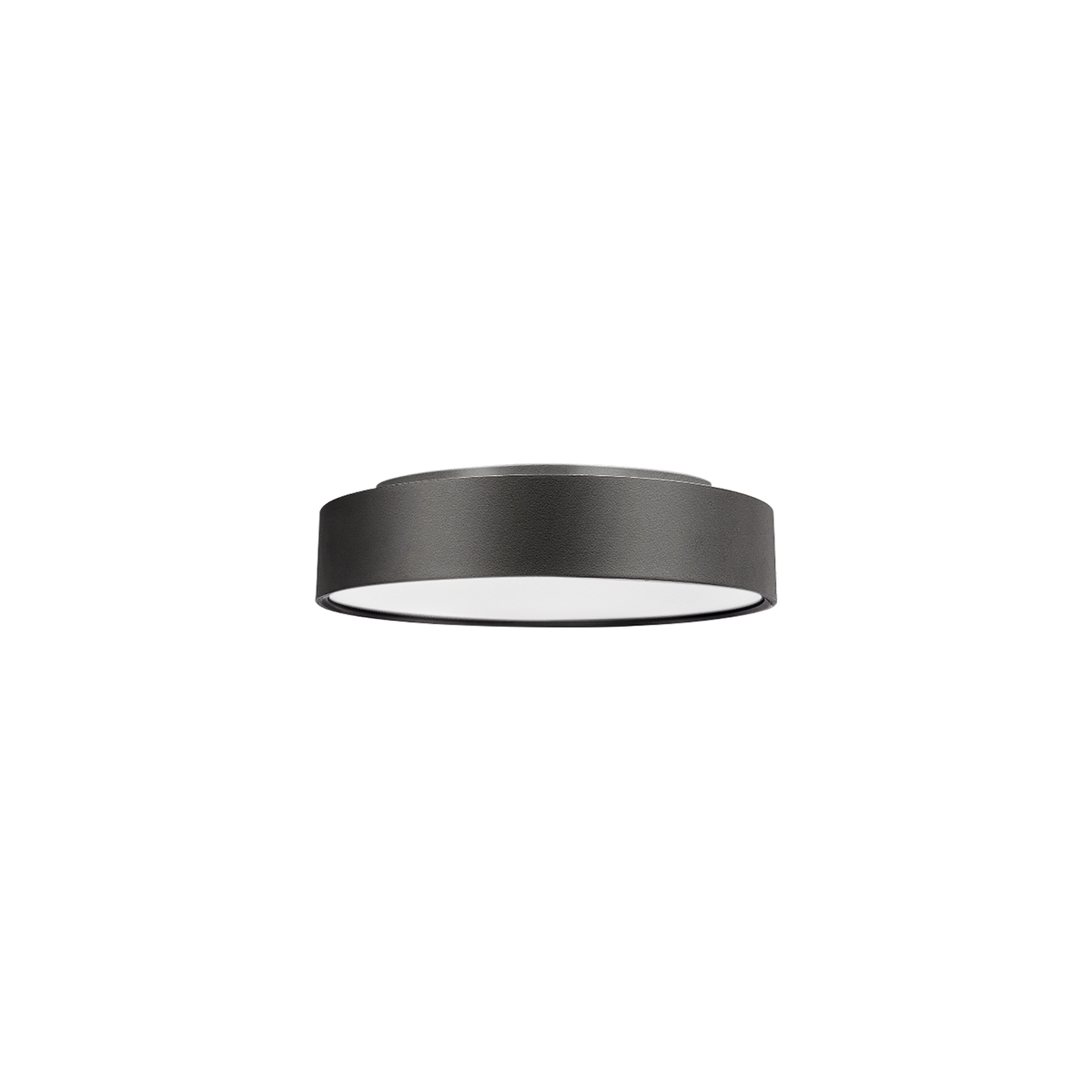

LED345-B34KV2-DD Ledeshi 320mm Modudisc Black Dali 3000K / 4000K
Lumens
Watts
2230lm (See Spec Sheet)
10W, 18W or 24W
-
LED345 & LED346 Cable Suspension Kit Black
-
Rod Suspension Kit Black
Select Buttons
LED345
Ledeshi 320mm Modudisc Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
970lm, 1740lm or 2230lm (Selectable)
Watts
10W, 18W or 24W
LED345
Ledeshi 320mm Modudisc Black Non-dim 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
970lm, 1740lm or 2230lm (Selectable)
Watts
10W, 18W or 24W
LED345
Ledeshi 320mm Modudisc Black Dali 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
2230lm (See Spec Sheet)
Watts
10W, 18W or 24W
LED345
Ledeshi 320mm Modudisc White Phase-cut Dimmable 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
970lm, 1740lm or 2230lm (Selectable)
Watts
10W, 18W or 24W
LED345
Ledeshi 320mm Modudisc White Non-dim 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
970lm, 1740lm or 2230lm (Selectable)
Watts
10W, 18W or 24W
LED345
Ledeshi 320mm Modudisc White Dali 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
2230lm (See Spec Sheet)
Watts
10W, 18W or 24W
Specifications
LED345-B34KV2-DD
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
10W, 18W or 24W
Lumens
2230lm (See Spec Sheet)
Beam Angle
90°
Input
240V AC
Dimming / Control
Dali
CRI
90+
Lifespan
72,000hrs (L80 B50)
Ingress Protection
IP20
Diameter
320mm
Height
79mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Material
Aluminium, PMMA (Microprismatic diffuser)
Electrical Class
Class I luminaire, requires earth
Driver
Included, Incorporated
Impact Rating
IK06
