R730-XB3KV2
R730
- Checking stock...

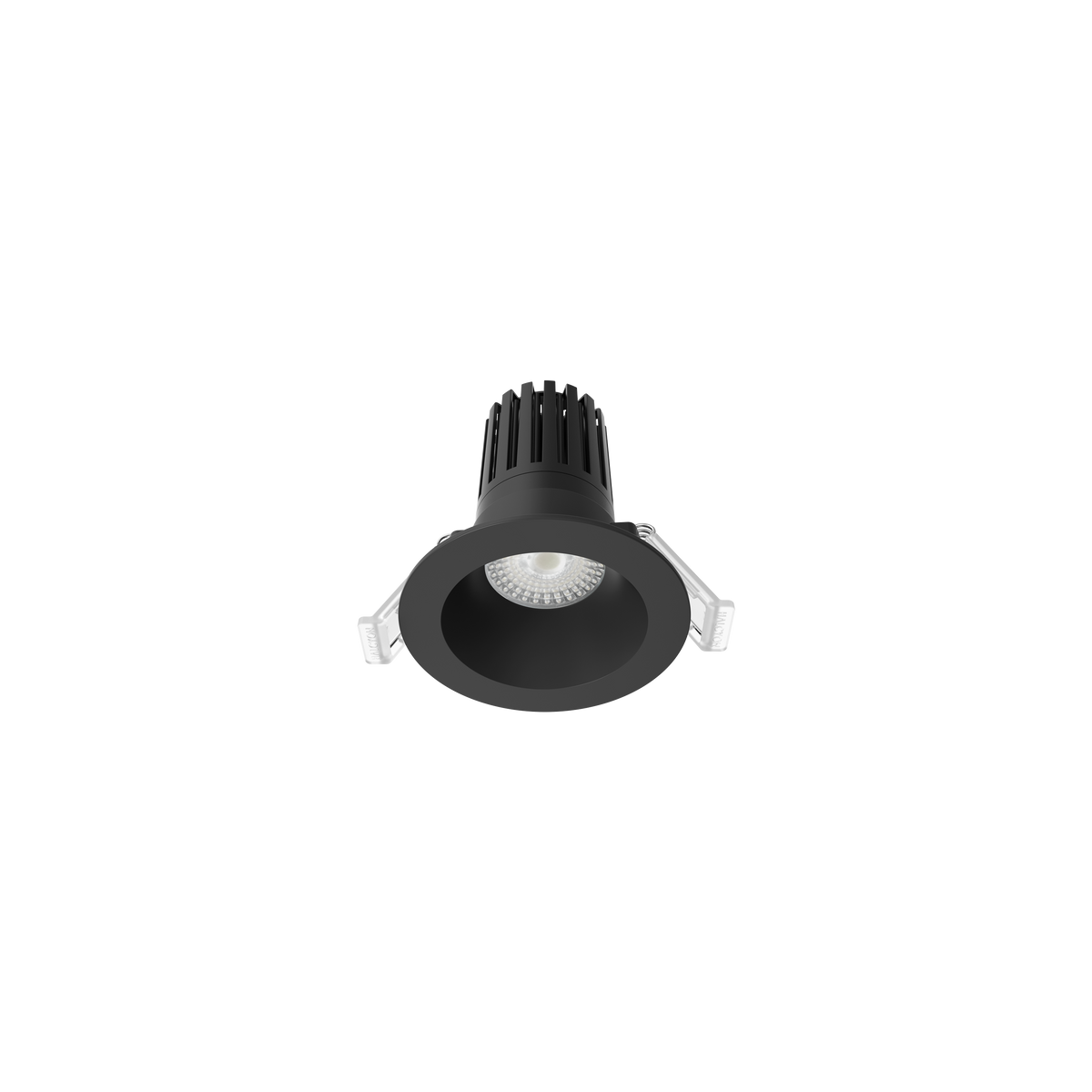

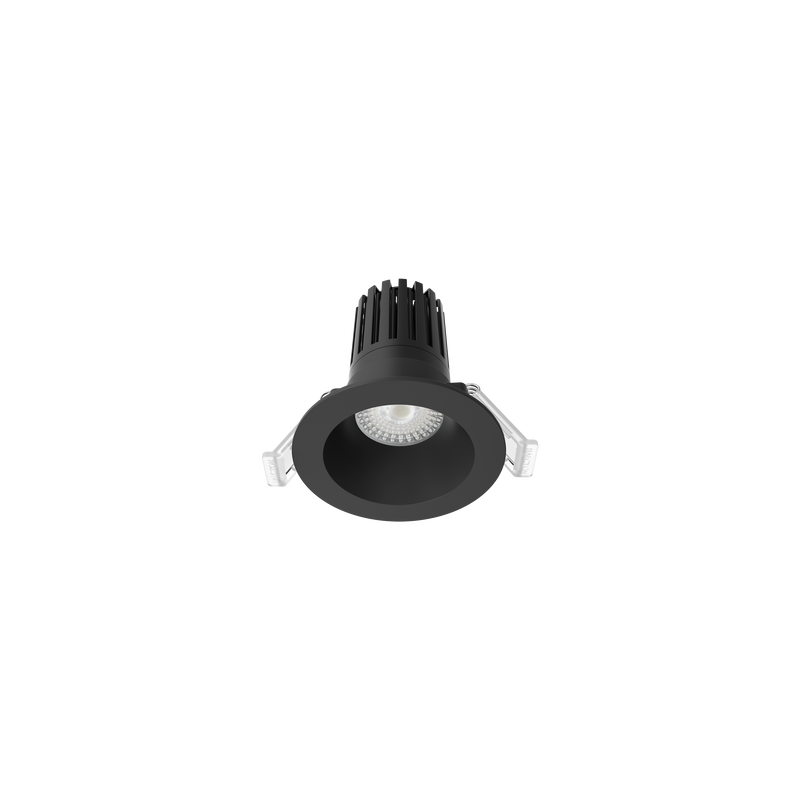

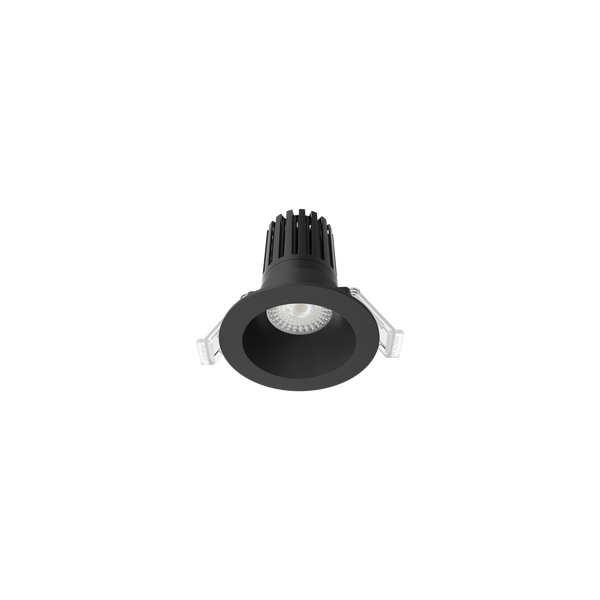

R730-XB3KV2 Exterior Design Standard Downlight Kit Black
Lumens
Watts
830lm
9.5W
View Options
DCC230-DX-9W
Watts
4.6W-9W
Watts
4.6W-9W
Select Downlights
R730
Exterior Design Standard Downlight Kit Black
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
830lm
Watts
9.5W
R730
Exterior Design Standard Downlight Kit Copper 3000K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
770lm
Watts
9.5W
R730
Exterior Design Standard Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
840lm
Watts
9.5W
R730
Exterior Design Standard Downlight Kit Brushed 316 Stainless Steel 3K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
770lm
Watts
9.5W
Specifications
Cut Out
72-82mm
Finish
Black
Colour Temp
3000K Warm White
Watts
9.5W
Lumens
830lm
Beam Angle
50°
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP65 (front face only)
Diameter
93mm
Height
105mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
316 Stainless Steel
Electrical Class
Class II
Driver Output Current
230mA
Driver
Included, Remote
Ambient Operating Temperature
-20°...+40°C
Power Factor
0.90
Warranty
5 Year Warranty
Driver
230mA 9W Dimmable Constant Current DX Series Driver
Watts
4.6W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Finish
Black
Height
28mm
Width
45mm
Length
120mm
