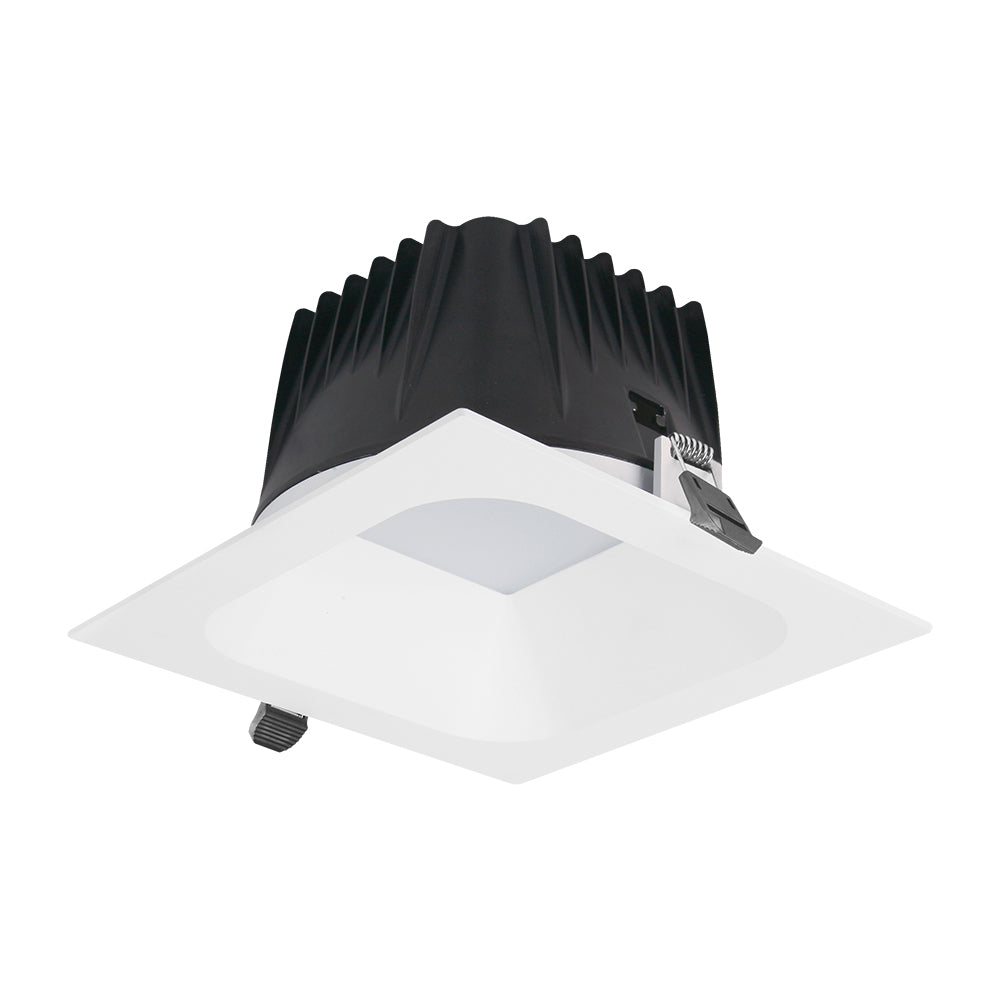

R743-W34K Square Commercial Large Downlight 3000K/4000K White
Lumens
Watts
<3290lm (See spec sheet)
23W
Lumens
Watts
<3290lm (See spec sheet)
23W
Add Driver
driver not included
View Options
Select driver
driver sold separately. Please select below.
Dimmable
DCC700-DX-30W
700mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W

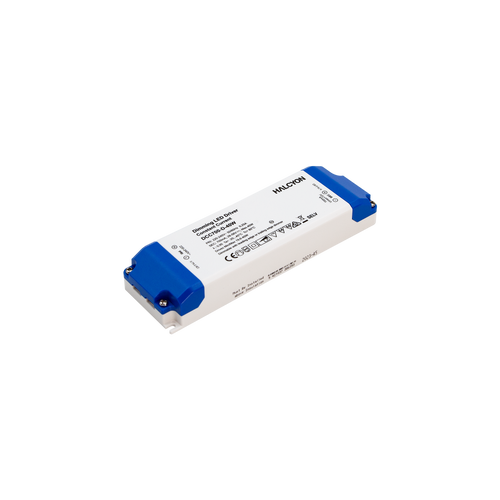

DCC700-D-40W
700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Non Dimmable

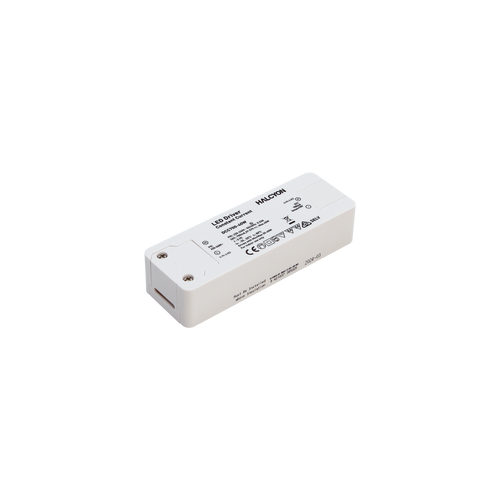

DCC700-40W
700mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Specifications
Cut Out
200mm
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
23W
Lumens
<3290lm (See spec sheet)
Beam Angle
70°
Dimming / Control
Dimmable
CRI
90
Lifespan
102,000hrs (L80 B10)
Ingress Protection
IP54 (Room Side)
Height
120mm
Width
212mm
Length
212mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
25mm
Side Clearance to Building Elements
25mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
700mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Driver
None
