R904
- Checking stock...
Configure your R904 3 options

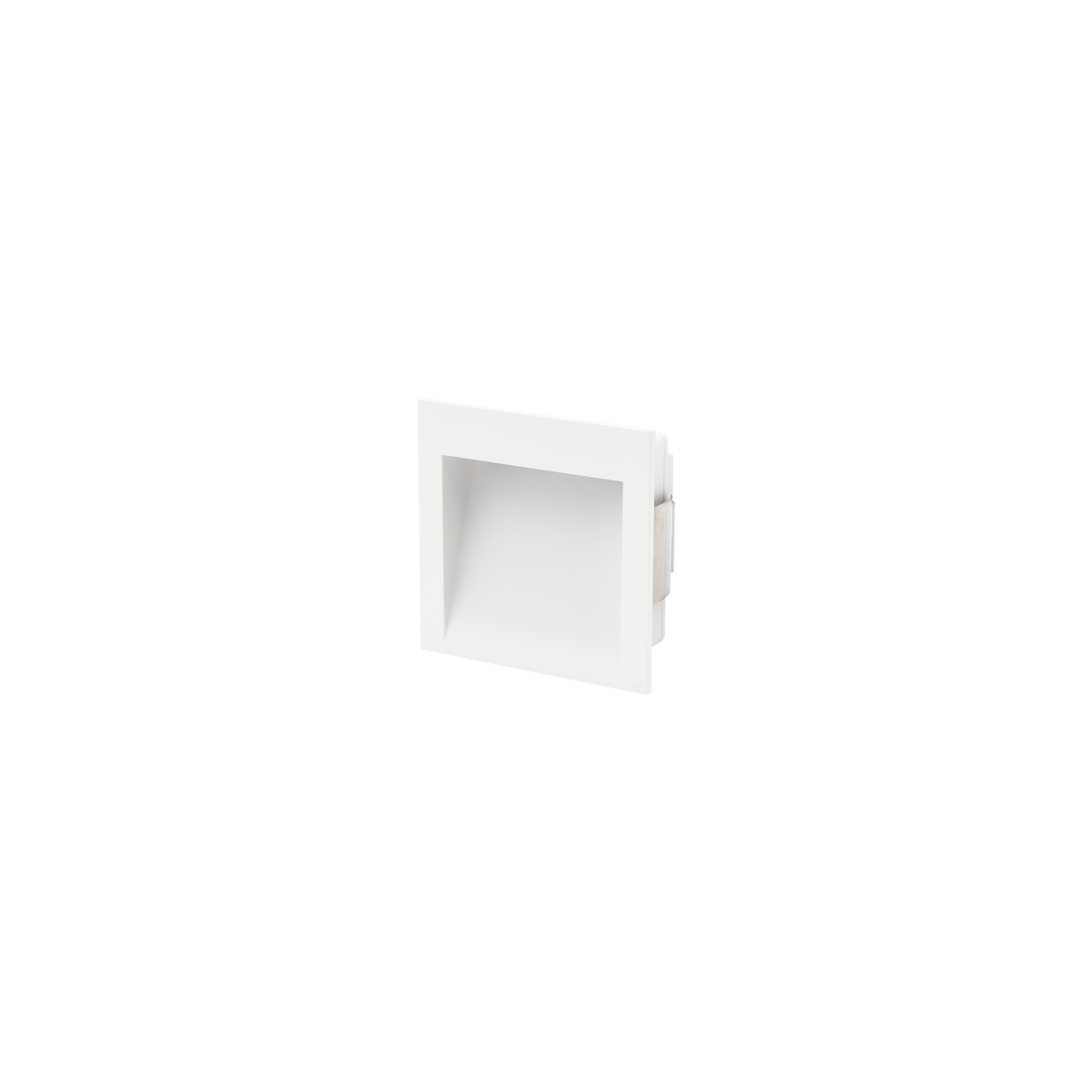

R904-W34-DC Designline Square Textured White 3000K / 4000K
Lumens
Watts
110lm
2.1W
Not included
Please select from options
-
Concrete installation housing for R902/R904
Select Wall
Designline Square Textured White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
See Specification Sheet
Lumens
110lm
Watts
2.1W

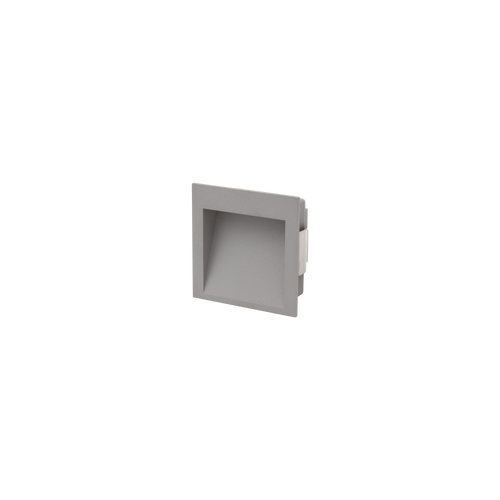

Designline Square Silver 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
See Specification Sheet
Lumens
110lm
Watts
2.1W

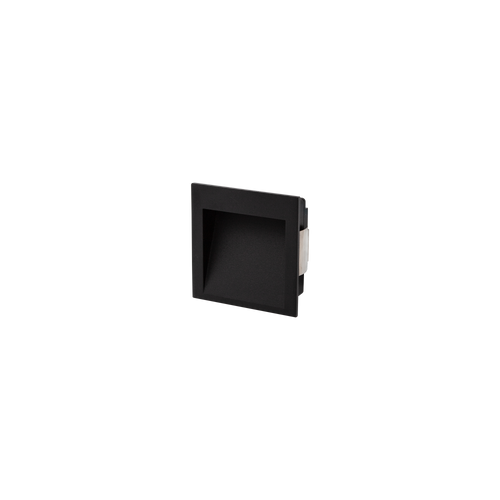

Designline Square Textured Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
See Specification Sheet
Lumens
110lm
Watts
2.1W
Select driver
driver sold separately. Please select below.
Dimmable
DCC700-DM-4W-IP
IP65 700mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
DCC700-DM-10W-IP
IP65 700mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC700-DX-12W
700mA 12W Dimmable Constant Current DX Series Driver
Watts
7W-12W
DCC700-DX-20W
700mA 20W Dimmable Constant Current DX Series Driver
Watts
10.5W-20W
DCC700-DX-30W
700mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Non Dimmable
DCC700-M-4W-IP
IP65 700mA 4W Constant Current Mini Non-dimmable Driver
Watts
1.4W-4W
DCC700-M-12W-IP
IP65 700mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
DCC700-12W
700mA 12W Constant Current Non-dimmable Driver
Watts
1.5W-12W
DCC700-21W
700mA 21W Constant Current Non-dimmable Driver
Watts
1.5W-21W
Specifications
R904-W34-DC
Cut Out
See Specification Sheet
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
2.1W
Lumens
110lm
Beam Angle
80°
Input
700mA DC
Dimming / Control
Dimmable
CRI
90
Lifespan
60,000hrs (L80 B20)
Ingress Protection
IP65
Height
31mm
Width
80mm
Length
80mm
Binning
SDCM 3
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
700mA
Driver
Not included, Driver sold separately
Installation Note
Can be run at 350mA/45lm or 500mA/65lm
Warranty
5 Year Warranty
