R741
Downlight LED Recessed Square Small c/w UID Dimmable Driver 9W 200mA CC 3K/4K White - V3
- Checking stock...
Configure your R741

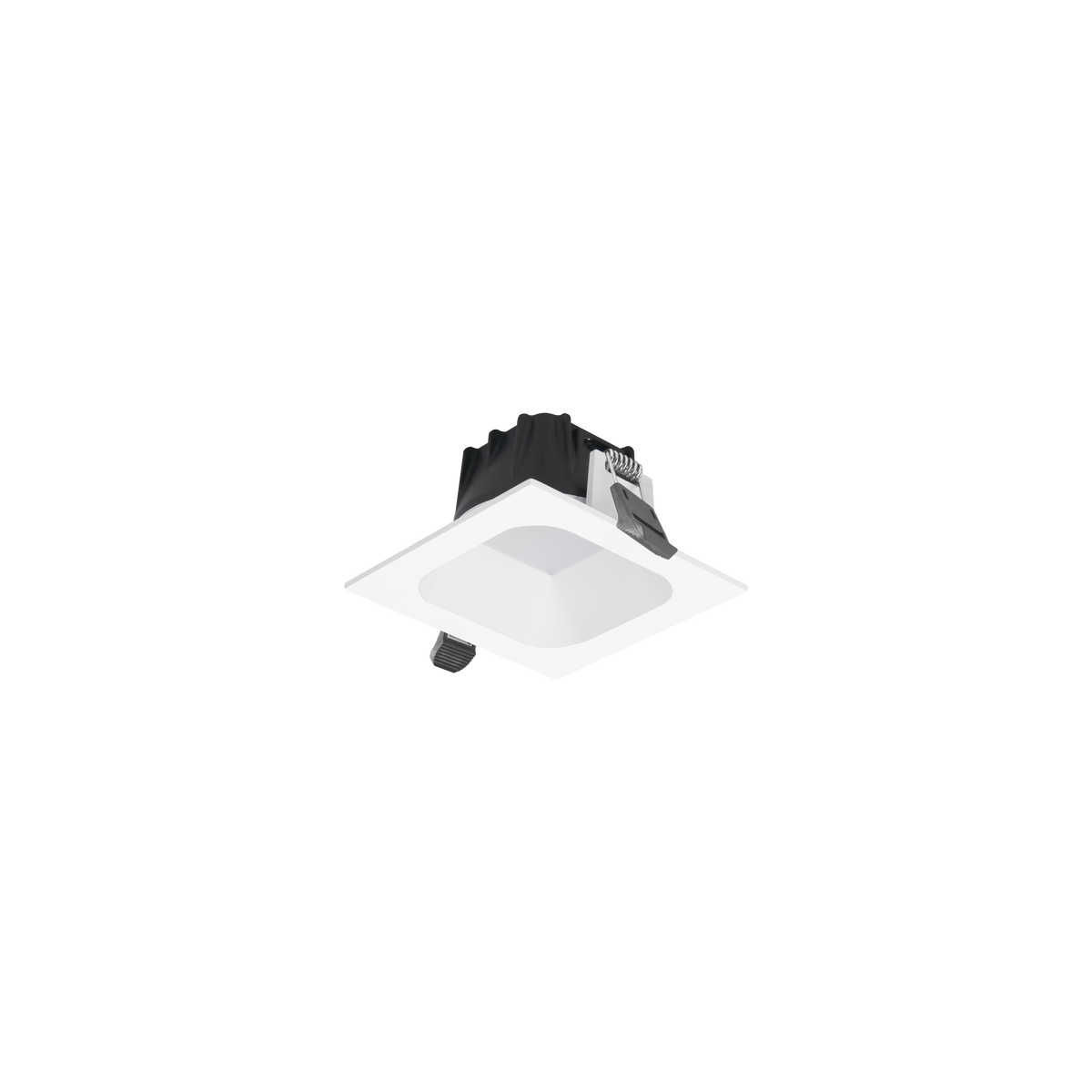

R741-W34K-D Square Commercial Small Downlight Kit 3000K/4000K White
Lumens
Watts
920lm
9W
Lumens
Watts
920lm
9W
DCC200A-DX-9W-GL 200mA 9W Phase-cut Dimmable Constant Current Driver - Go Link Adaptor
Watts
4.2-8.4W
Watts
4.2-8.4W
Specifications
R741-W34K-D
Cut Out
90mm
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
9W
Lumens
920lm
Beam Angle
75°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
102,000hrs (L80 B10)
Ingress Protection
IP54 (Room Side)
Height
52mm
Width
100mm
Length
100mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC200A-DX-9W-GL
Watts
4.2-8.4W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
28mm
Width
44mm
Length
156mm
Classification
Suitable for Installation Under Insulation
Material
PC
