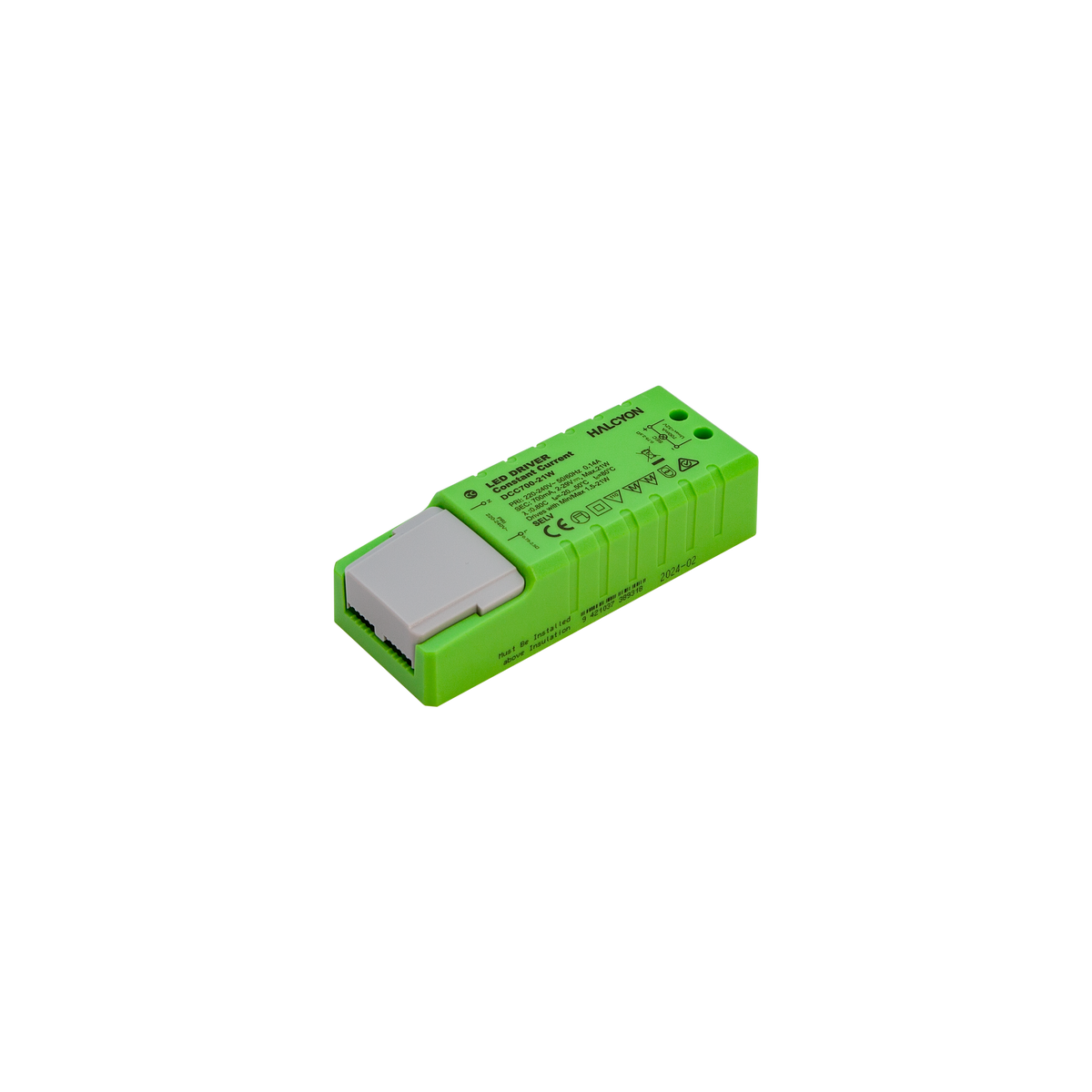

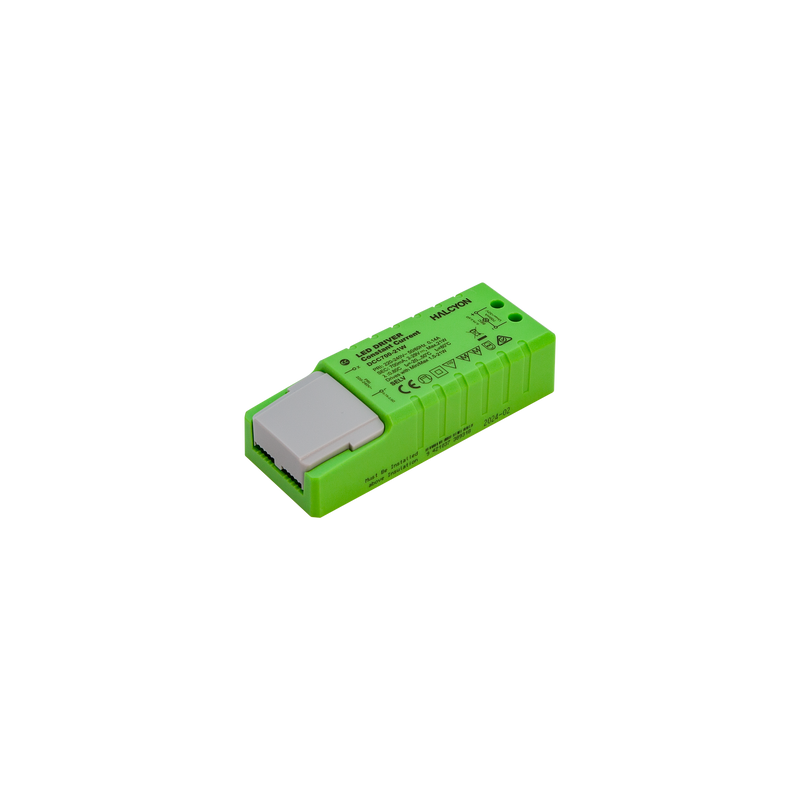

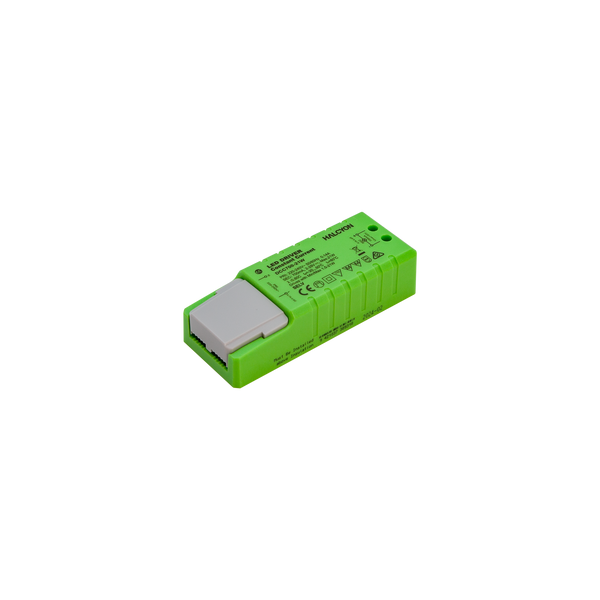

700mA 21W Constant Current Non-dimmable Driver

DCC700-21W

All DCC700-21W

DCC700-21W

  • Checking stock...
Driver Non-Dimmable Pri:240V Sec:2-29V DC 700mA CC 1.5-21W
Non dimmable
700mA 21W Constant Current Non-dimmable Driver

DCC700-21W 700mA 21W Constant Current Non-dimmable Driver

Watts

1.5W-21W

Watts

1.5W-21W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

700mA 21W Constant Current Non-dimmable Driver

Non dimmable

DCC700-21W

Watts

1.5W-21W

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP20

Height

28mm

Width

44mm

Length

113mm

Electrical Class

Class II

Driver Output Voltage

2-29V

Driver Output Current

700mA

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
