DCC350A-DX-15W-GL
DCC350A-DX-15W-GL
- Custom Build - Request Availability
Driver DX Series Phase-Cut Dimmable DX UID Pri:240V Sec:21-42V DC Preset 350mA CC 15W c/w Go link adapter
Dimmable (phase-cut)

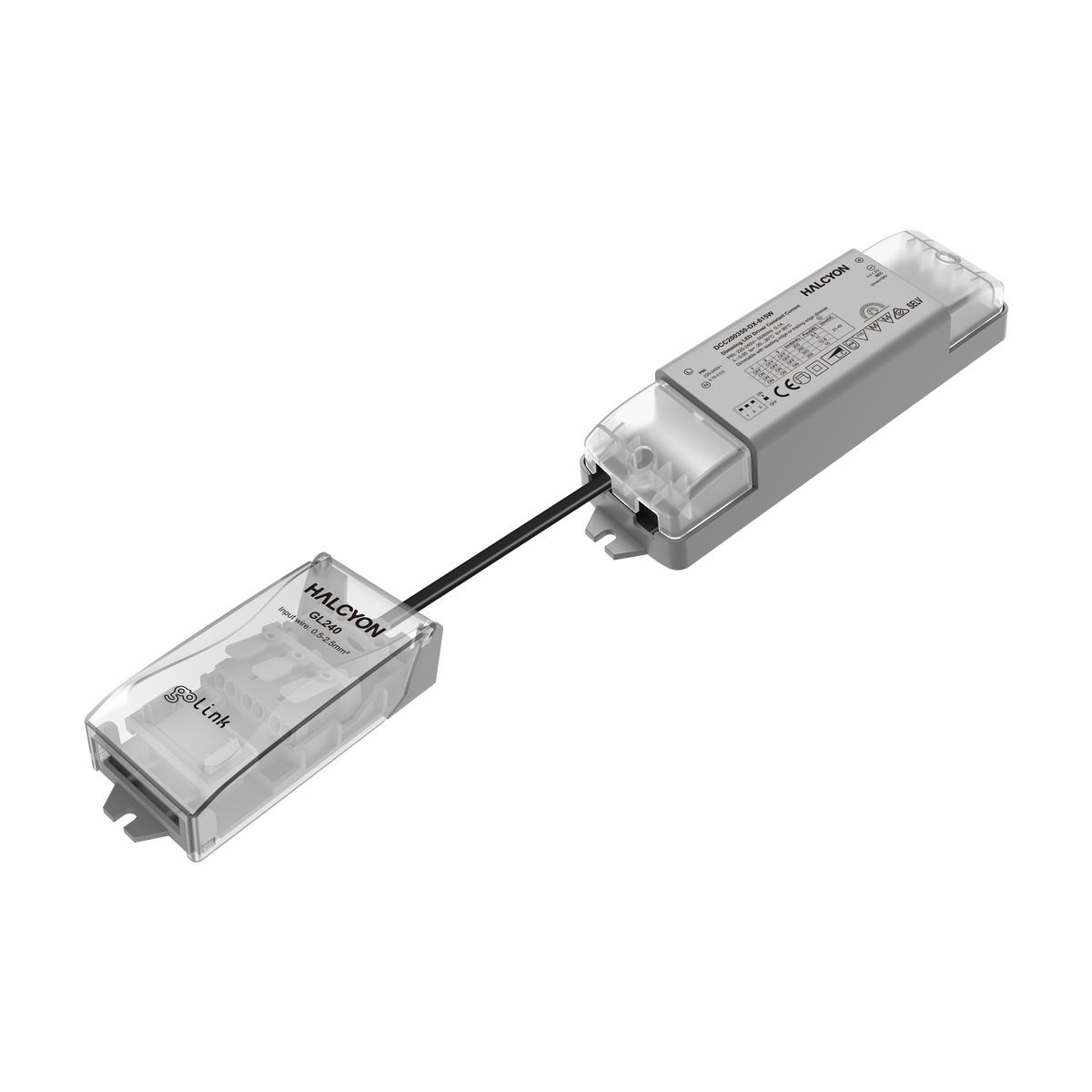

DCC350A-DX-15W-GL 350mA 15W Phase-cut Dimmable Constant Current Driver - Go Link Adaptor
Watts
7.5-15W
Watts
7.5-15W
Specifications
Watts
7.5-15W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
28mm
Width
44mm
Length
156mm
Material
PC
Electrical Class
Class II
Driver Output Voltage
21-42V
Driver Output Current
350mA
Ambient Operating Temperature
-20..+25°C
Installation Note
Suitable for Installation Under Insulation
Warranty
5 Year Warranty
