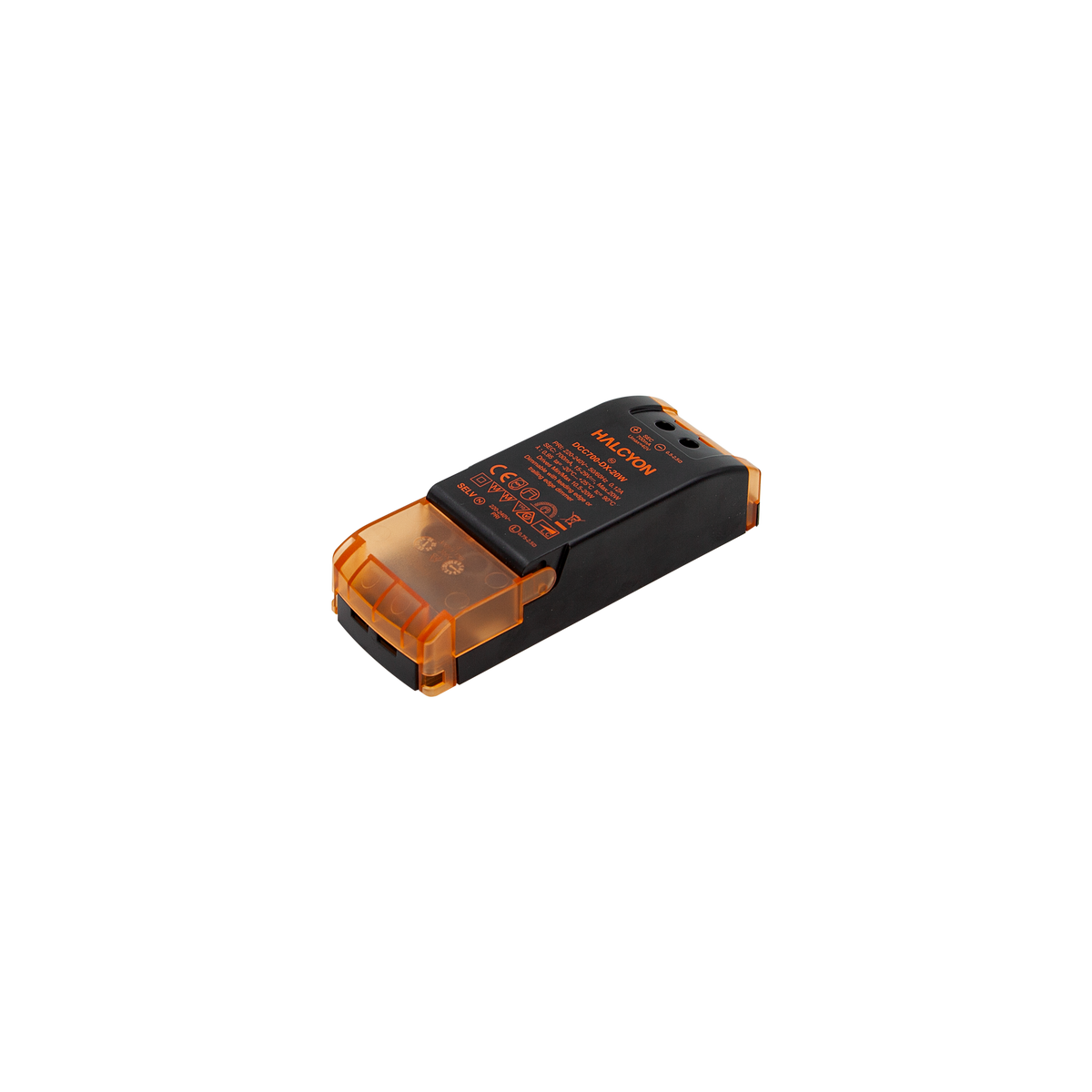

700mA 20W Dimmable Constant Current DX Series Driver

DCC700-DX-20W

All DCC700-DX-20W

DCC700-DX-20W

  • Checking stock...
Driver DX Series Phase-Cut Dimmable UID Pri:240V Sec:15-29V DC 700mA CC 10.5-20W
Dimmable (phase-cut)
700mA 20W Dimmable Constant Current DX Series Driver

DCC700-DX-20W 700mA 20W Dimmable Constant Current DX Series Driver

Watts

10.5W-20W

Watts

10.5W-20W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

700mA 20W Dimmable Constant Current DX Series Driver

Dimmable (phase-cut)

DCC700-DX-20W

Watts

10.5W-20W

Input

220-240V 50/60Hz

Dimming / Control

Dimmable

Ingress Protection

IP20

Height

28mm

Width

45mm

Length

120mm

TLAs

"Flicker-free", PstLM ≤1.0; SVM ≤0.4

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

15-29V

Driver Output Current

700mA

Ambient Operating Temperature

-20..+25°C

Power Factor

0.95

Installation Note

Suitable for Installation Under Insulation

Warranty

5 Year Warranty
