DCC200A-DX-9W-GL
DCC200A-DX-9W-GL
- Checking stock...
Driver DX Series Phase-Cut Dimmable DX UID Pri:240V Sec:21-42V DC Preset 200mA CC 9W c/w Go link adapter
Dimmable (phase-cut)

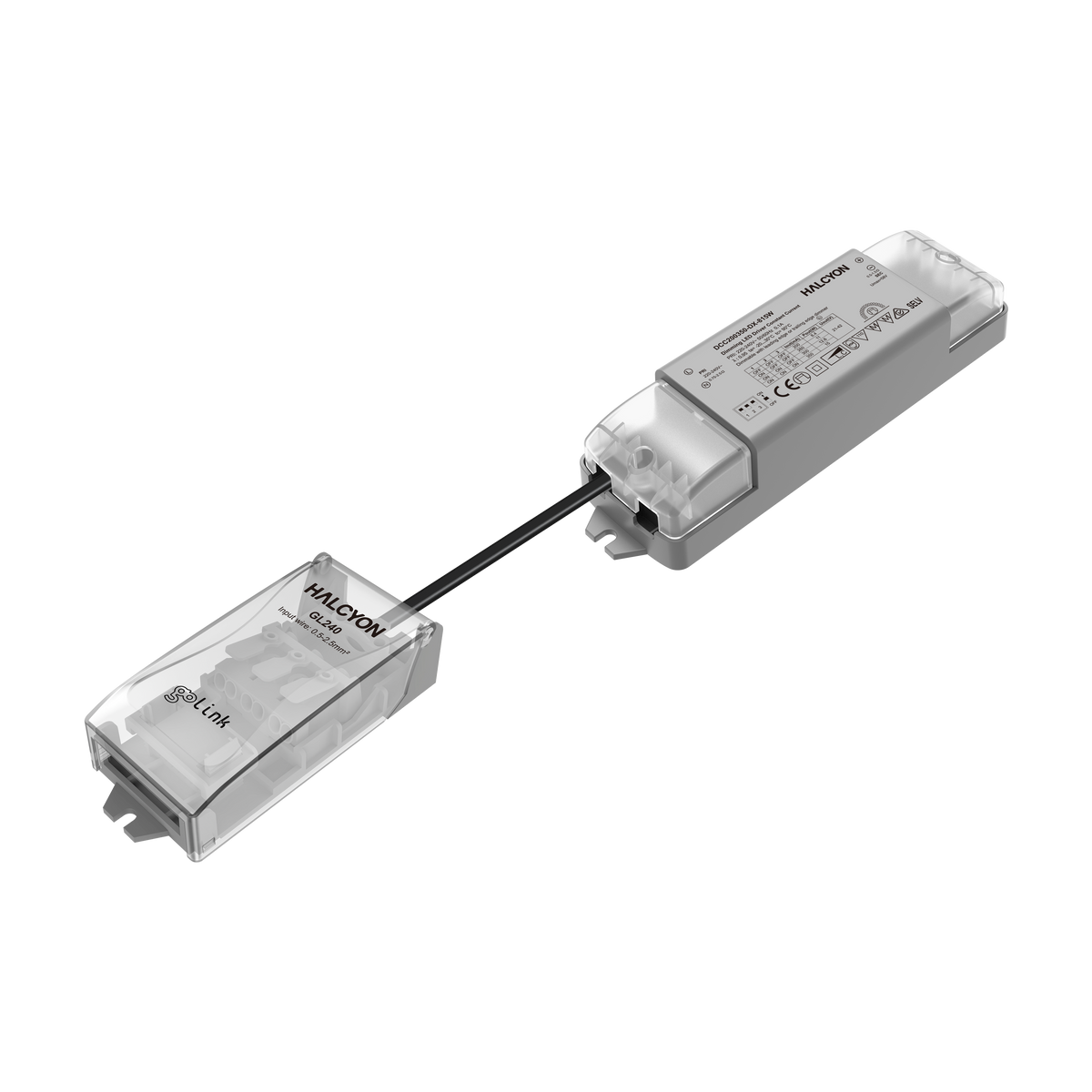

DCC200A-DX-9W-GL 200mA 9W Phase-cut Dimmable Constant Current Driver - Go Link Adaptor
Watts
4.2-8.4W
Watts
4.2-8.4W
Specifications
Watts
4.2-8.4W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
28mm
Width
44mm
Length
156mm
Material
PC
Electrical Class
Class II
Driver Output Voltage
21-42V
Driver Output Current
200mA
Ambient Operating Temperature
-20..+25°C
Installation Note
Suitable for Installation Under Insulation
Warranty
5 Year Warranty
