DCV24-60W-IP-V2
DCV24-60W-IP-V2
- Checking stock...
DRAFT - Driver Non-Dimmable Pri:240V Sec:24V DC CV 0-60W IP67
Non dimmable

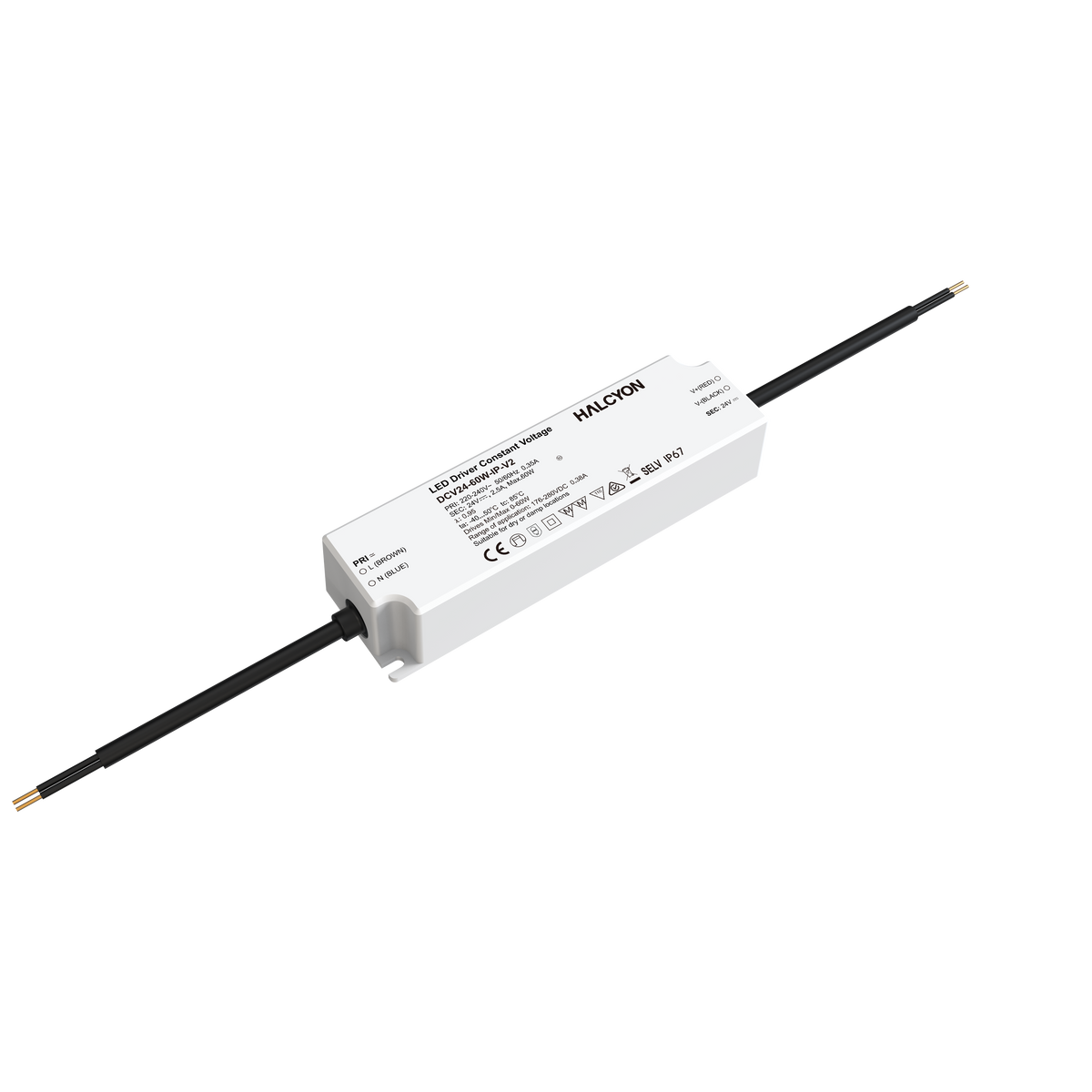

DCV24-60W-IP-V2 IP67 24V 60W Constant Voltage Non-dimmable Driver
Watts
0-60W
Watts
0-60W
Specifications
Watts
0-60W
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
Ingress Protection
IP67
Height
35mm
Width
45mm
Length
155mm
Electrical Class
Class I
Driver Output Voltage
24V
Driver Output Current
0-2.5A
Ambient Operating Temperature
-40..+50°C
Power Factor
0.95
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
