R902-W34-DC
R902
- Checking stock...
R902-W34-DC Designline Square Frosted Textured White 3000K / 4000K
Lumens
Watts
130lm
2.1W
View Options
Add Driver
driver not included
View Options
-
Concrete installation housing for R902/R904
Select Wall
R902
Designline Square Frosted Textured White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
See Specification Sheet
Lumens
130lm
Watts
2.1W
R902

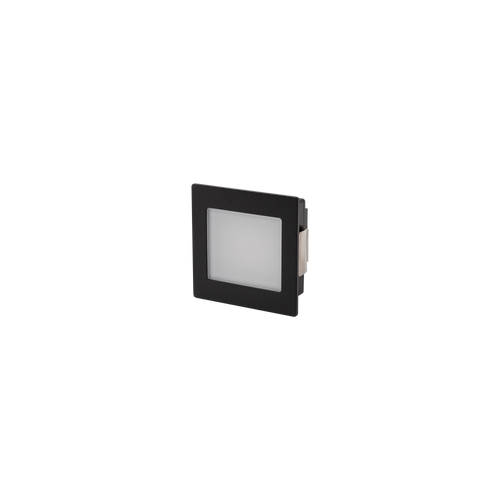

Designline Square Frosted Textured Black 3K/4K
Temp.
3000K or 4000K (Selectable)
Cut out
See Specification Sheet
Lumens
130lm
Watts
2.1W
R902

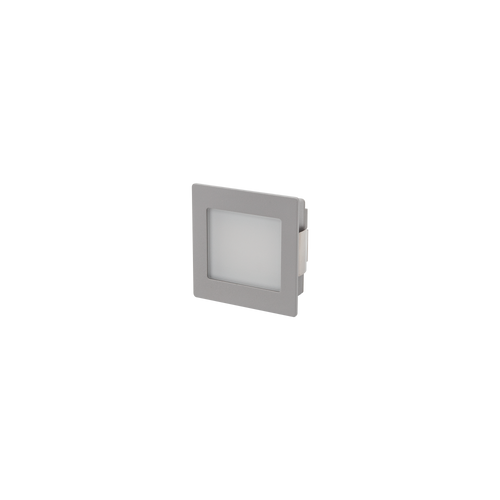

Designline Square Frosted Silver 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
See Specification Sheet
Lumens
130lm
Watts
2.1W
Select driver
driver sold separately. Please select below.
Dimmable
DCC700-DM-4W-IP
IP65 700mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
DCC700-DM-10W-IP
IP65 700mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC700-DX-12W
700mA 12W Dimmable Constant Current DX Series Driver
Watts
7W-12W
DCC700-DX-20W
700mA 20W Dimmable Constant Current DX Series Driver
Watts
10.5W-20W
DCC700-DX-30W
700mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Non Dimmable
DCC700-M-4W-IP
IP65 700mA 4W Constant Current Mini Non-dimmable Driver
Watts
1.4W-4W
DCC700-M-12W-IP
IP65 700mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
DCC700-12W
700mA 12W Constant Current Non-dimmable Driver
Watts
1.5W-12W
DCC700-21W
700mA 21W Constant Current Non-dimmable Driver
Watts
1.5W-21W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
2.1W
Lumens
130lm
Beam Angle
100°
Input
700mA DC
Dimming / Control
Dimmable
CRI
90
Lifespan
60,000hrs (L80 B20)
Ingress Protection
IP65
Cut Out
See Specification Sheet
Height
31mm
Width
80mm
Length
80mm
Binning
SDCM 3
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
700mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
