R868 BNL
R868
- Checking stock...

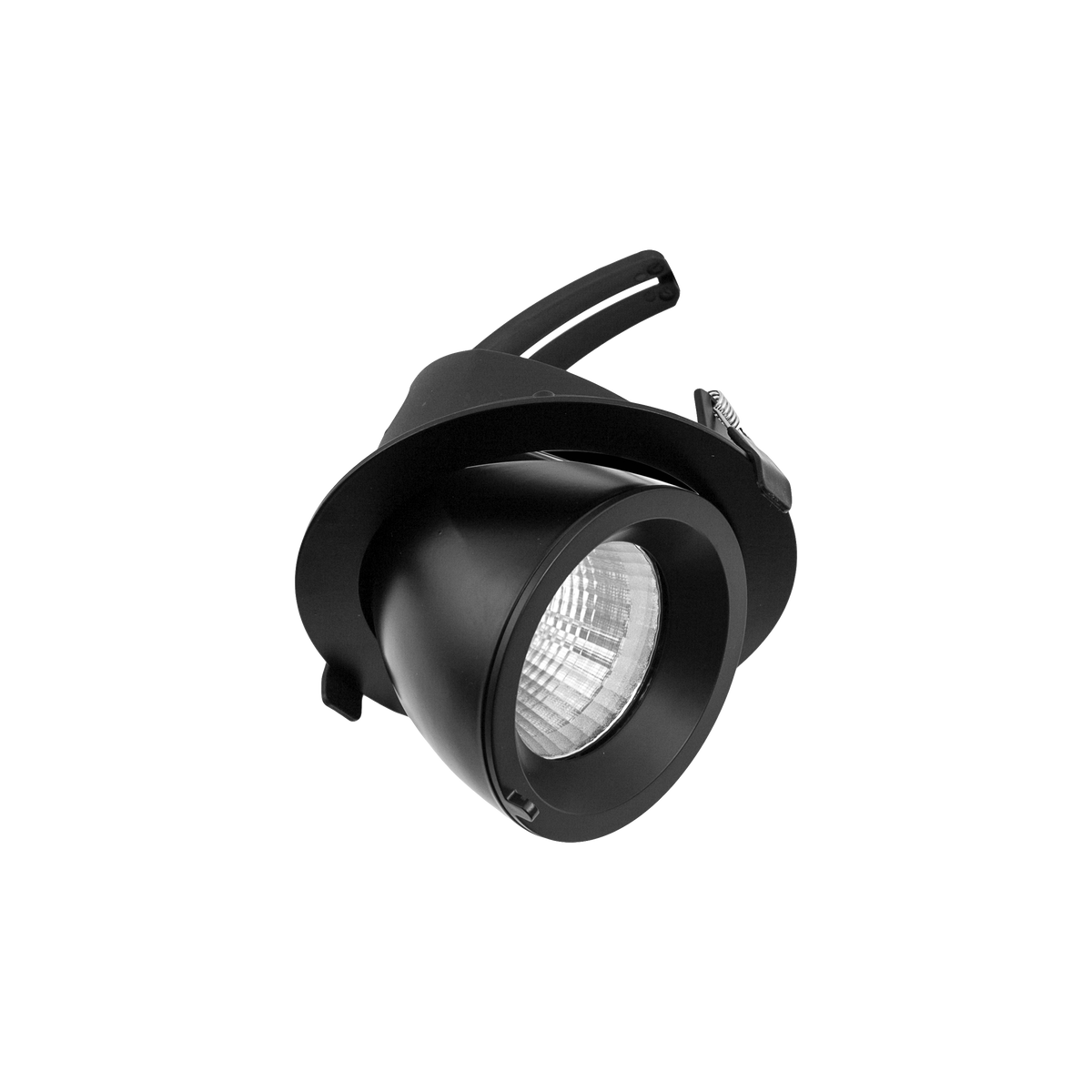

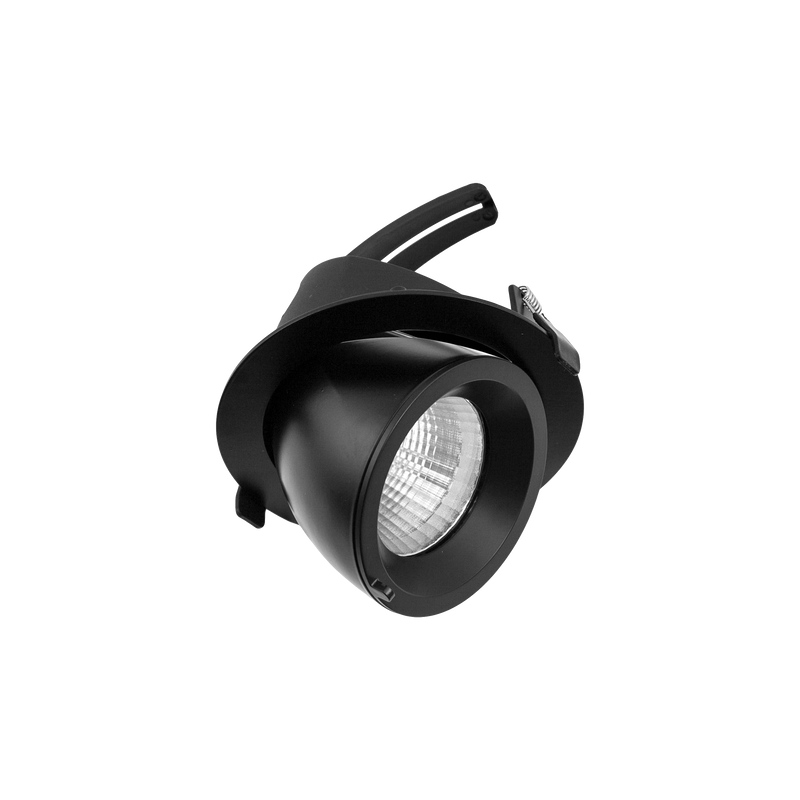

R868 BNL Drop Tilt/Rotate Large Downlight Black 4000K
Lumens
Watts
Tilt Angle
2650lm
25W
+45° Down / -15° Up
View Options
Add Driver
driver not included
View Options
-
20° Reflector for R835 & R868
Select Downlights
R868
Drop Tilt/Rotate Large Downlight Black 4000K
Temp.
4000K Natural White
Tilt Angle
+45° Down / -15° Up
Cut out
150mm
Lumens
2650lm
Rotate Angle
355°
Watts
25W
R868
Drop Tilt/Rotate Large Downlight White 3000K
Temp.
3000K Warm White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2400lm
Rotate Angle
355°
Watts
17W
R868
Drop Tilt/Rotate Large Downlight White 3000K
Temp.
3000K Warm White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2400lm
Rotate Angle
355°
Watts
17W
R868
Drop Tilt/Rotate Large Downlight White 4000K
Temp.
4000K Natural White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2500lm
Rotate Angle
355°
Watts
17W
Select driver
driver sold separately. Please select below.
Dimmable
DCC700-DX-30W
700mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
DCC700-D-40W
700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Non Dimmable
DCC700-40W
700mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Specifications
Finish
Black
Colour Temp
4000K Natural White
Watts
25W
Lumens
2650lm
Beam Angle
70°
Dimming / Control
Dimmable
CRI
90
Lifespan
40,000hrs
Tilt Angle
+45° Down / -15° Up
Rotate Angle
355°
Cut Out
150mm
Diameter
162mm
Height
138mm
Binning
SDCM 3
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium, Safety Glass
Electrical Class
Class III
Driver Output Current
700mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
