M80 Series
M80-T1-BHGB3K-45D
M80-T1
- Custom Build - Stock Available

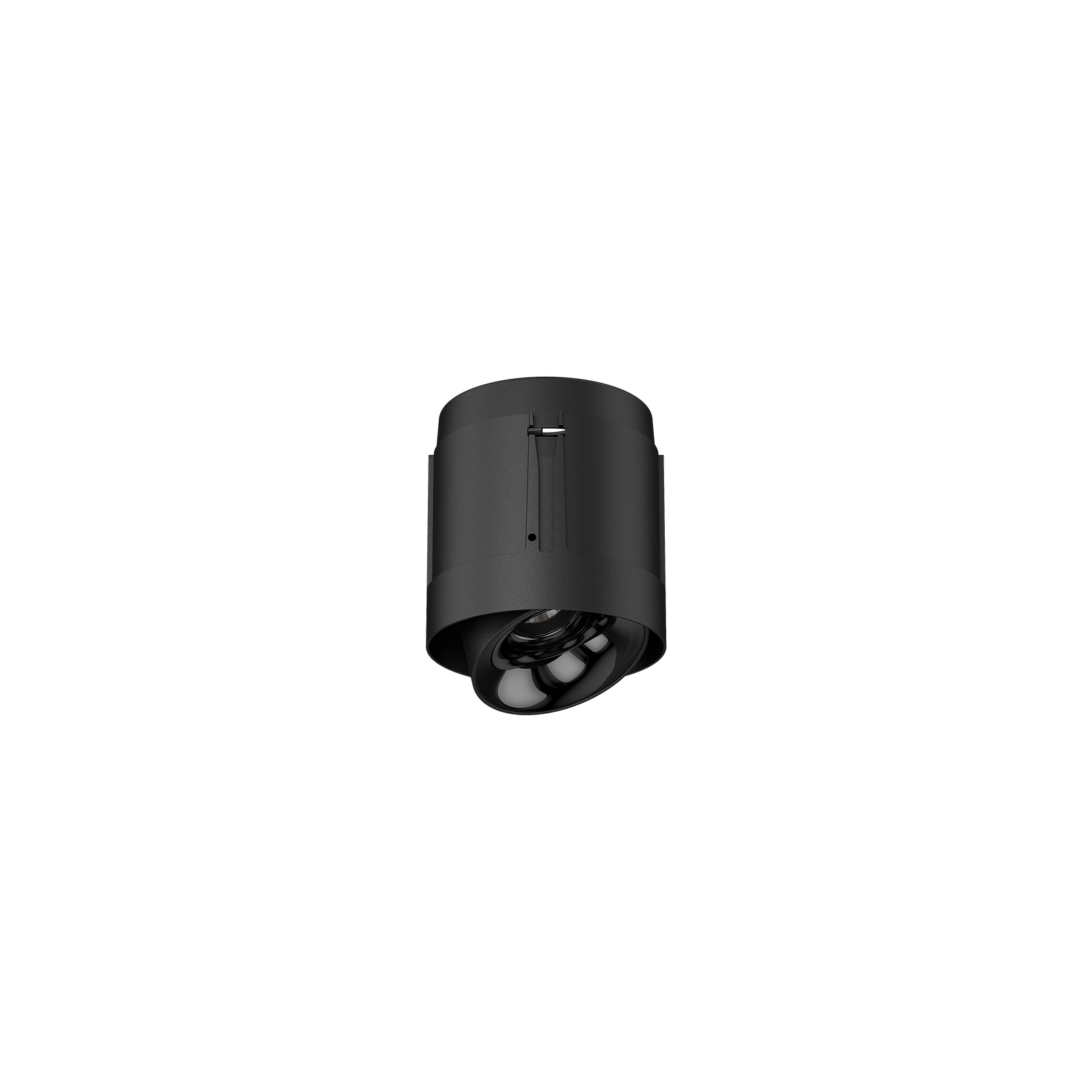

M80-T1-BHGB3K-45D Cevon M80 Type 1 Dark Art Adjustable Black, High Gloss Black 3000K
Lumens
Watts
Tilt Angle
730lm
9W
25°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
750lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
750lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, High Gloss Black 3000K
Temp.
3000K
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
750lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali
DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
Black, High Gloss Black
Colour Temp
3000K Warm White
Watts
9W
Lumens
730lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Tilt Angle
25°
Rotate Angle
355°
Ingress Protection
IP43
RAL Colour
RAL9003
Diameter
78mm
Height
82mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
