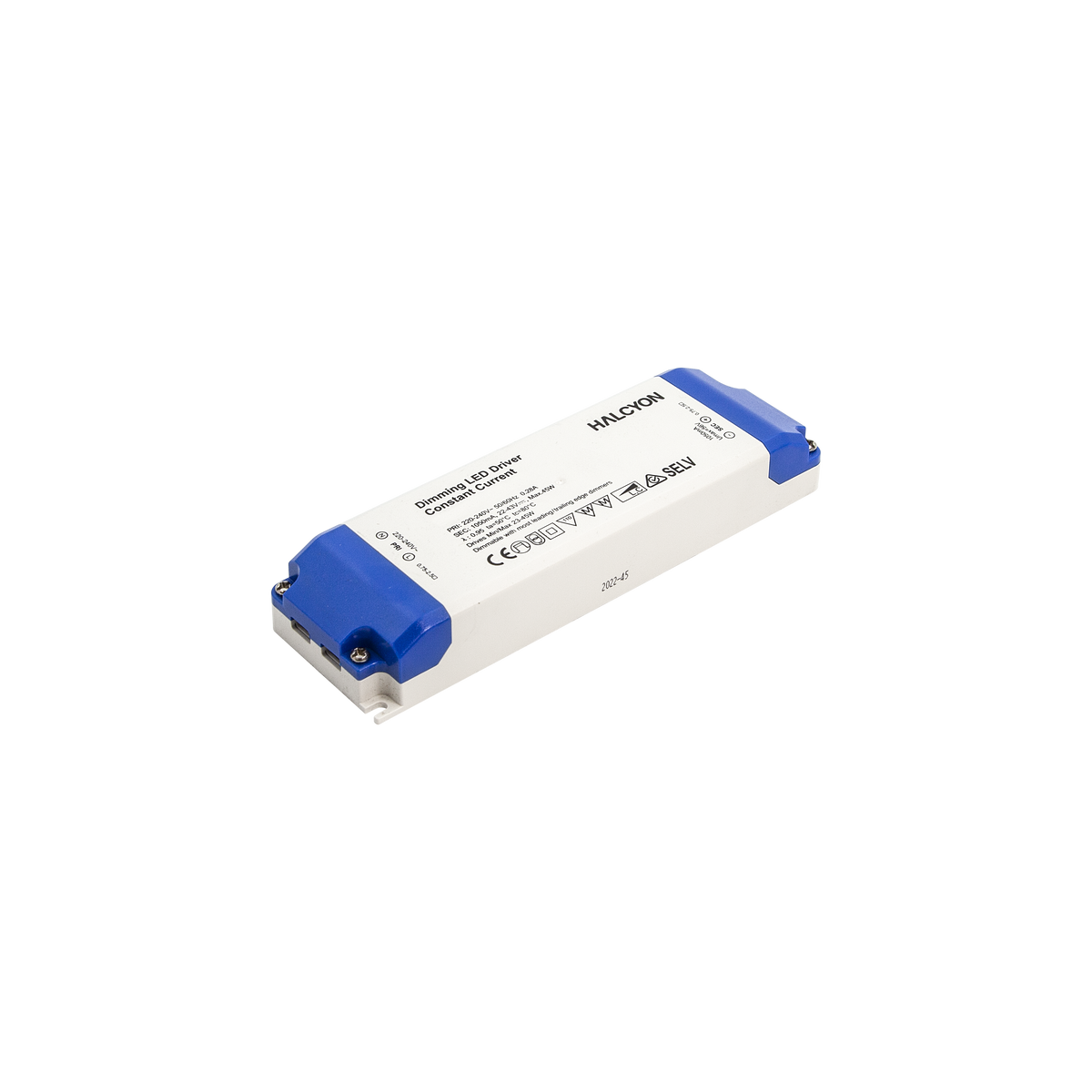

1050mA 45W Constant Current Primary Dimmable

DCC1050-D-45W

All DCC1050-D-45W

DCC1050-D-45W

  • Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec:22-44V DC 1050mA CC 23-45W
Dimmable (phase-cut)
1050mA 45W Constant Current Primary Dimmable

DCC1050-D-45W 1050mA 45W Constant Current Primary Dimmable

Watts

23W-45W

Watts

23W-45W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

1050mA 45W Constant Current Primary Dimmable

Dimmable (phase-cut)

DCC1050-D-45W

Watts

23W-45W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

25mm

Width

52mm

Length

166mm

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

22-44V

Driver Output Current

1050mA

Ambient Operating Temperature

-20..+50°C

Power Factor

0.95

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
