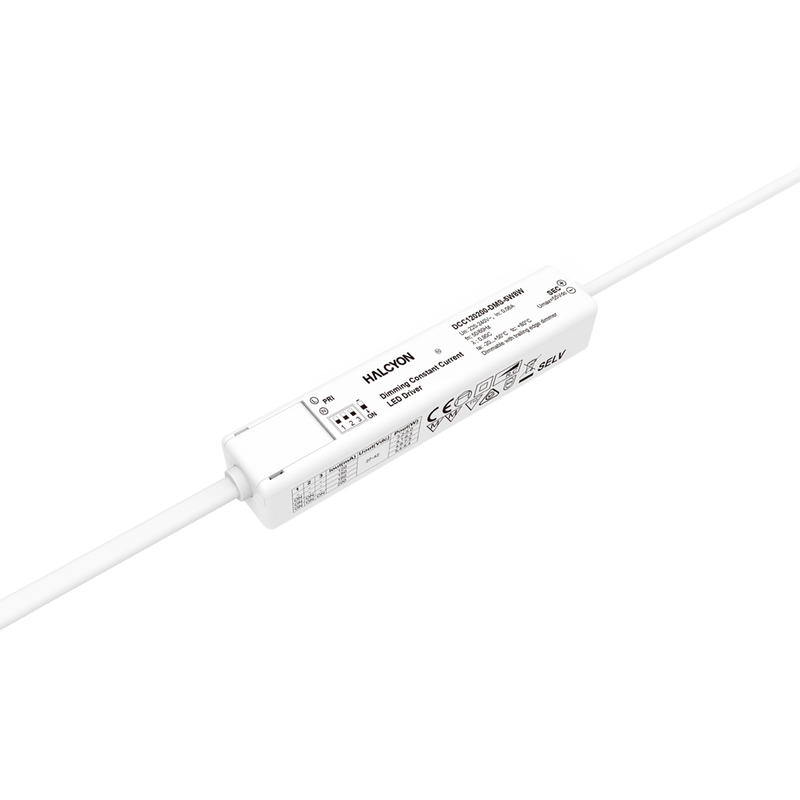

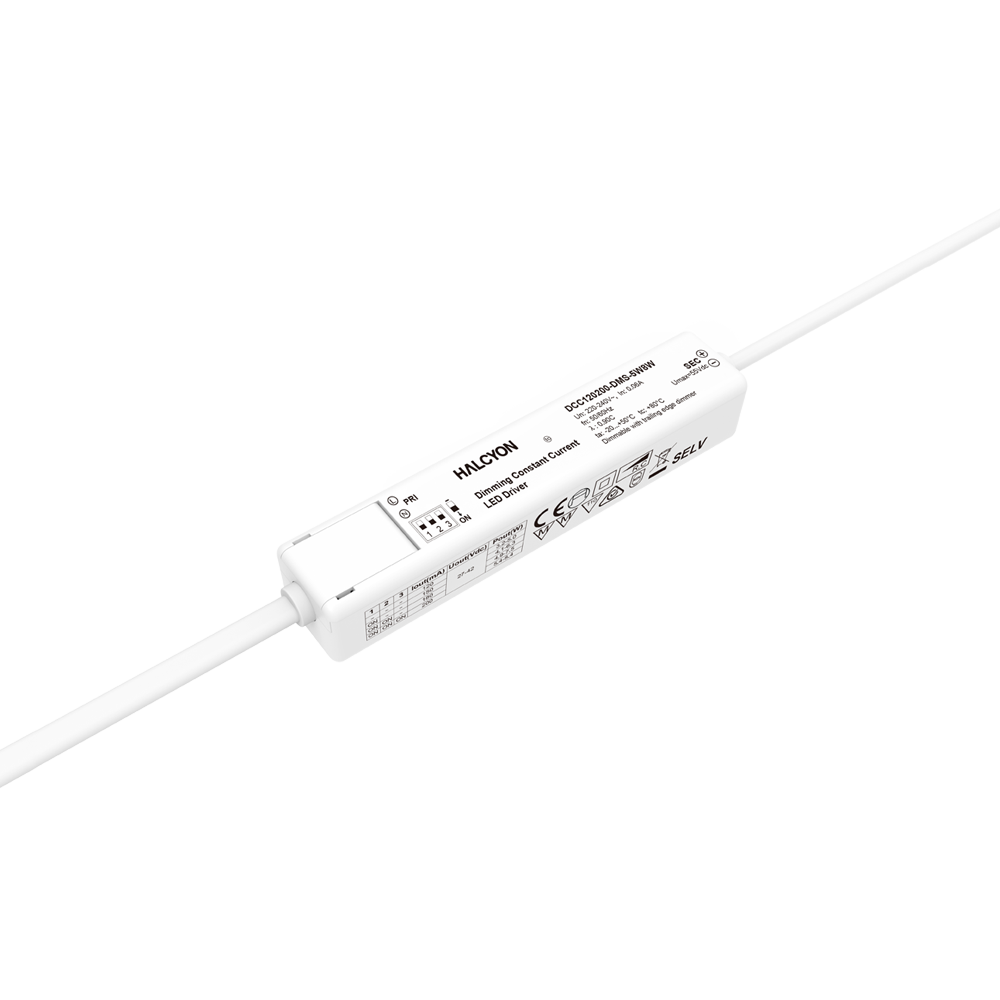

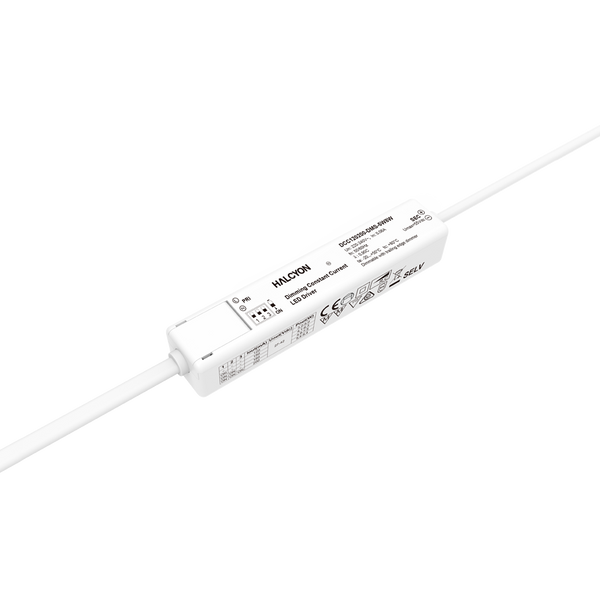

120-200mA 8W Constant Current Mini Slim Phase-Cut Dimmable Driver

DCC120200-DMS-5W8W

All DCC120200-DMS-5W8W

DCC120200-DMS-5W8W

  • Checking stock...
Driver Mini Slim Phase-Cut Dimmable Pri:240V Sec:27-42V 120-200mA CC 5W-8W Pre-wired Primary and secondary
Dimmable (phase-cut)
120-200mA 8W Constant Current Mini Slim Phase-Cut Dimmable Driver

DCC120200-DMS-5W8W 120-200mA 8W Constant Current Mini Slim Phase-Cut Dimmable Driver

Watts

8.4W (See Spec Sheet)

Watts

8.4W (See Spec Sheet)

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

120-200mA 8W Constant Current Mini Slim Phase-Cut Dimmable Driver

Dimmable (phase-cut)

DCC120200-DMS-5W8W

Watts

8.4W (See Spec Sheet)

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

18.5mm

Width

25mm

Length

100mm

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

27-42V

Driver Output Current

Adjustable 120mA, 150mA, 180mA, 200mA

Power Factor

0.90C

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
