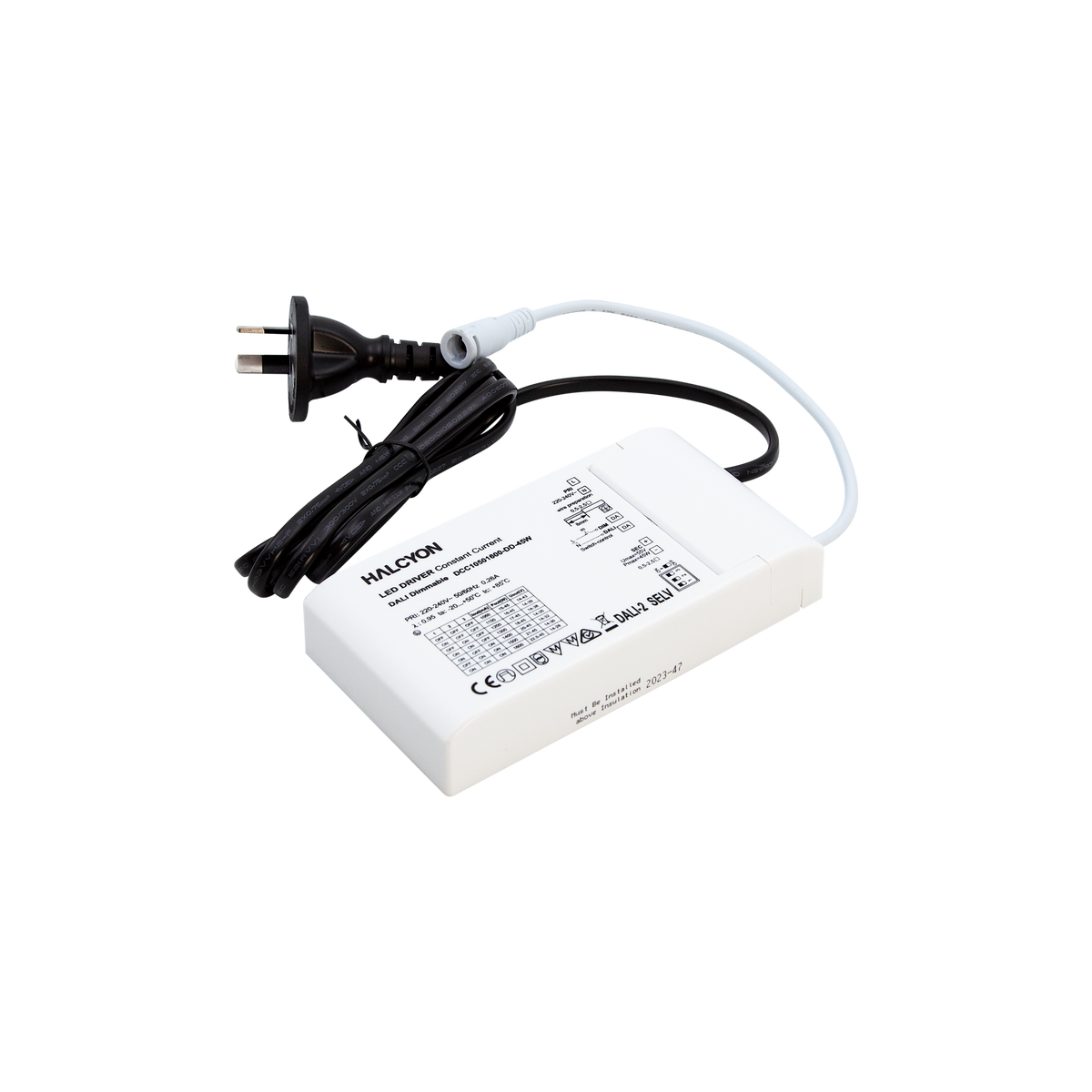

1050-1600mA 45W Constant Current Dali Driver

DCC10501600-DD-45W-PNL

All DCC10501600-DD-45W-PNL

DCC10501600-DD-45W-PNL

  • Checking stock...
Driver Dali Pri:240V Sec:14-43V DC Select 1050-1600mA CC 15-45W c/w Quick Connect Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Dali
1050-1600mA 45W Constant Current Dali Driver

DCC10501600-DD-45W-PNL 1050-1600mA 45W Constant Current Dali Driver

Watts

15W-45W

Watts

15W-45W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

1050-1600mA 45W Constant Current Dali Driver

Dali

DCC10501600-DD-45W-PNL

Watts

15W-45W

Input

220-240V 50/60Hz

Dimming / Control

Dali

Ingress Protection

IP20

Height

24mm

Width

72mm

Length

135mm

Electrical Class

Class II

Driver Output Current

Adjustable 1050mA, 1150mA, 1200mA, 1300mA, 1400mA, 1500mA, 1600mA

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
