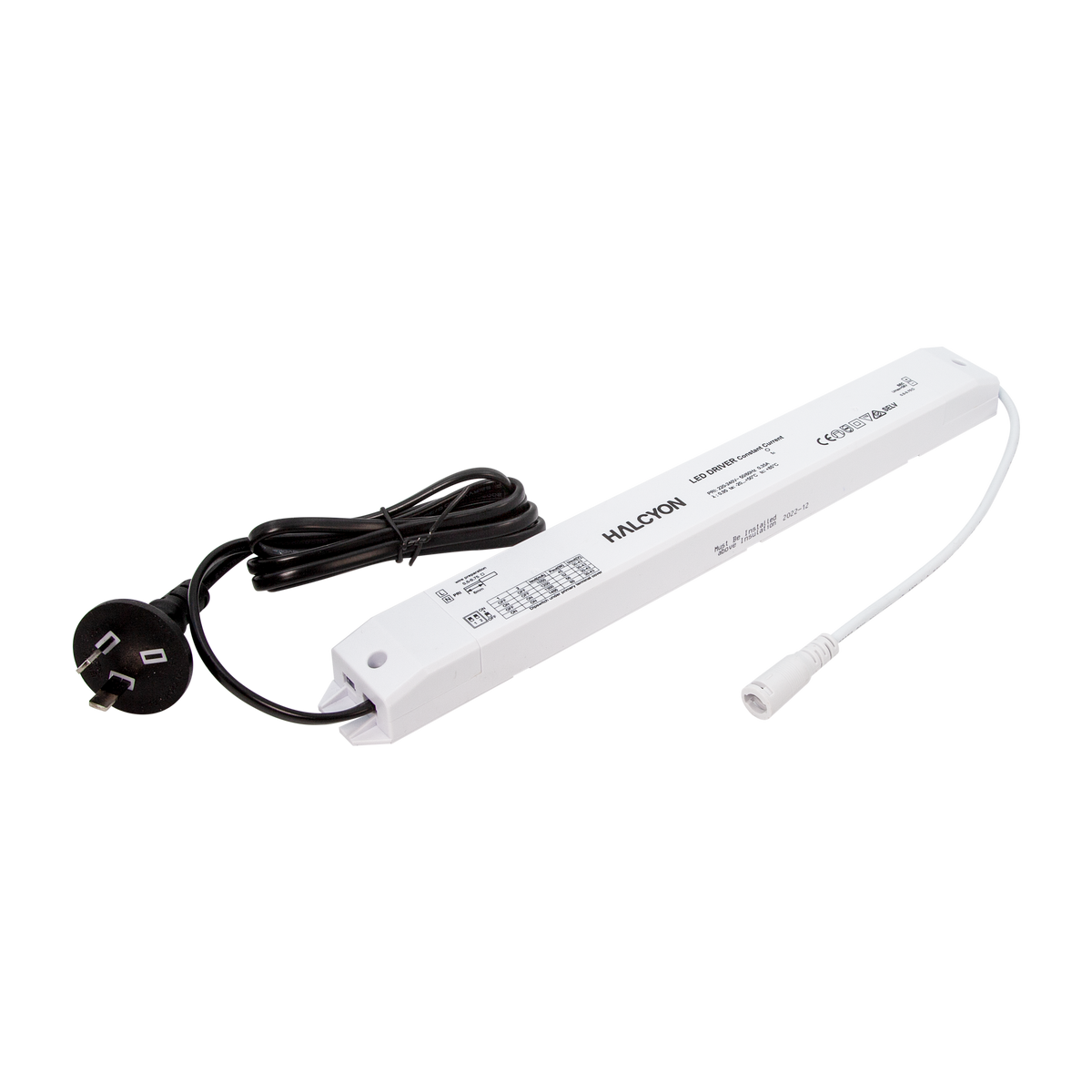

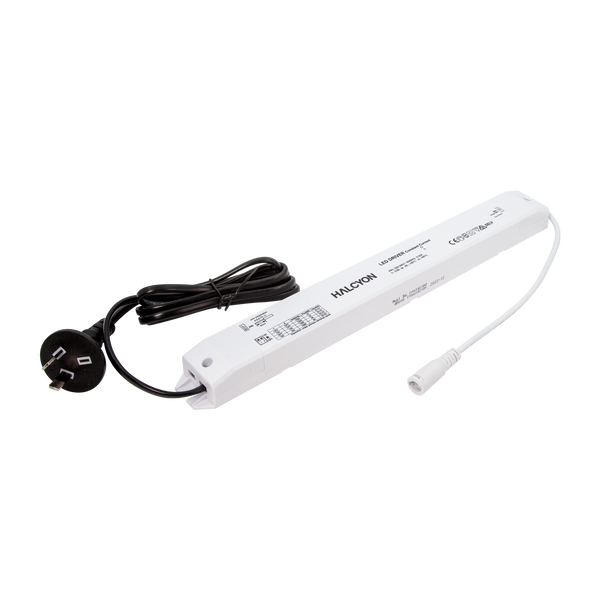

1050-1400mA 60W Constant Current Non-dimmable Driver

DCC10501400-4560W-PNL

All DCC10501400-4560W-PNL

DCC10501400-4560W-PNL

  • Checking stock...
Driver Non-Dimmable Pri:240V Sec:30-43V DC Select 1050-1400mA CC 45-60W c/w Quick Connect Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Non dimmable
1050-1400mA 60W Constant Current Non-dimmable Driver

DCC10501400-4560W-PNL 1050-1400mA 60W Constant Current Non-dimmable Driver

Watts

45W-60W

Watts

45W-60W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

1050-1400mA 60W Constant Current Non-dimmable Driver

Non dimmable

DCC10501400-4560W-PNL

Watts

45W-60W

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP20

Height

23mm

Width

35mm

Length

320mm

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Electrical Class

Class II

Driver Output Voltage

30-43V

Driver Output Current

Adjustable 1050mA, 1200mA, 1300mA, 1400mA

Ambient Operating Temperature

-20..+50°C

Power Factor

≥0.95

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
