R868-B3K-70D
R868
- Checking stock...

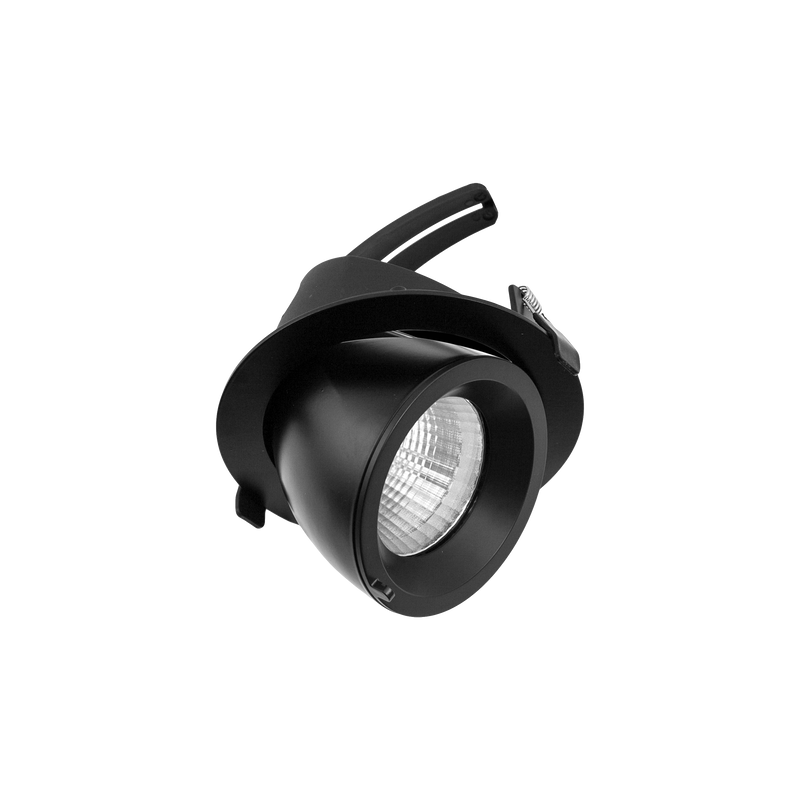

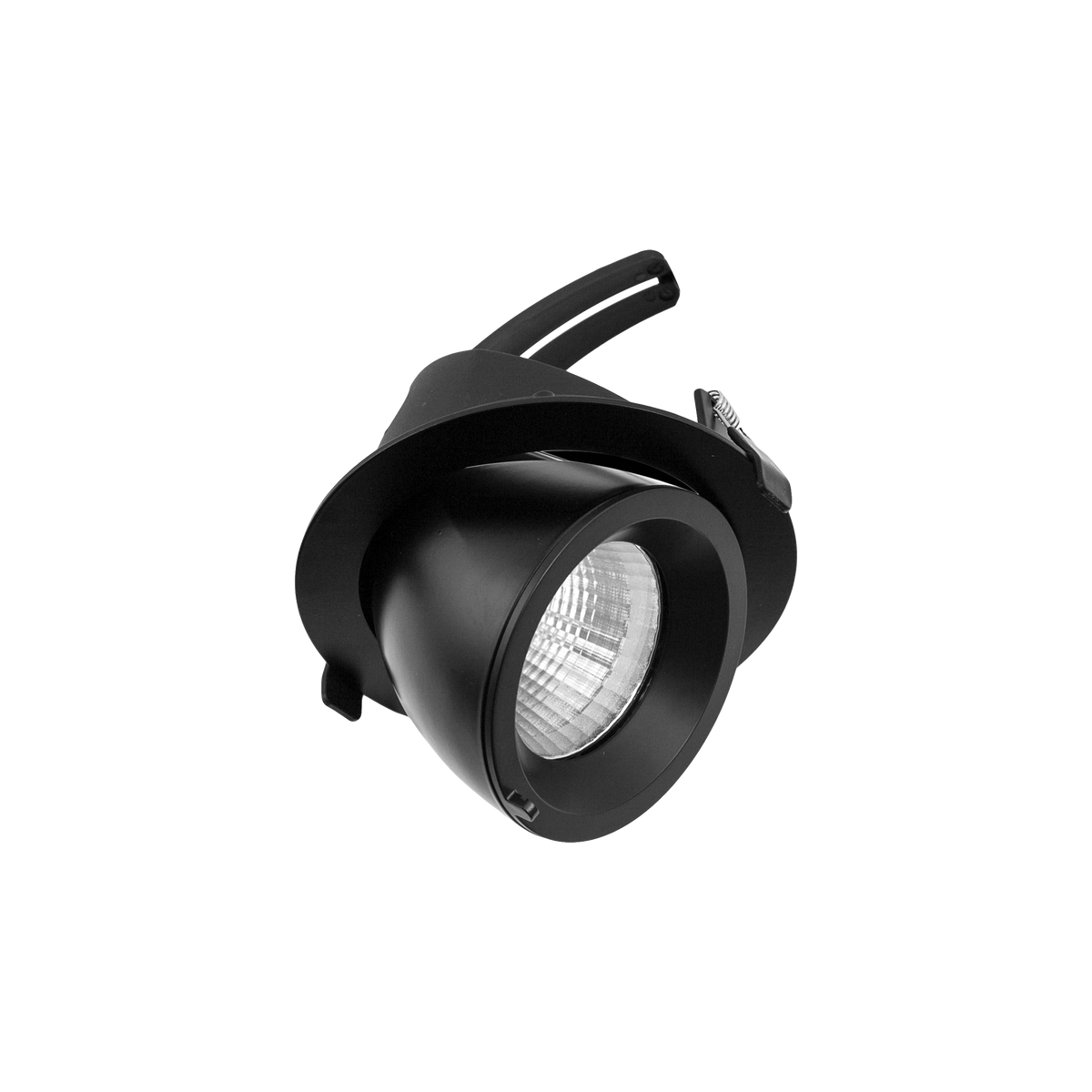

R868-B3K-70D Drop Tilt/Rotate Large Downlight Black 3000K
Lumens
Watts
Tilt Angle
2400lm
17W
-15° to 45°
View Options
Add Driver
driver not included
View Options
-
20° Reflector for R835 & R868
Select Downlights
R868
Drop Tilt/Rotate Large Downlight Black 3000K
Temp.
3000K Warm White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2400lm
Rotate Angle
355°
Watts
17W
R868
Drop Tilt/Rotate Large Downlight White 3000K
Temp.
3000K Warm White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2400lm
Rotate Angle
355°
Watts
17W
R868
Drop Tilt/Rotate Large Downlight White 4000K
Temp.
4000K Natural White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2500lm
Rotate Angle
355°
Watts
17W
R868
Drop Tilt/Rotate Large Downlight Black 4000K
Temp.
4000K Natural White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2500lm
Rotate Angle
355°
Watts
17W
Select driver
driver sold separately. Please select below.
Dimmable
DCC500-DX-20W
500mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
DCC500-DX-30W
500mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Non Dimmable
DCC500-20W
500mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
Specifications
Cut Out
Ø150mm
Finish
Black
Colour Temp
3000K Warm White
Watts
17W
Lumens
2400lm
Beam Angle
70°
Dimming / Control
Dimmable
CRI
90
Tilt Angle
-15° to 45°
Rotate Angle
355°
Lifespan
83,000hrs (L80 B50)
Ingress Protection
IP20
Diameter
162mm
Height
138mm
Binning
SDCM 3
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium, Safety Glass
Electrical Class
Class III
Driver Output Current
500mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Driver
None
