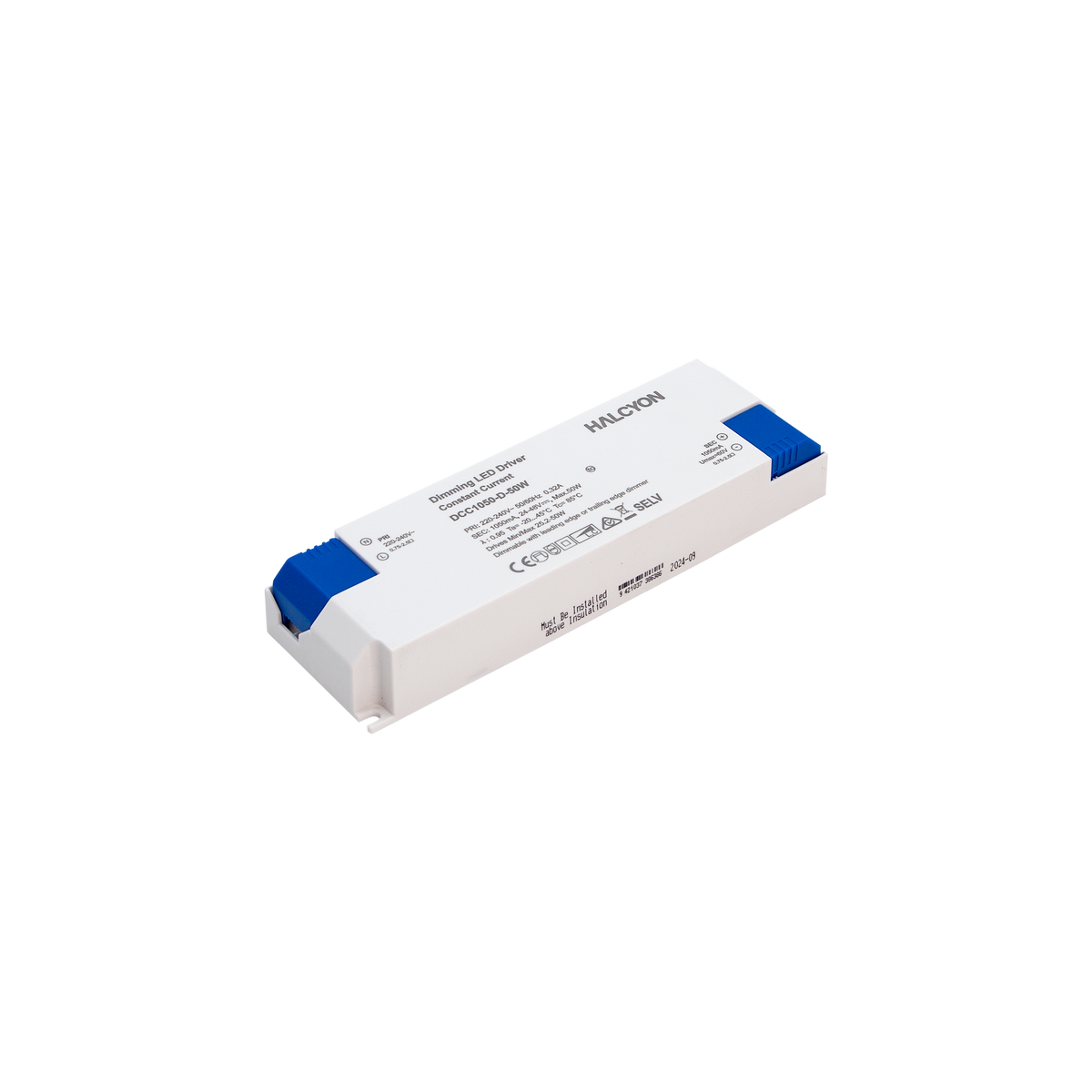

1050mA 50W Constant Current Phase-cut Dimmable Driver

DCC1050-D-50W

All DCC1050-D-50W

DCC1050-D-50W

  • Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec:24-48V DC 1050mA CC 25.2-50W
Dimmable (phase-cut)
1050mA 50W Constant Current Phase-cut Dimmable Driver

DCC1050-D-50W 1050mA 50W Constant Current Phase-cut Dimmable Driver

Watts

25.2W-50W

Watts

25.2W-50W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

1050mA 50W Constant Current Phase-cut Dimmable Driver

Dimmable (phase-cut)

DCC1050-D-50W

Watts

25.2W-50W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

25mm

Width

52mm

Length

166mm

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

24-48V

Driver Output Current

1050mA

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
