R868-W4K-70D
R868
- Checking stock...

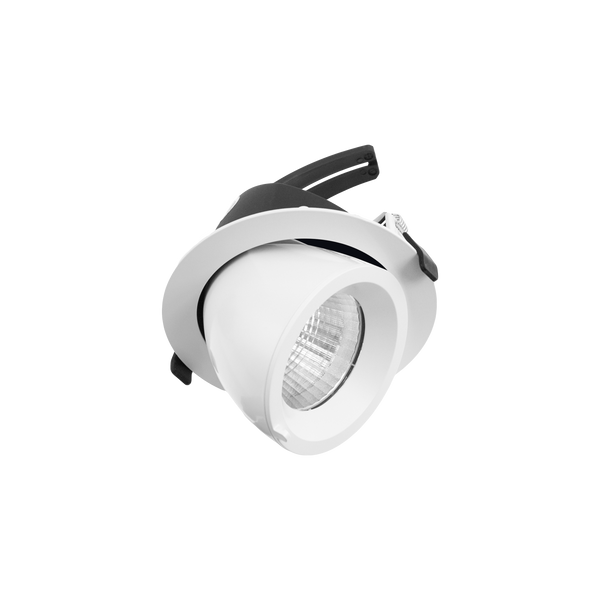

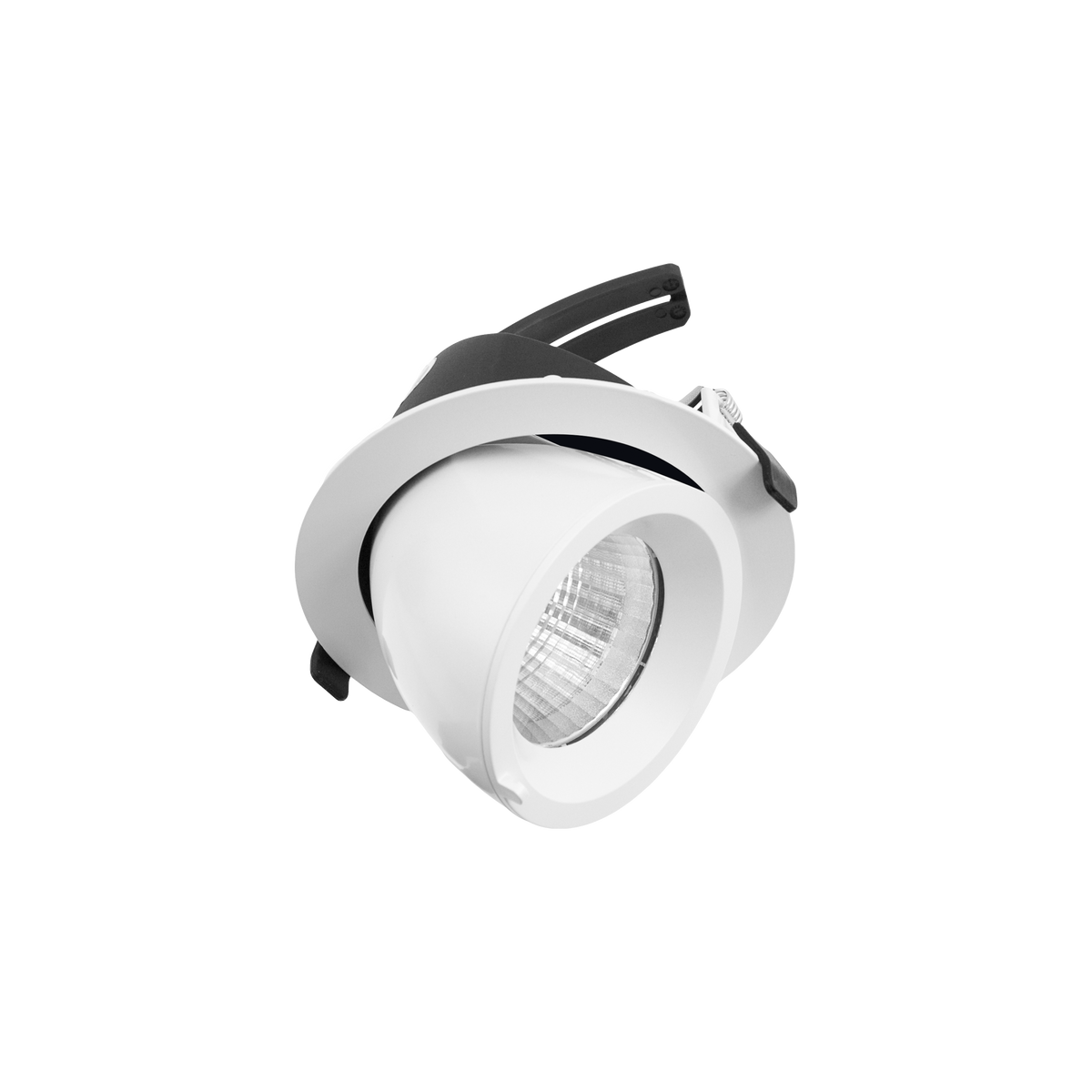

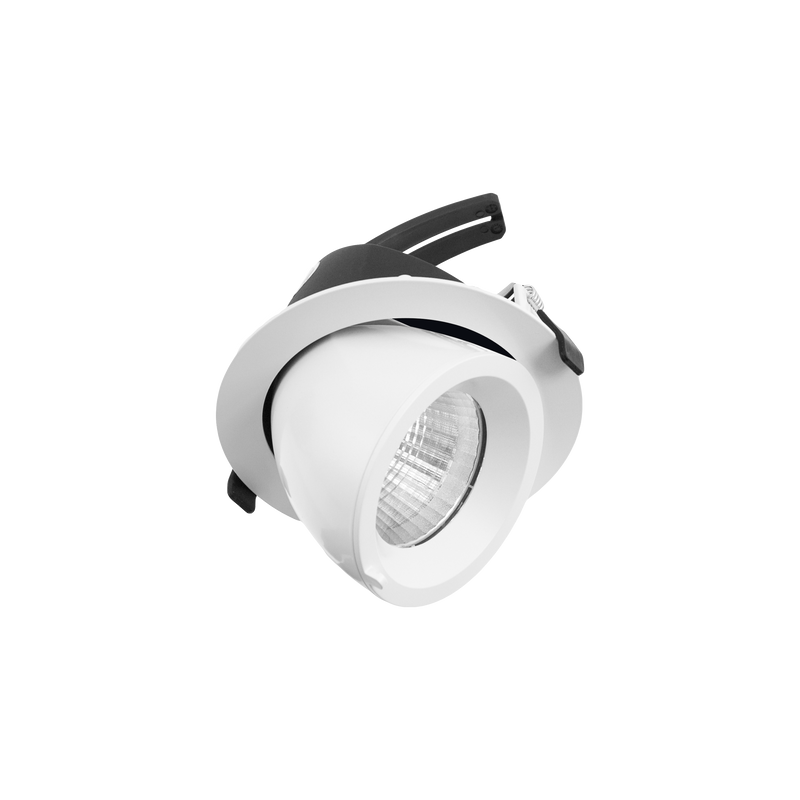

R868-W4K-70D Drop Tilt/Rotate Large Downlight White 4000K
Lumens
Watts
Tilt Angle
2500lm
17W
-15° to 45°
View Options
Add Driver
driver not included
View Options
-
20° Reflector for R835 & R868
Select Downlights
R868
Drop Tilt/Rotate Large Downlight White 4000K
Temp.
4000K Natural White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2500lm
Rotate Angle
355°
Watts
17W
R868

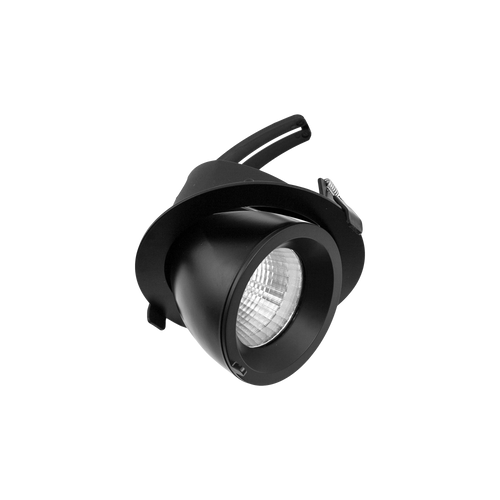

Drop Tilt/Rotate Large Downlight Black 4000K
Temp.
4000K Natural White
Tilt Angle
+45° Down / -15° Up
Cut out
150mm
Lumens
2650lm
Rotate Angle
355°
Watts
25W
R868
Drop Tilt/Rotate Large Downlight White 3000K
Temp.
3000K Warm White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2400lm
Rotate Angle
355°
Watts
17W
R868
Drop Tilt/Rotate Large Downlight White 3000K
Temp.
3000K Warm White
Tilt Angle
-15° to 45°
Cut out
Ø150mm
Lumens
2400lm
Rotate Angle
355°
Watts
17W
Select driver
driver sold separately. Please select below.
Dimmable
DCC500-DX-20W
500mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W

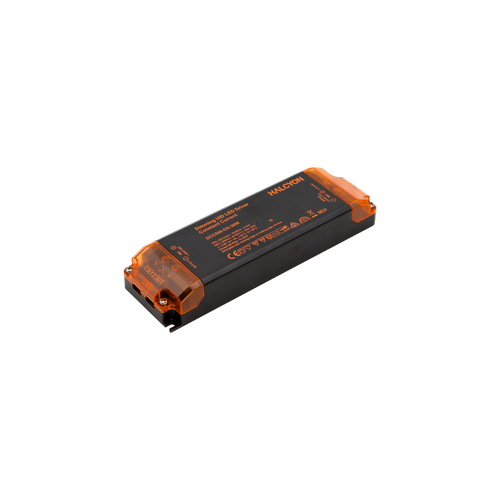

DCC500-DX-30W
500mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Non Dimmable

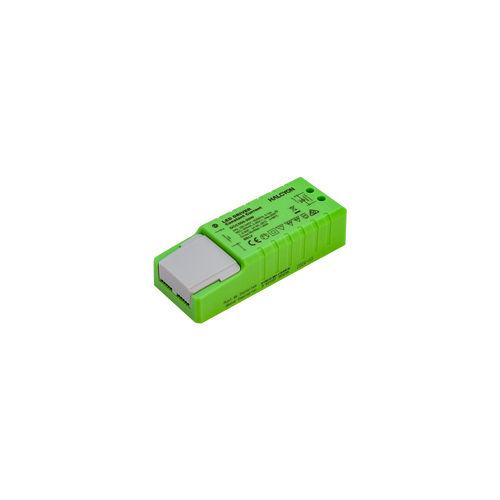

DCC500-20W
500mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
17W
Lumens
2500lm
Beam Angle
70°
Dimming / Control
Dimmable
CRI
90
Lifespan
83,000hrs (L80 B50)
Tilt Angle
-15° to 45°
Rotate Angle
355°
Ingress Protection
IP20
Cut Out
Ø150mm
Diameter
162mm
Height
138mm
Binning
SDCM 3
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium, Safety Glass
Electrical Class
Class III
Driver Output Current
500mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
