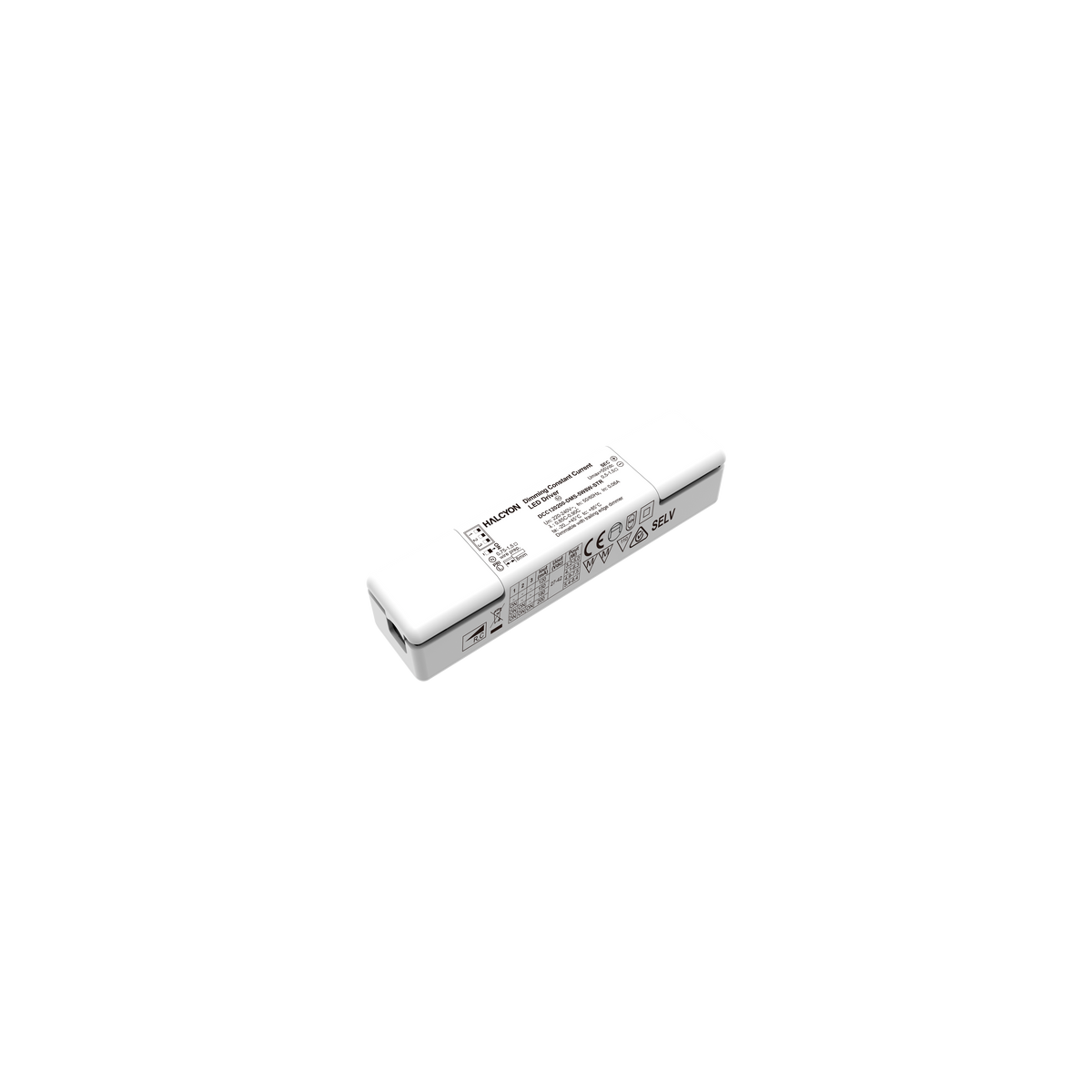

120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver

DCC120200-DMS-5W8W-STR

All DCC120200-DMS-5W8W-STR

DCC120200

  • Checking stock...
Driver Mini Slim Phase-Cut Dimmable Pri:240V Sec:27-42V 120-200mA CC 5W-8W with captured terminals, Strain Relief
Dimmable (phase-cut)
120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver

DCC120200-DMS-5W8W-STR 120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver

Watts

8.4W (See Spec Sheet)

Watts

8.4W (See Spec Sheet)

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver

Dimmable (phase-cut)

DCC120200-DMS-5W8W-STR

Watts

8.4W (See Spec Sheet)

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Height

18.5mm

Width

25mm

Length

100mm

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

27-42V

Driver Output Current

Adjustable 120mA, 150mA, 180mA, 200mA

Ambient Operating Temperature

-20...+45℃

Power Factor

0.90C

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
