R774 B34V3
R774
- Checking stock...

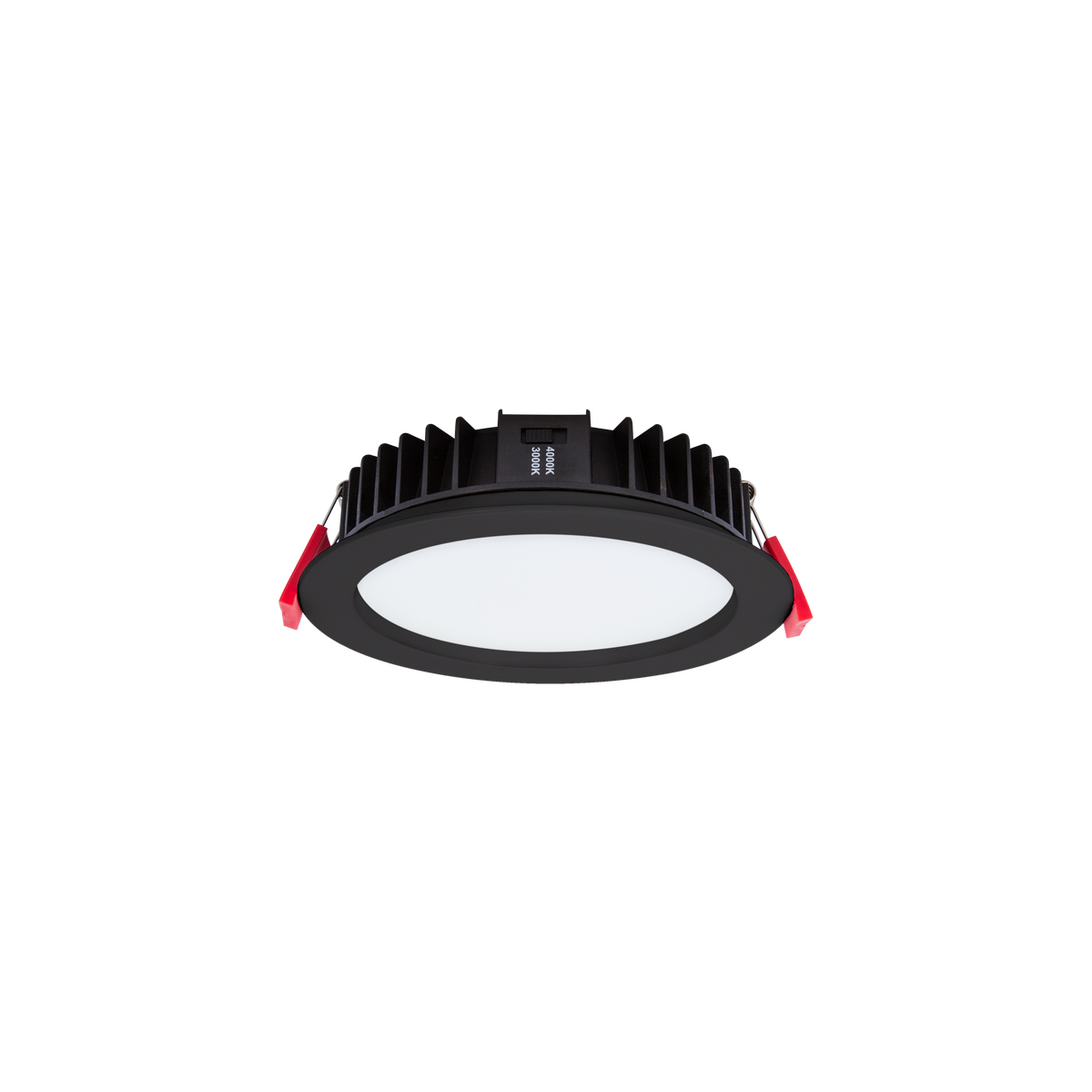

R774 B34V3 LEDE Premium Economy Large 9W/15W Downlight Kit Black 3000K / 4000K
Lumens
Watts
1750lm (See Spec Sheet)
9W / 15W
View Options
DCC200350-DX-815W
Watts
8.4W-15W
Watts
8.4W-15W
Select Downlights
R774
LEDE Premium Economy Large 9W/15W Downlight Kit Black 3000K / 4000K
Temp.
3000K / 4000K
Cut out
145mm
Lumens
1750lm (See Spec Sheet)
Watts
9W / 15W
R774

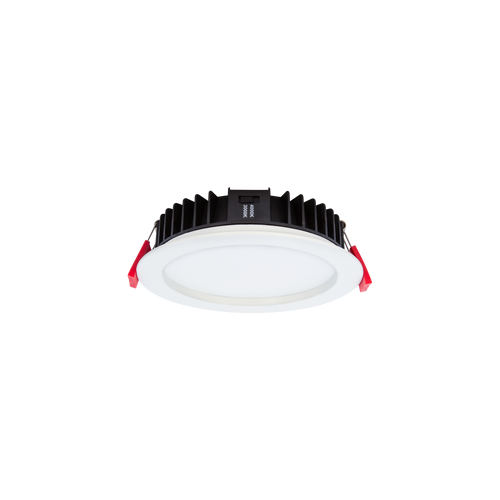

LEDE Premium Economy Large 9W/15W Downlight Kit White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1950lm (See Spec Sheet)
Watts
9W / 15W
R774

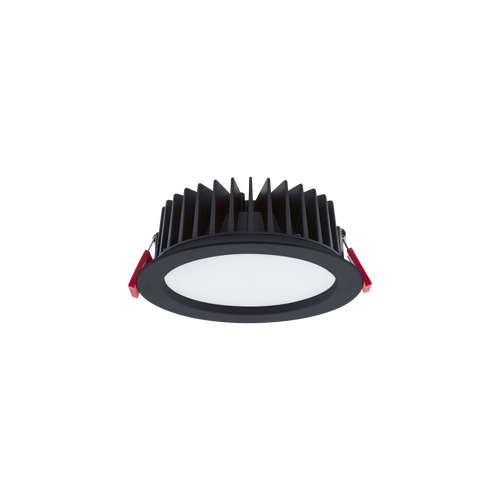

LEDE Premium Economy Large Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1800lm (See spec sheet)
Watts
18W
Specifications
Finish
Black
Colour Temp
3000K / 4000K
Watts
9W / 15W
Lumens
1750lm (See Spec Sheet)
Beam Angle
100°
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
CRI
90
Lifespan
55,000hrs (L80 B20)
Ingress Protection
IP44
Cut Out
145mm
Diameter
160mm
Height
43mm
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
Adjustable 200mA or 350mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver

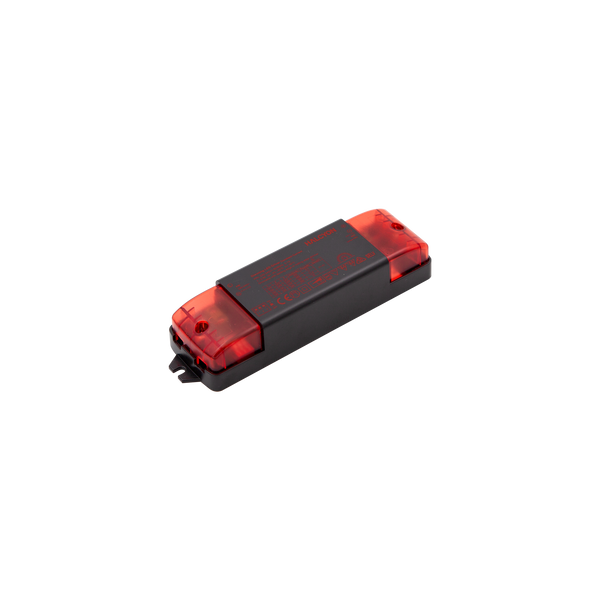

200-350mA 15W Dimmable Constant Current DX Series Driver
Watts
8.4W-15W
Input
220-240V
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
Downloads
