R774 W34V3
R774
- Checking stock...
R774 W34V3 LEDE Premium Economy Large 9W/15W Downlight Kit White 3000K / 4000K
Lumens
Watts
1950lm (See Spec Sheet)
9W or 15W
View Options
DCC200350-DX-815W
Watts
8.4W-15W
Watts
8.4W-15W
Select Downlights
R774

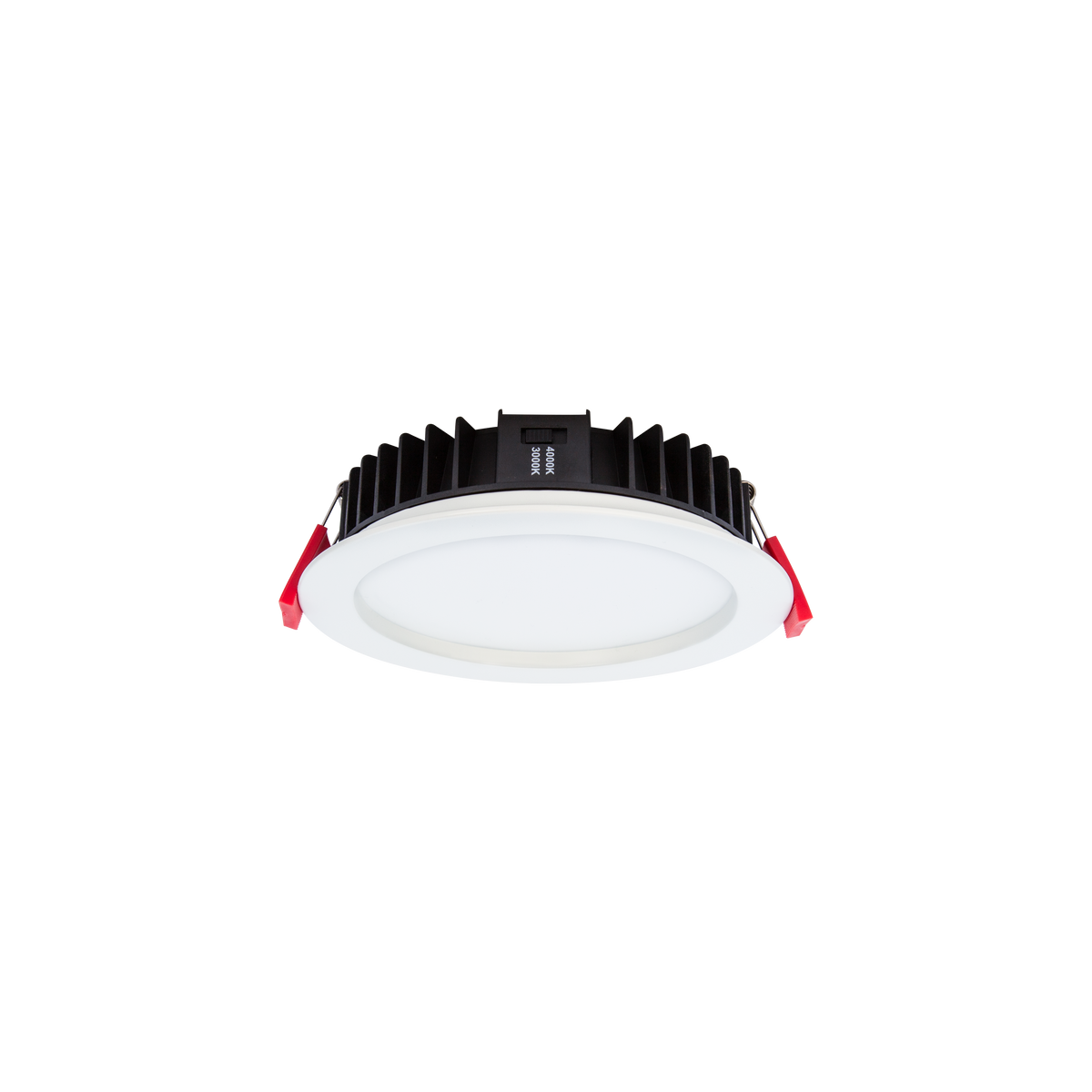

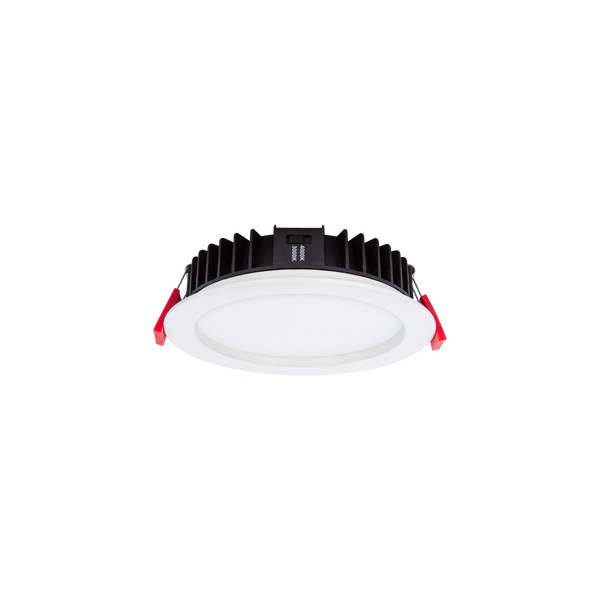

LEDE Premium Economy Large 9W/15W Downlight Kit White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1950lm (See Spec Sheet)
Watts
9W or 15W
R774

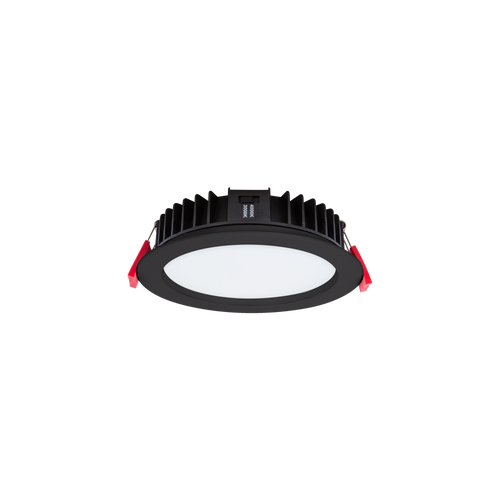

LEDE Premium Economy Large 9W/15W Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1750lm (See Spec Sheet)
Watts
9W or 15W
R774

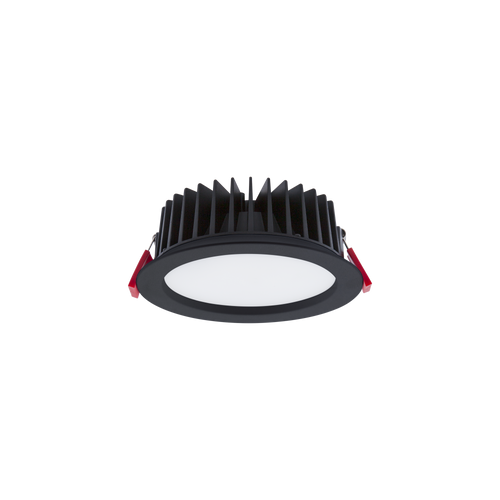

LEDE Premium Economy Large Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1800lm (See spec sheet)
Watts
18W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
9W or 15W
Lumens
1950lm (See Spec Sheet)
Beam Angle
100°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
55,000hrs (L80)
Ingress Protection
IP44
Cut Out
145mm
Diameter
160mm
Height
43mm
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
Adjustable 200mA or 350mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
200-350mA 15W Dimmable Constant Current DX Series Driver
Watts
8.4W-15W
Input
220-240V
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
