R774 B34
R774
- Checking stock...

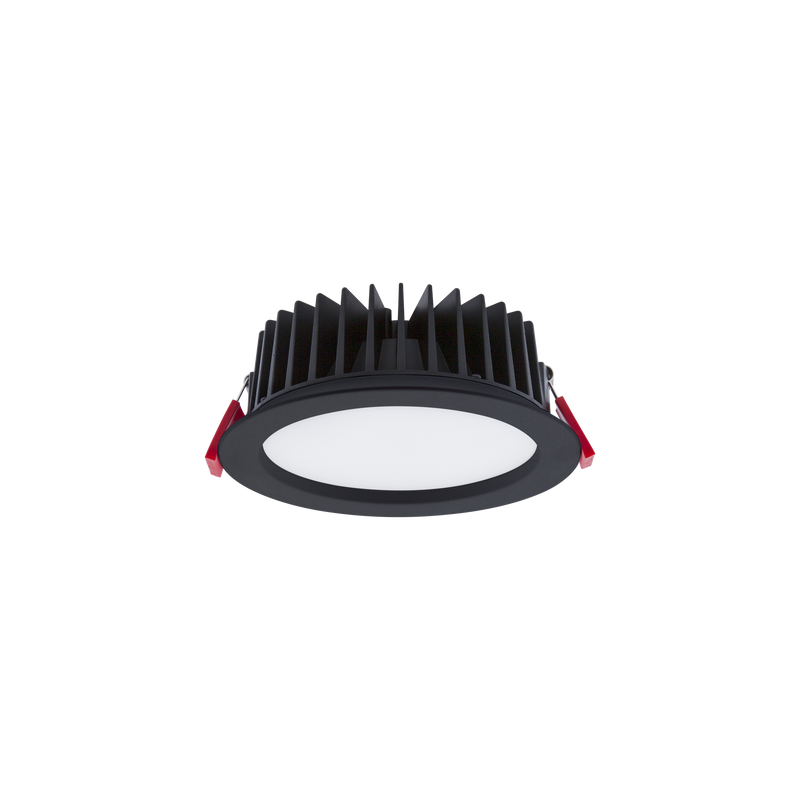

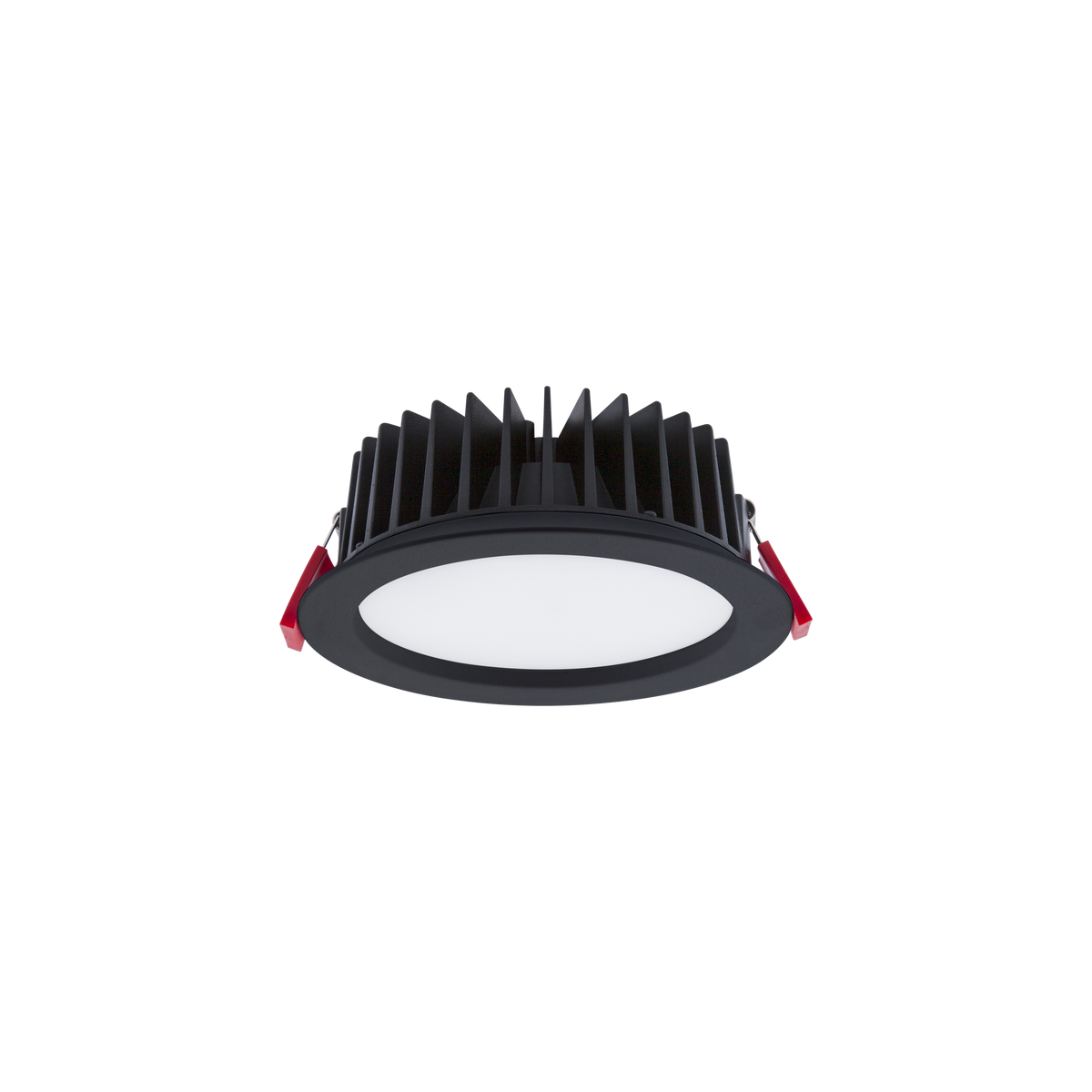

R774 B34 LEDE Premium Economy Large Downlight Kit Black 3000K / 4000K
Lumens
Watts
1800lm (See spec sheet)
18W
View Options
DCC260-DX-20W
Watts
10W-20W
Watts
10W-20W
Select Downlight
R774
LEDE Premium Economy Large Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1800lm (See spec sheet)
Watts
18W
R774
LEDE Premium Economy Large 9W/15W Downlight Kit White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1950lm (See Spec Sheet)
Watts
9W or 15W
R774
LEDE Premium Economy Large 9W/15W Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1750lm (See Spec Sheet)
Watts
9W or 15W
Specifications
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
18W
Lumens
1800lm (See spec sheet)
Beam Angle
100°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
52,000hrs (L90)
Ingress Protection
IP44
Cut Out
145mm
Diameter
160mm
Height
58mm
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
Clearance 1 Year Warranty
Driver

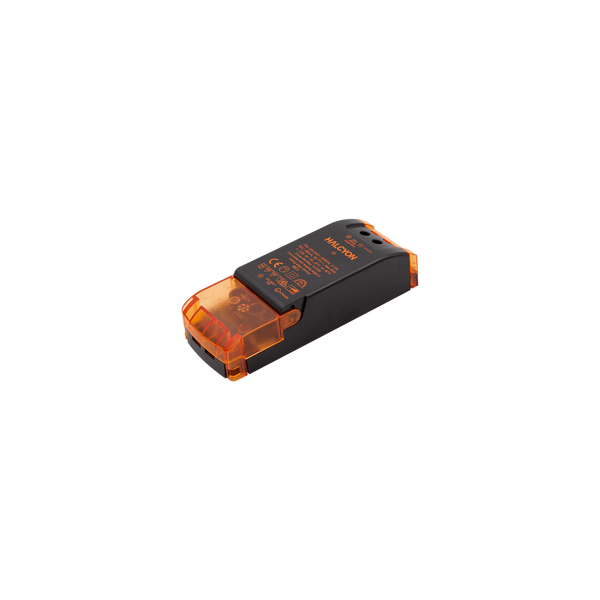

260mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
