R946 B3
R946
- Checking stock...

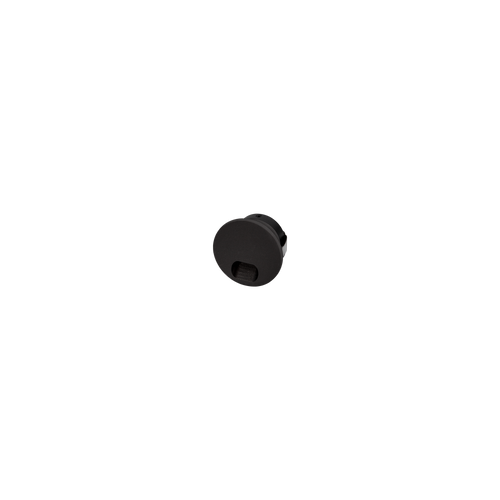

R946 B3 Mini Directional Round Black 3000K
Lumens
Watts
50lm
1.05W
View Options
Add Driver
driver not included
View Options
Select Step
R946
Mini Directional Round Black 3000K
Temp.
3000K Warm White
Cut out
35mm
Lumens
50lm
Watts
1.05W
R946
Mini Directional Round White 3000K
Temp.
3000K Warm White
Cut out
35mm
Lumens
50lm
Watts
1.05W
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DM-4W-IP
IP65 350mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
DCC350-DM-10W-IP
IP65 350mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC350-DX-6W
350mA 6W Dimmable Constant Current DX Series Driver
Watts
3.5W-6W
DCC350-DX-9W
350mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
DCC350-DX-12W
350mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
DCC350-DX-28W
350mA 28W Dimmable Constant Current DX Series Driver
Watts
14W-28W
Non Dimmable
DCC350-M-4W-IP
IP65 350mA 4W Constant Current Mini Non-dimmable Driver
Watts
1W-4W
DCC350-M-12W-IP
IP65 350mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
DCC350-6W
350mA 6W Constant Current Non-dimmable Driver
Watts
3W-6W
DCC350-12W
350mA 12W Constant Current Non-dimmable Driver
Watts
1W-12W
DCC350-20W
350mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
DCC350-40W
350mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
1.05W
Lumens
50lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP40
Cut Out
35mm
Diameter
45mm
Height
26mm
Classification
IC-F
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
