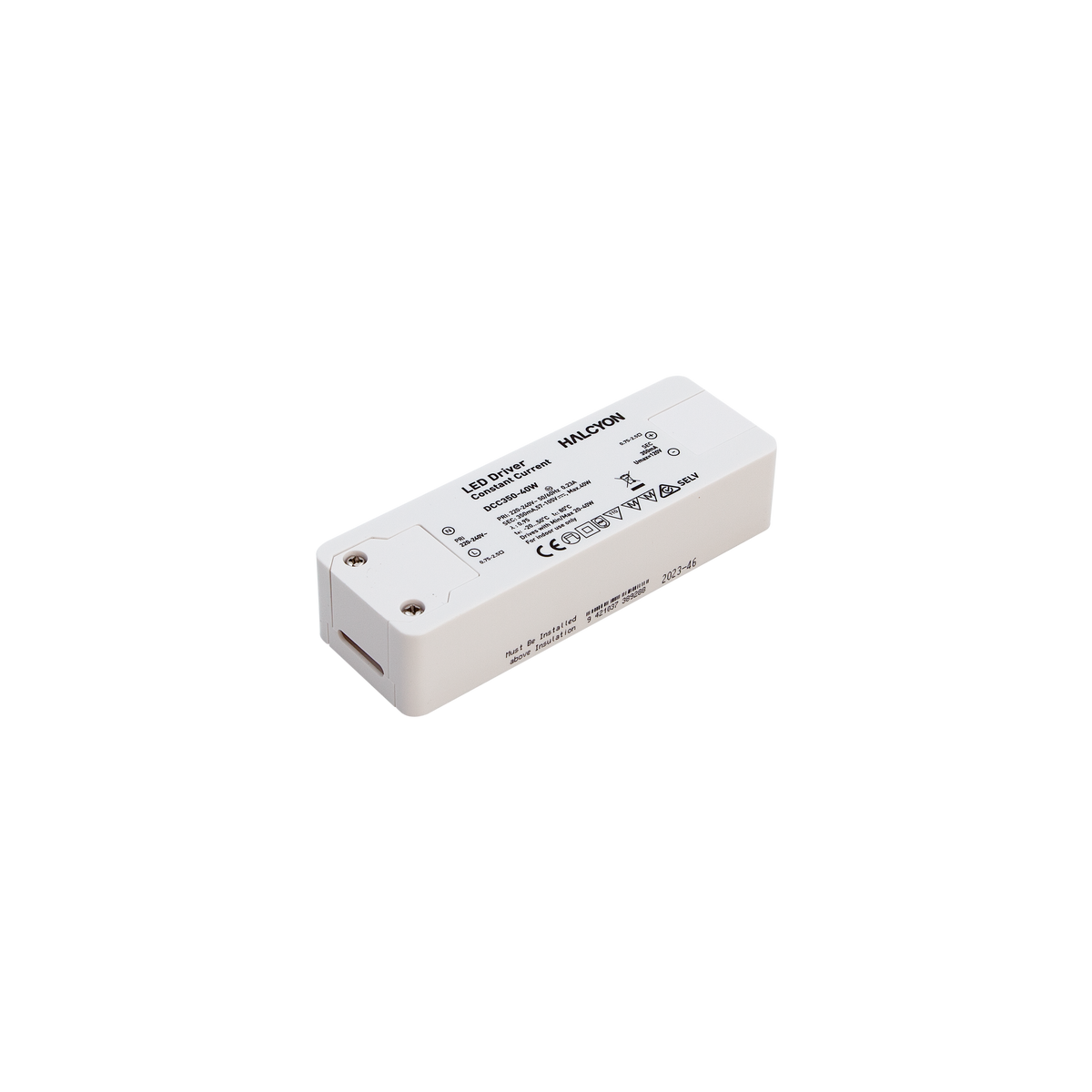

350mA 40W Constant Current Non-dimmable Driver

DCC350-40W

All DCC350-40W

DCC350-40W

  • Checking stock...
Driver Non-Dimmable Pri:240V Sec:57-105V DC 350mA CC 20-40W
Non dimmable
350mA 40W Constant Current Non-dimmable Driver

DCC350-40W 350mA 40W Constant Current Non-dimmable Driver

Watts

20W-40W

Watts

20W-40W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

350mA 40W Constant Current Non-dimmable Driver

Non dimmable

DCC350-40W

Watts

20W-40W

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP20

Height

28mm

Width

43mm

Length

127mm

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

57-105V

Driver Output Current

350mA

Ambient Operating Temperature

-20..+50°C

Power Factor

0.95

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
