DCC350-DX-6W
DCC350-DX-6W
- Checking stock...
Driver DX Series Phase-Cut Dimmable UID Pri:240V Sec:10-17V DC 350mA CC 3.5-6W
Dimmable (phase-cut)

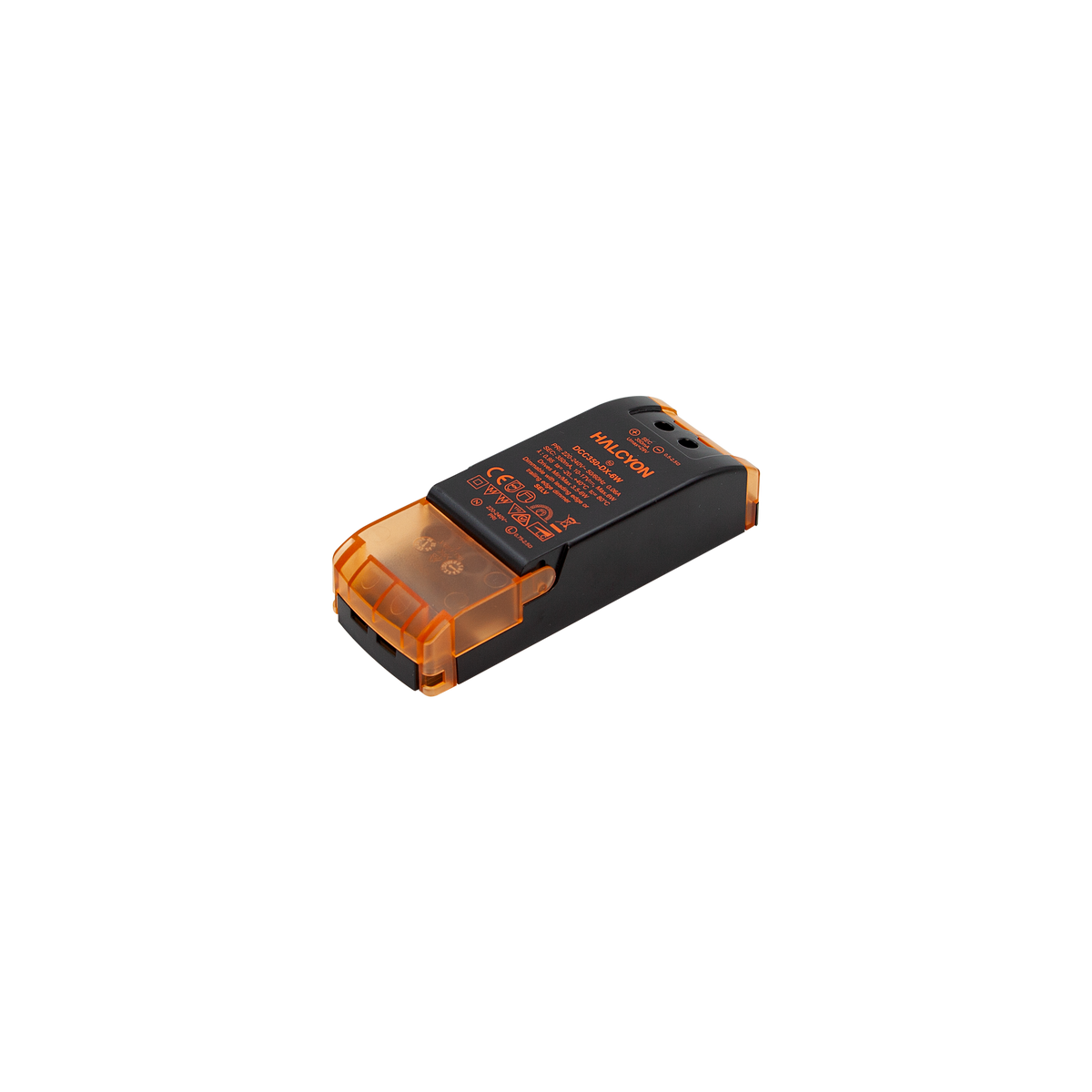

DCC350-DX-6W 350mA 6W Dimmable Constant Current DX Series Driver
Watts
3.5W-6W
Watts
3.5W-6W
Specifications
Watts
3.5W-6W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
10-17V
Driver Output Current
350mA
Installation Note
Suitable for Installation Under Insulation
Warranty
5 Year Warranty
