DCC350-M-12W-IP
DCC350-M-12W-IP
- Checking stock...
Driver Mini Non-Dimmable Pri:240V Sec:17-34V DC 350mA CC 6-12W IP65
Non dimmable

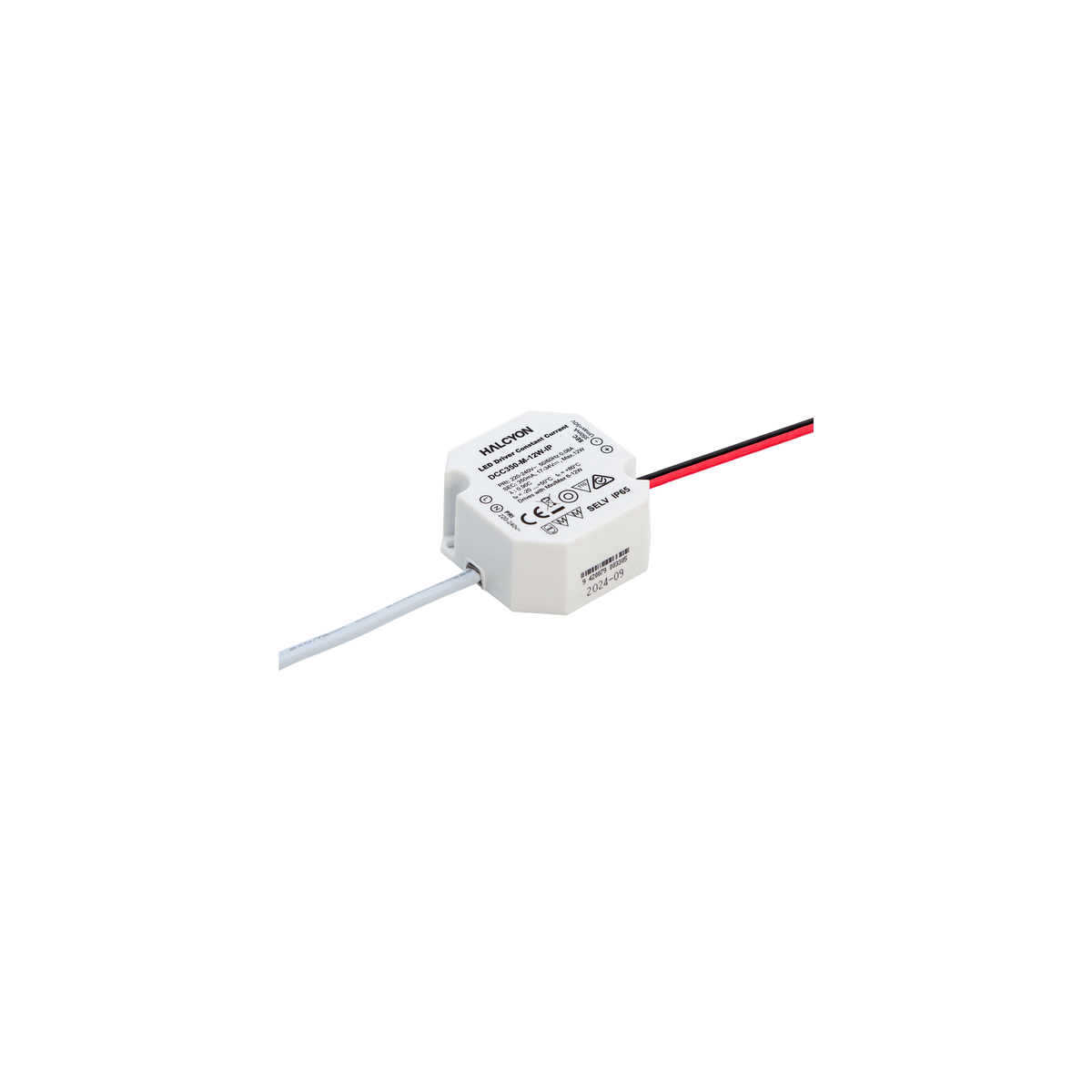

DCC350-M-12W-IP IP65 350mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
Watts
6W-12W
-
Go-Link Mousetrap Loop-in Loop-out
Specifications
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
Ingress Protection
IP65
Height
24mm
Width
48mm
Length
50mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
17-34V
Driver Output Current
350mA
Ambient Operating Temperature
-20..+50°C
Power Factor
0.90C
Installation Note
Suitable for Installation Under Insulation
Warranty
5 Year Warranty
