Driver DX Series Phase-Cut Dimmable UID Pri:240V Sec:13-26V DC 350mA CC 4.5-9W
Dimmable (phase-cut)

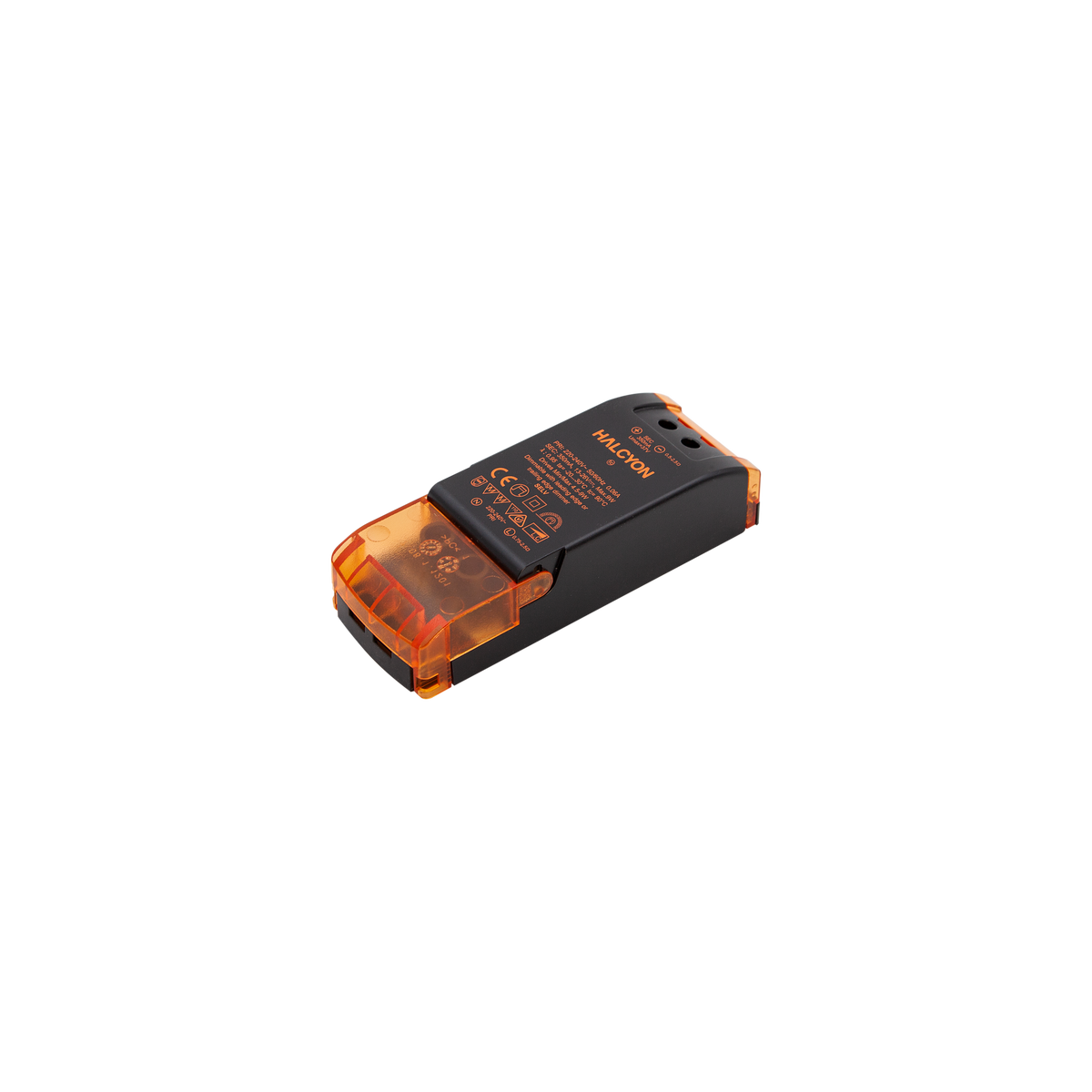

DCC350-DX-9W 350mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
Watts
4.5W-9W
Specifications
Watts
4.5W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
13-26V
Driver Output Current
350mA
Installation Note
Suitable for Installation Under Insulation
Warranty
5 Year Warranty
