R781
- Checking stock...
Configure your R781 2 options
- Brushed Aluminium (selected)
- White

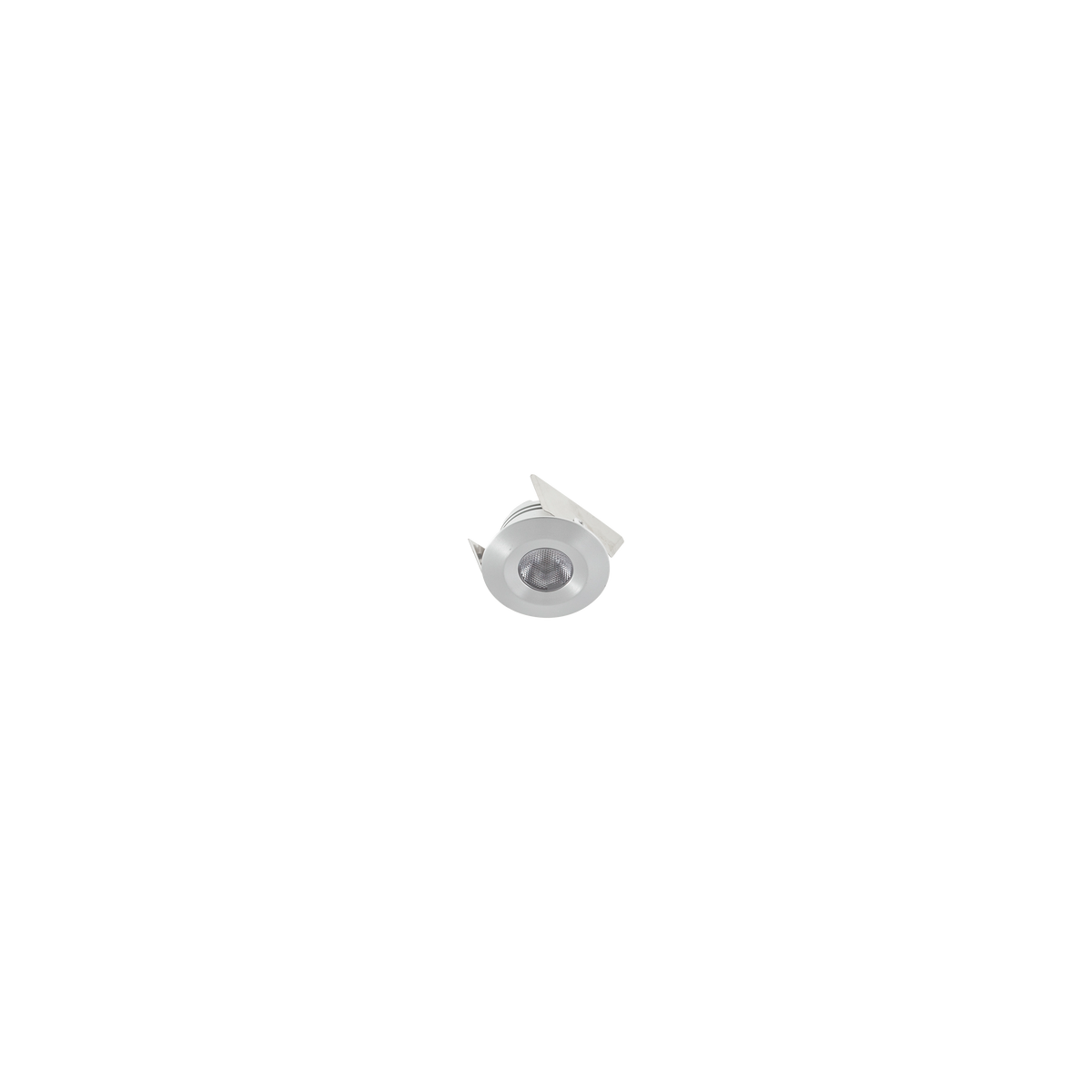

R781 BAW Mini Semi Narrow Beam Fixed Brushed Aluminium 3000K
Lumens
Watts
120lm
3W
Not included
Please select from options
Select Cabinet & Display
Mini Semi Narrow Beam Fixed Brushed Aluminium 3000K
Temp.
3000K Warm White
Cut out
37mm
Lumens
120lm
Watts
3W
Mini Semi Narrow Beam Fixed White 3000K
Temp.
3000K Warm White
Cut out
37mm
Lumens
120lm
Watts
3W
Select driver
driver sold separately. Please select below.
Dimmable
DCC700-DM-4W-IP
IP65 700mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
DCC700-DM-10W-IP
IP65 700mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC700-DX-12W
700mA 12W Dimmable Constant Current DX Series Driver
Watts
7W-12W
DCC700-DX-20W
700mA 20W Dimmable Constant Current DX Series Driver
Watts
10.5W-20W
DCC700-DX-30W
700mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
DCC700-D-40W
700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Non Dimmable
DCC700-M-4W-IP
IP65 700mA 4W Constant Current Mini Non-dimmable Driver
Watts
1.4W-4W
DCC700-M-12W-IP
IP65 700mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
Specifications
R781 BAW
Cut Out
37mm
Finish
Brushed Aluminium
Colour Temp
3000K Warm White
Watts
3W
Lumens
120lm
Beam Angle
36°
Input
700mA
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs
Ingress Protection
IP20
Diameter
41mm
Height
21mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
700mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
