R765 W34 Retrofit Medium Downlight Kit White 3000K / 4000K
Lumens
Watts
900lm (See spec sheet)
11W
View Options
DCC350-DX-12W
Watts
6W-12W
Watts
6W-12W
Select Downlights
R765

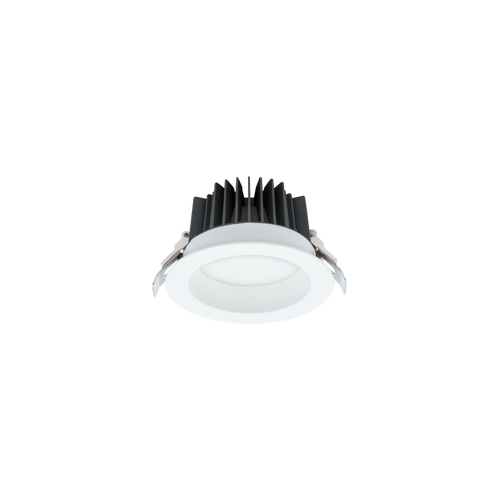

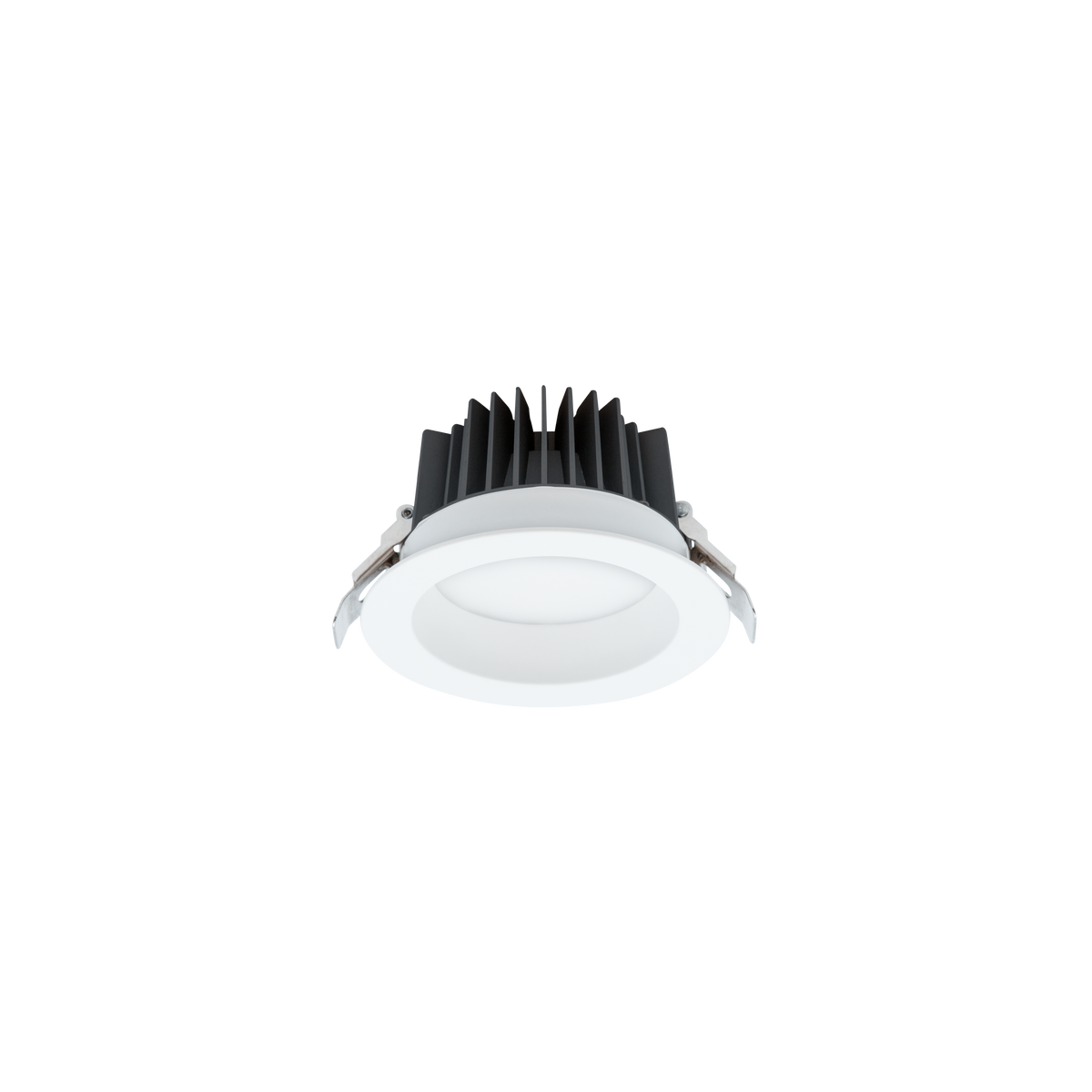

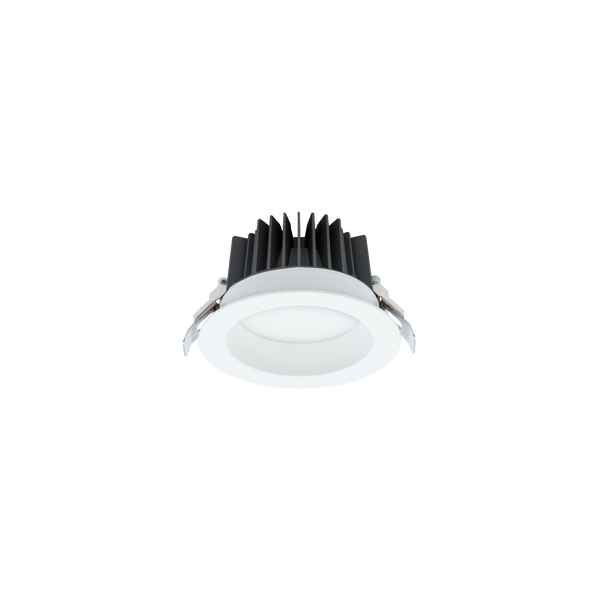

Retrofit Medium Downlight Kit White 3000K / 4000K
Temp.
Selectable 3000K Warm White or 4000K Natural White
Cut out
100-110mm
Lumens
900lm (See spec sheet)
Watts
11W
R765

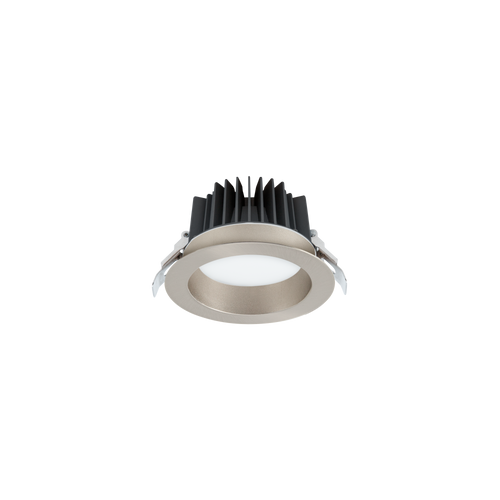

Retrofit Medium Downlight Kit Brushed Chrome 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
100-110mm
Lumens
900lm (See spec sheet)
Watts
11W
Specifications
Finish
White
Colour Temp
Selectable 3000K Warm White or 4000K Natural White
Watts
11W
Lumens
900lm (See spec sheet)
Beam Angle
90°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP44
Cut Out
100-110mm
Diameter
120mm
Height
65mm
Binning
SDCM 5
TLAs
"Flicker-free", PstLM ≤1.0; SVM ≤0.4
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
350mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver

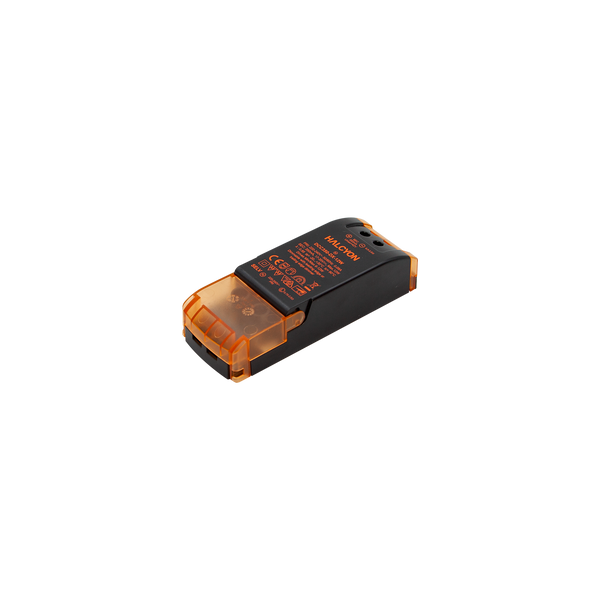

350mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
