R765 BC34
R765
- Checking stock...

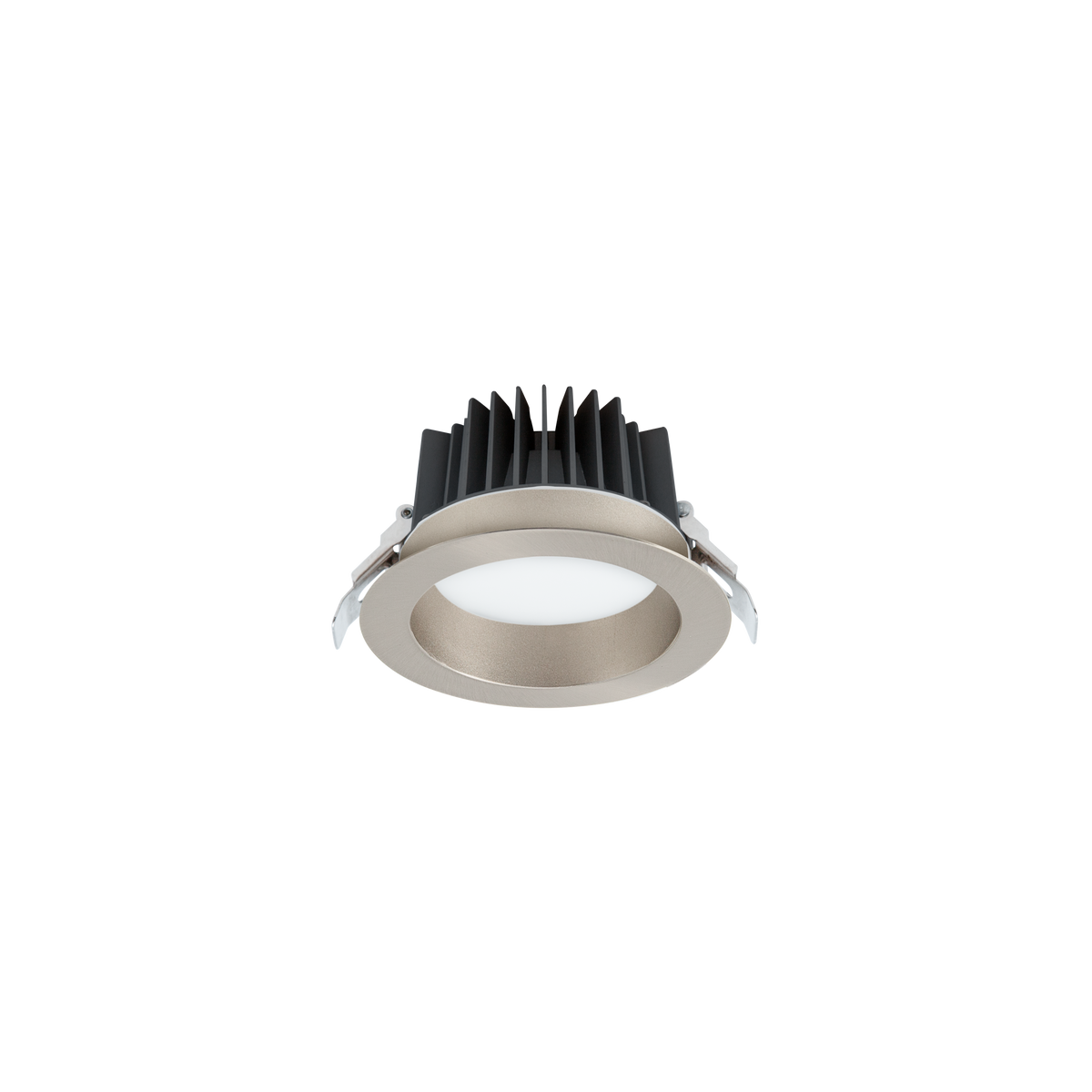

R765 BC34 Retrofit Medium Downlight Kit Brushed Chrome 3000K / 4000K
Lumens
Watts
900lm (See spec sheet)
11W
View Options
DCC350-DX-12W
Watts
6W-12W
Watts
6W-12W
Select Downlights
R765

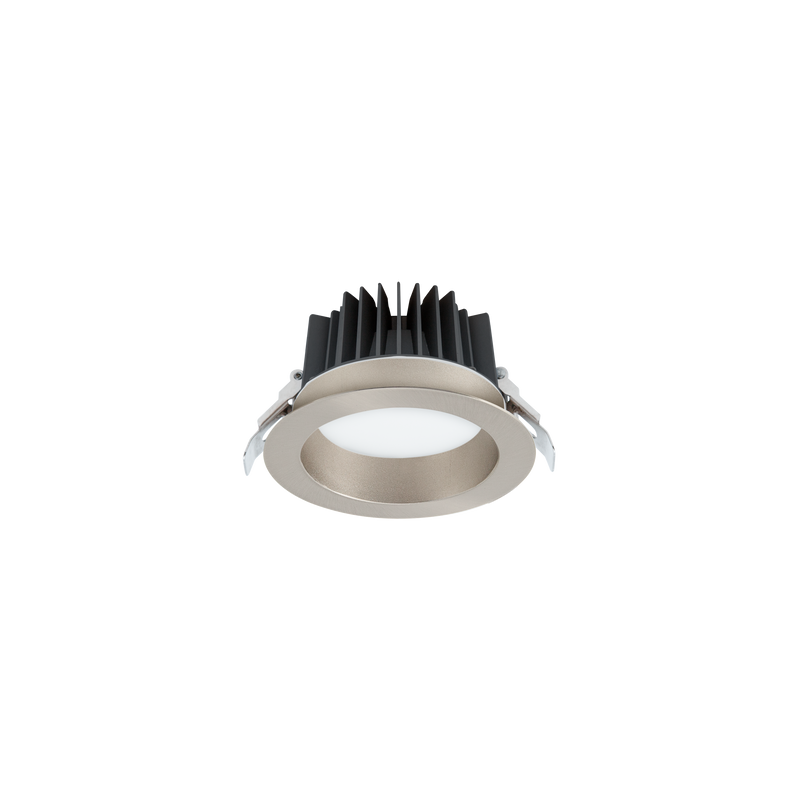

Retrofit Medium Downlight Kit Brushed Chrome 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
100-110mm
Lumens
900lm (See spec sheet)
Watts
11W
R765

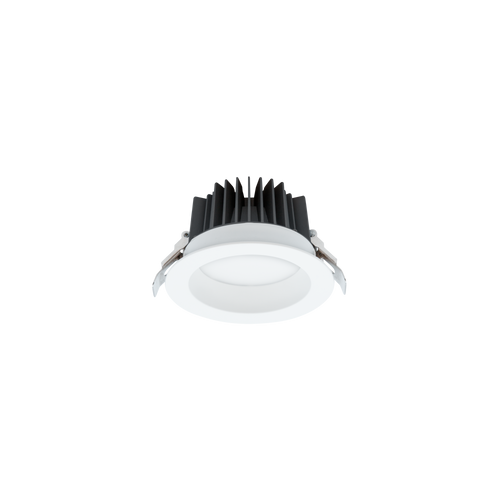

Retrofit Medium Downlight Kit White 3000K / 4000K
Temp.
Selectable 3000K Warm White or 4000K Natural White
Cut out
100-110mm
Lumens
900lm (See spec sheet)
Watts
11W
Specifications
Finish
Brushed Chrome
Colour Temp
3000K or 4000K (Selectable)
Watts
11W
Lumens
900lm (See spec sheet)
Beam Angle
90°
Input
240V
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP44
Cut Out
100-110mm
Diameter
120mm
Height
65mm
Binning
SDCM 5
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
350mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver

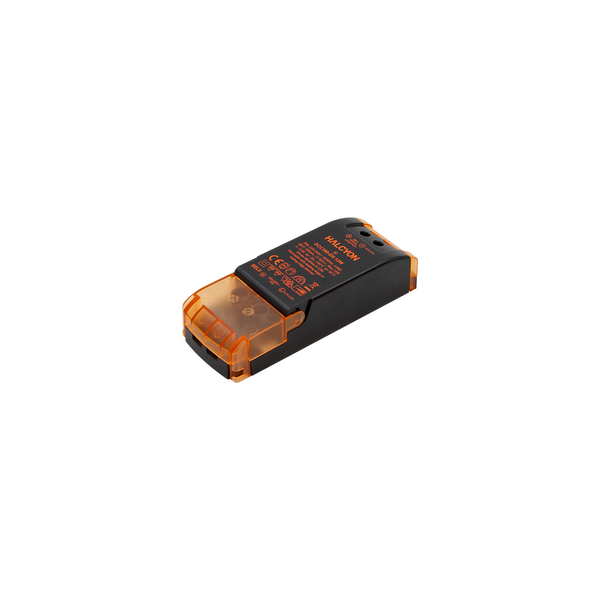

350mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
Downloads
