R730 B4K
R730
- Checking stock...

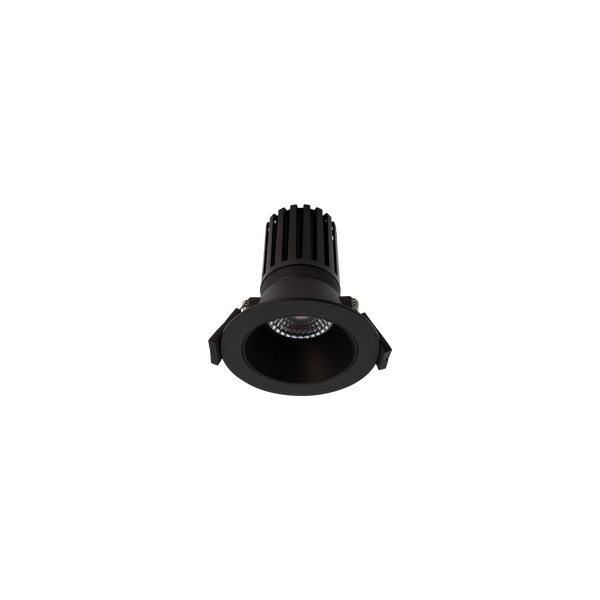

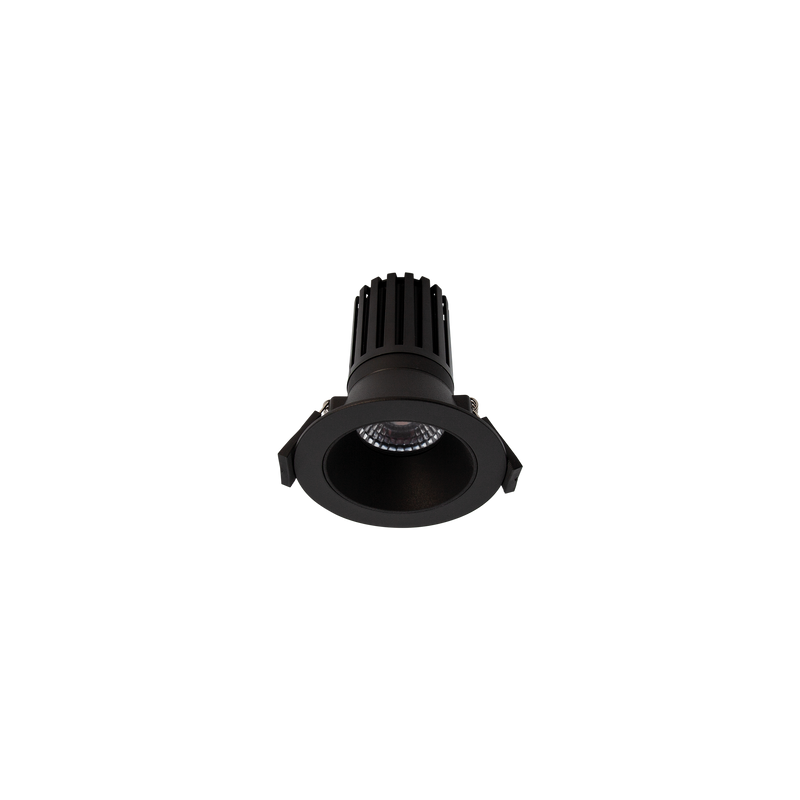

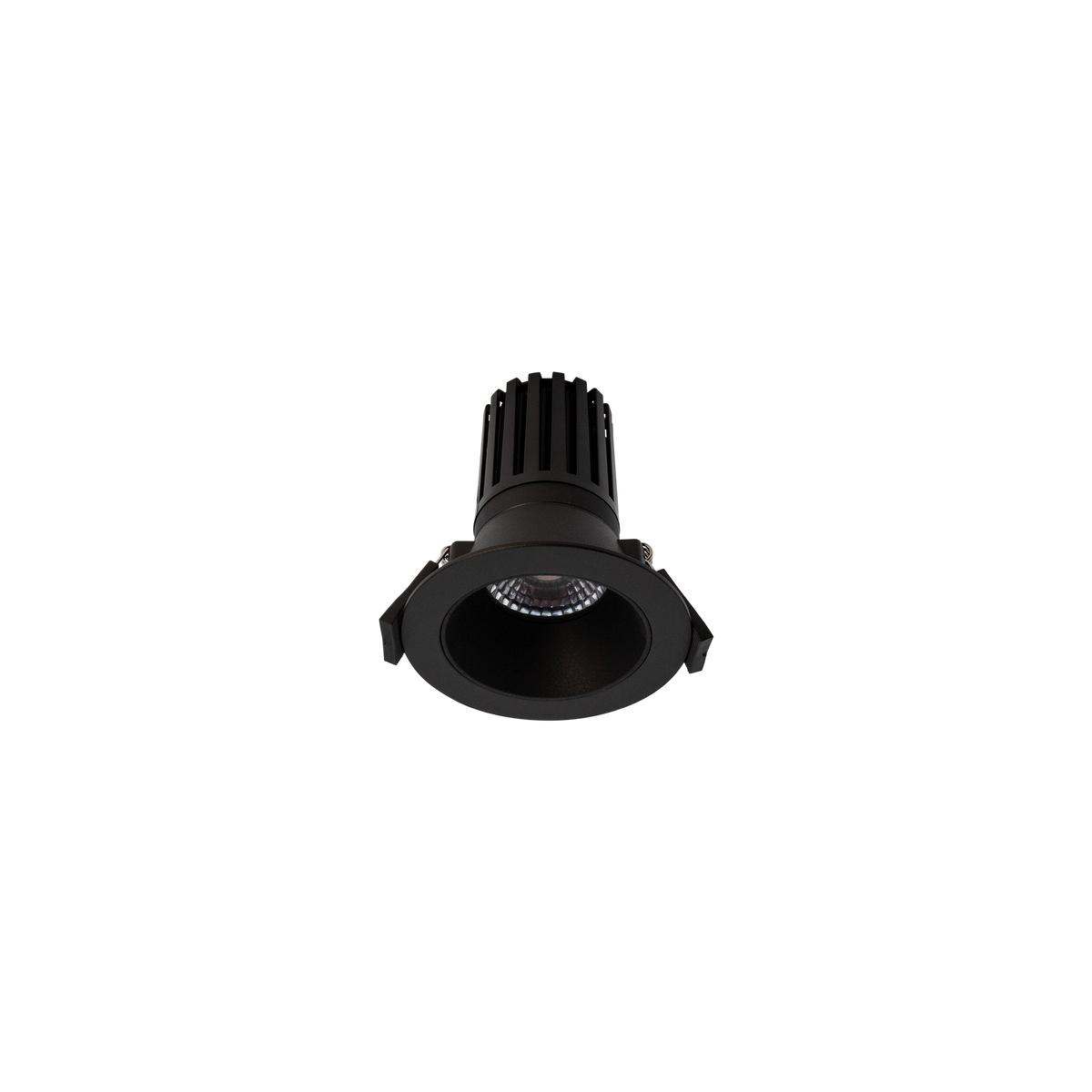

R730 B4K Design Standard Small Downlight Kit Black 4000K
Lumens
Watts
860lm
9.5W
View Options
DCC230-DX-9W
Watts
4.6W-9W
Watts
4.6W-9W
Select Downlights
R730
Design Standard Small Downlight Kit Black 4000K
Temp.
4000K Natural White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
860lm
Watts
9.5W
R730
Design Standard Small Downlight Kit White 2700K
Temp.
2700K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
800lm
Watts
9.5W

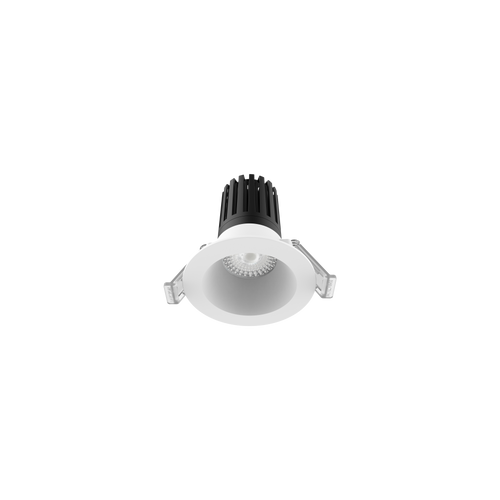

R730
Design Standard Small Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
900lm
Watts
9.5W
R730
Design Standard Small Downlight Kit White 4000K
Temp.
4000K Natural White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
920lm
Watts
9.5W
R730
Design Standard Downlight Kit White 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
880lm (See Spec Sheet)
Watts
10.5W
R730
Design Standard Small Downlight Kit Black 2700K
Temp.
2700K Warm White
Cut out
72-82mm (suitable for retrofit applications)
Lumens
760lm
Watts
9.5W
R730
Design Standard Small Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
840lm
Watts
9.5W
R730
Design Standard Downlight Kit Black 2700-6500K Tunable White Casambi
Temp.
Tunable White 2700K to 6500K
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
820lm (See Spec Sheet)
Watts
10.5W
Specifications
Finish
Black
Colour Temp
4000K Natural White
Watts
9.5W
Lumens
860lm
Beam Angle
50°
Dimming / Control
Dimmable
CRI
90
Lifespan
60,000hrs (L80 B30)
Ingress Protection
IP54
Cut Out
72-82mm (Suitable for Retrofit Applications)
Diameter
93mm
Height
104mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
230mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
230mA 9W Dimmable Constant Current DX Series Driver
Watts
4.6W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Finish
Black
Height
28mm
Width
45mm
Length
120mm
