R730
- Checking stock...
Configure your R730 8 options
- White
- Black (selected)
R730-B3KV2 Design Standard Small Downlight Kit V2 Black 3000K
Lumens
Watts
860lm
9.5W
DCC230-DX-9W 230mA 9W Dimmable Constant Current DX Series Driver
Watts
4.6W-9W
Watts
4.6W-9W
Select Downlights

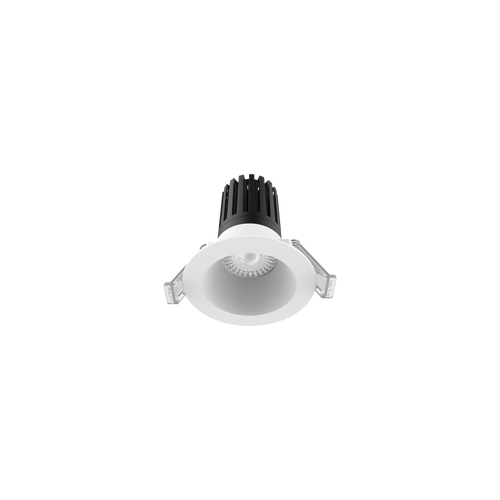

Design Standard Small Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
900lm
Watts
9.5W
Design Standard Small Downlight Kit White 2700K
Temp.
2700K Warm White
Cut out
72-82mm
Lumens
800lm
Watts
9.5W
Design Standard Small Downlight Kit White 4000K
Temp.
4000K Natural White
Cut out
72-82mm
Lumens
920lm
Watts
9.5W
Design Standard Downlight Kit White 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Cut out
72-82mm
Lumens
880lm (See Spec Sheet)
Watts
10.5W
Design Standard Small Downlight Kit Black 2700K
Temp.
2700K Warm White
Cut out
72-82mm
Lumens
830lm
Watts
9.5W

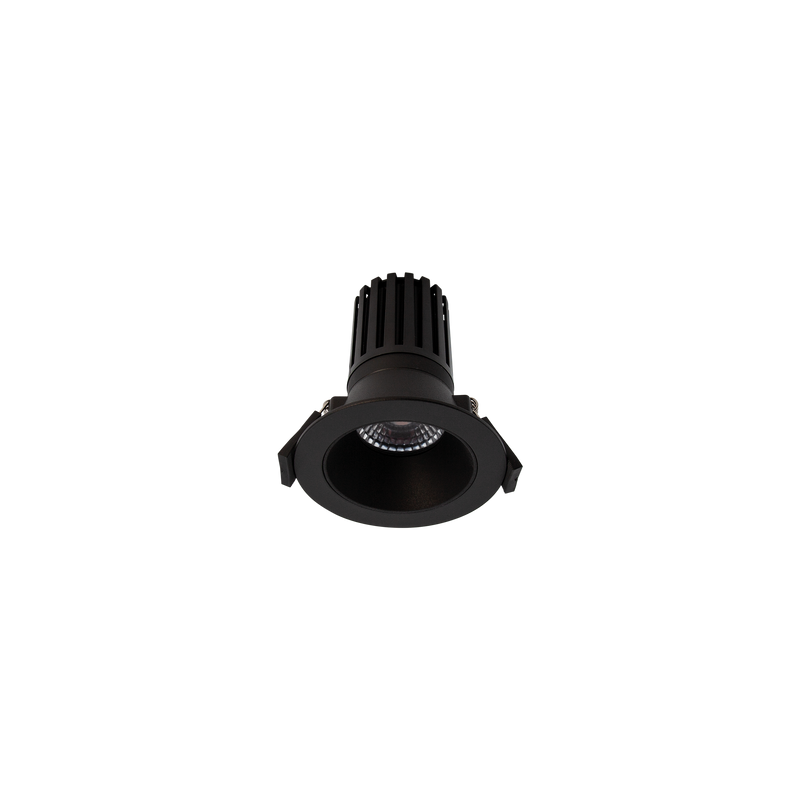

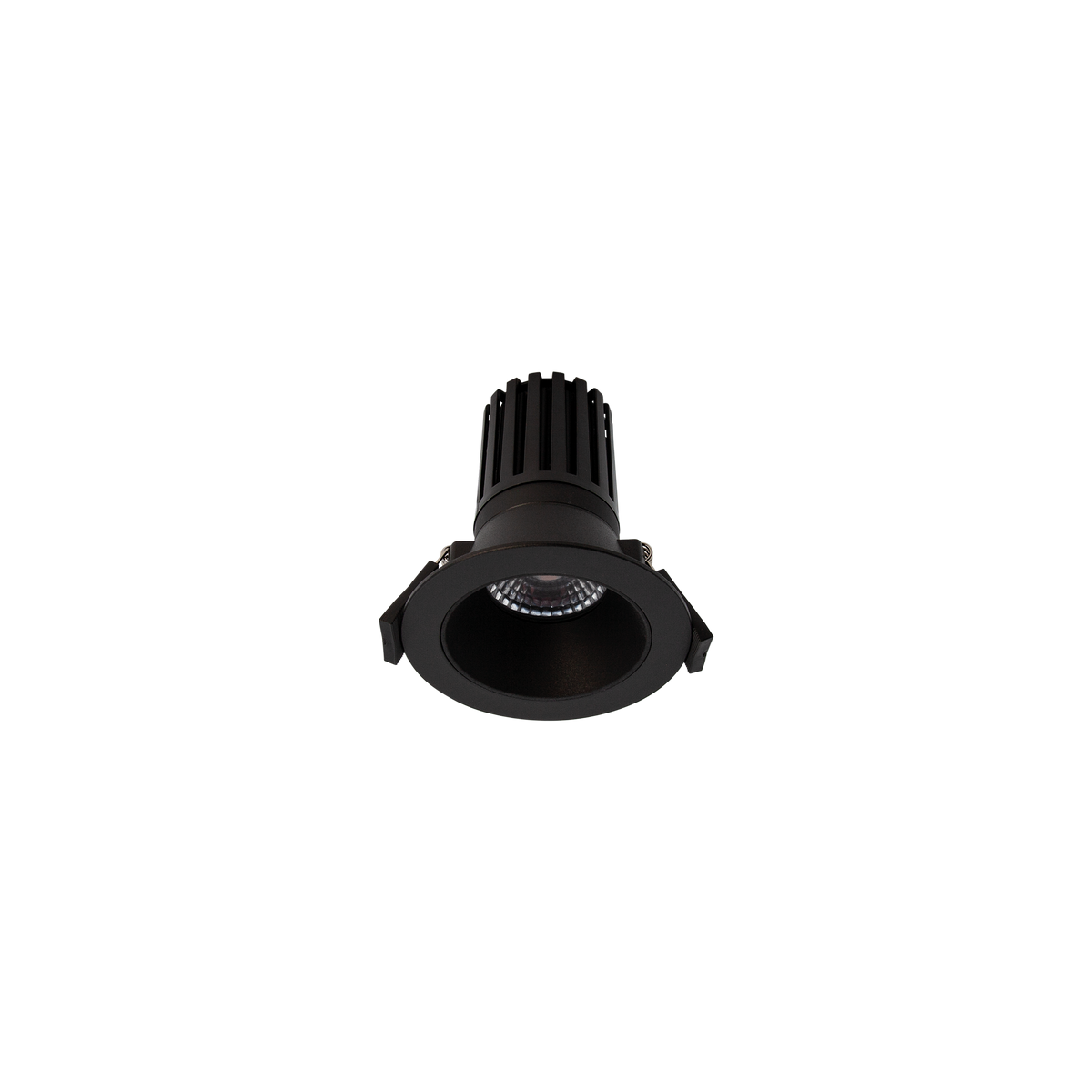

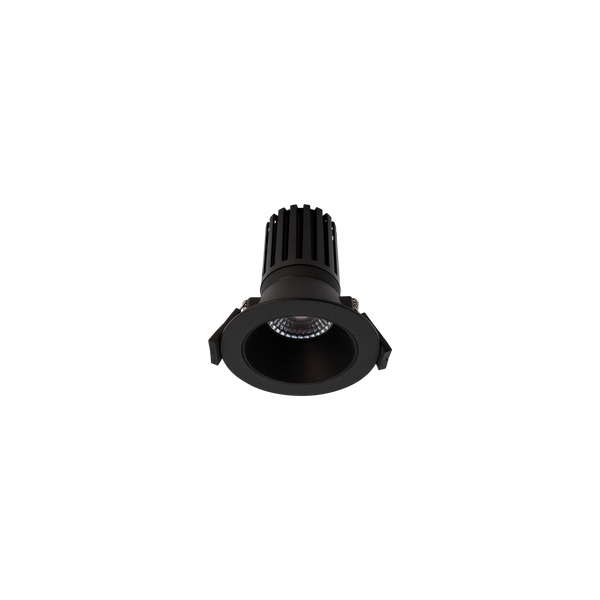

Design Standard Small Downlight Kit V2 Black 3000K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
860lm
Watts
9.5W
Design Standard Small Downlight Kit Black 4000K
Temp.
4000K Natural White
Cut out
72-82mm
Lumens
930lm
Watts
9.5W
Design Standard Downlight Kit Black 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Cut out
72-82mm
Lumens
820lm (See Spec Sheet)
Watts
10.5W
Specifications
R730-B3KV2
Cut Out
72-82mm
Finish
Black
Colour Temp
3000K Warm White
Watts
9.5W
Lumens
860lm
Beam Angle
50°
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP65 (room side)
Diameter
93mm
Height
105mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC230-DX-9W
Watts
4.6W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Finish
Black
Height
28mm
Width
45mm
Length
120mm
Classification
Suitable for Installation Under Insulation
