R681 WWL
R681
- Checking stock...

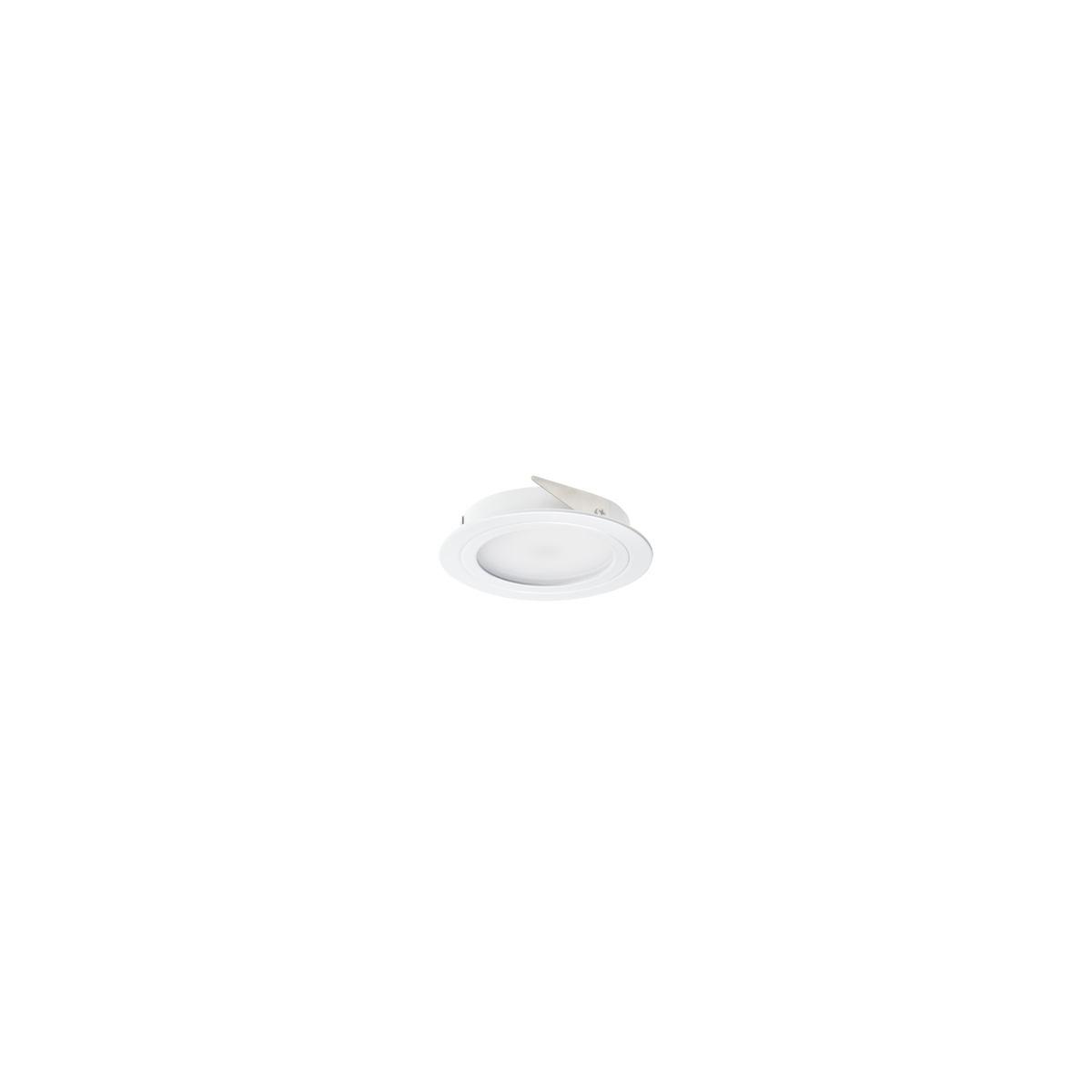

R681 WWL Shallow Retrofit 12V AC/DC White 3000K
Lumens
Watts
170lm
2W
View Options
Add Driver
driver not included
View Options
Select Cabinet & Display
R681
Shallow Retrofit 12V AC/DC White 3000K
Temp.
3000K Warm White
Cut out
58mm
Lumens
170lm
Watts
2W
R681
Shallow Retrofit 12V AC/DC White 4000K
Temp.
4000K Natural White
Cut out
58mm
Lumens
170lm
Watts
2W
R681
Shallow Retrofit 12V AC/DC Silver 4000K
Temp.
4000K Natural White
Cut out
58mm
Lumens
170lm
Watts
2W
R681
Shallow Retrofit 12V AC/DC Silver 3000K
Temp.
3000K Warm White
Cut out
58mm
Lumens
170lm
Watts
2W

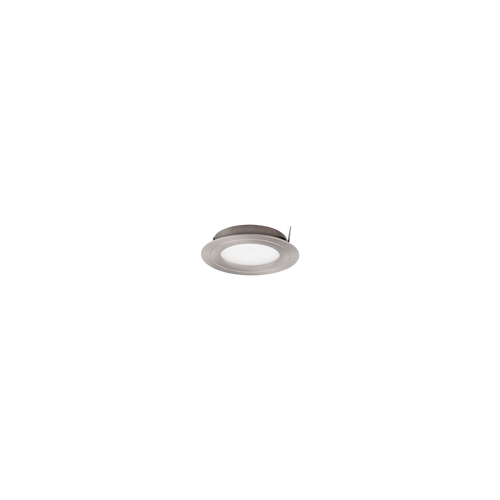

R681
Shallow Retrofit 12V AC/DC Brushed Chrome 3000K
Temp.
3000K Warm White
Cut out
58mm
Lumens
170lm
Watts
2W

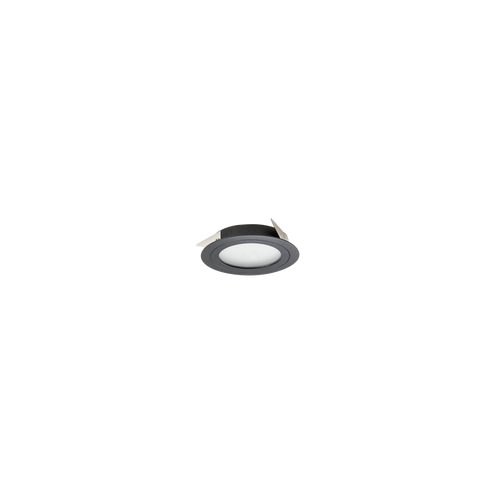

R681
Shallow Retrofit 12V AC/DC Black 4000K
Temp.
4000K Natural White
Cut out
58mm
Lumens
170lm
Watts
2W
R681
Shallow Retrofit 12V AC/DC Black 3000K
Temp.
3000K Warm White
Cut out
58mm
Lumens
170lm
Watts
2W
R681
Shallow Retrofit 12V AC/DC Brushed Chrome 4000K
Temp.
4000K
Cut out
58mm
Lumens
170lm
Watts
2W
Select driver
driver sold separately. Please select below.
Dimmable
DCV12-D-50W
12V 50W Constant Voltage Phase-cut Dimmable Driver
Watts
12W-50W

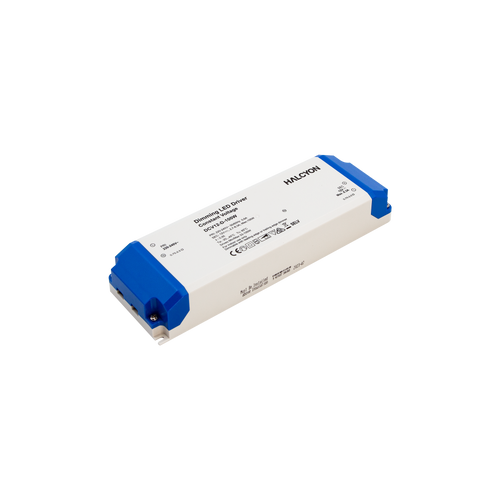

DCV12-D-100W
12V 100W Constant Voltage Phase-cut Dimmable Driver
Watts
33W-100W
Non Dimmable
DCV12-M-4W-IP
IP65 12V 4W Constant Voltage Mini Non-dimmable Driver
Watts
0W-4W
DCV12-M-12W-IP
IP65 12V 12W Constant Voltage Mini Non-dimmable Driver
Watts
0W-12W
DCV12-20W
12V 20W Constant Voltage Non-dimmable Driver
Watts
0W-20W

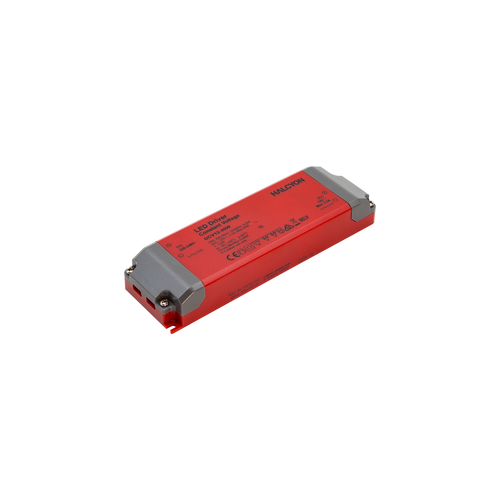

DCV12-40W
12V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W

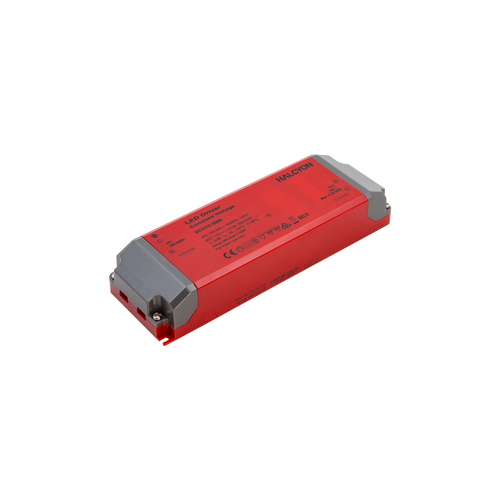

DCV12-50W
12V 50W Constant Voltage Non-dimmable Driver
Watts
0W-50W

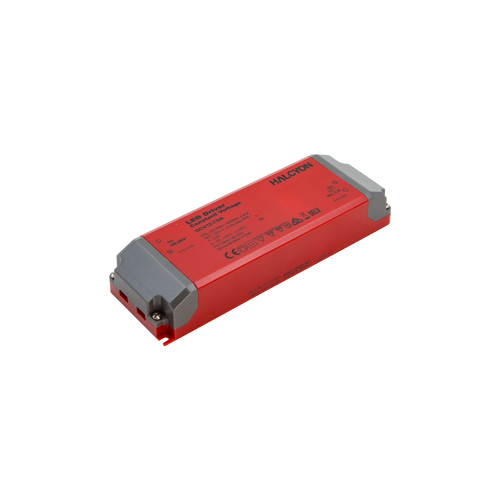

DCV12-75W
12V 75W Constant Voltage Non-dimmable Driver
Watts
0W-75W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
2W
Lumens
170lm
Beam Angle
120°
Input
12V
Dimming / Control
Non-Dimmable
CRI
82
Lifespan
50,000hrs
Cut Out
58mm
Diameter
70mm
Height
15mm
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
Downloads
