DCC800A-DD-34W-GL-PNL
DCC800A-DD-34W-GL-PNL
- Custom Build - Request Availability

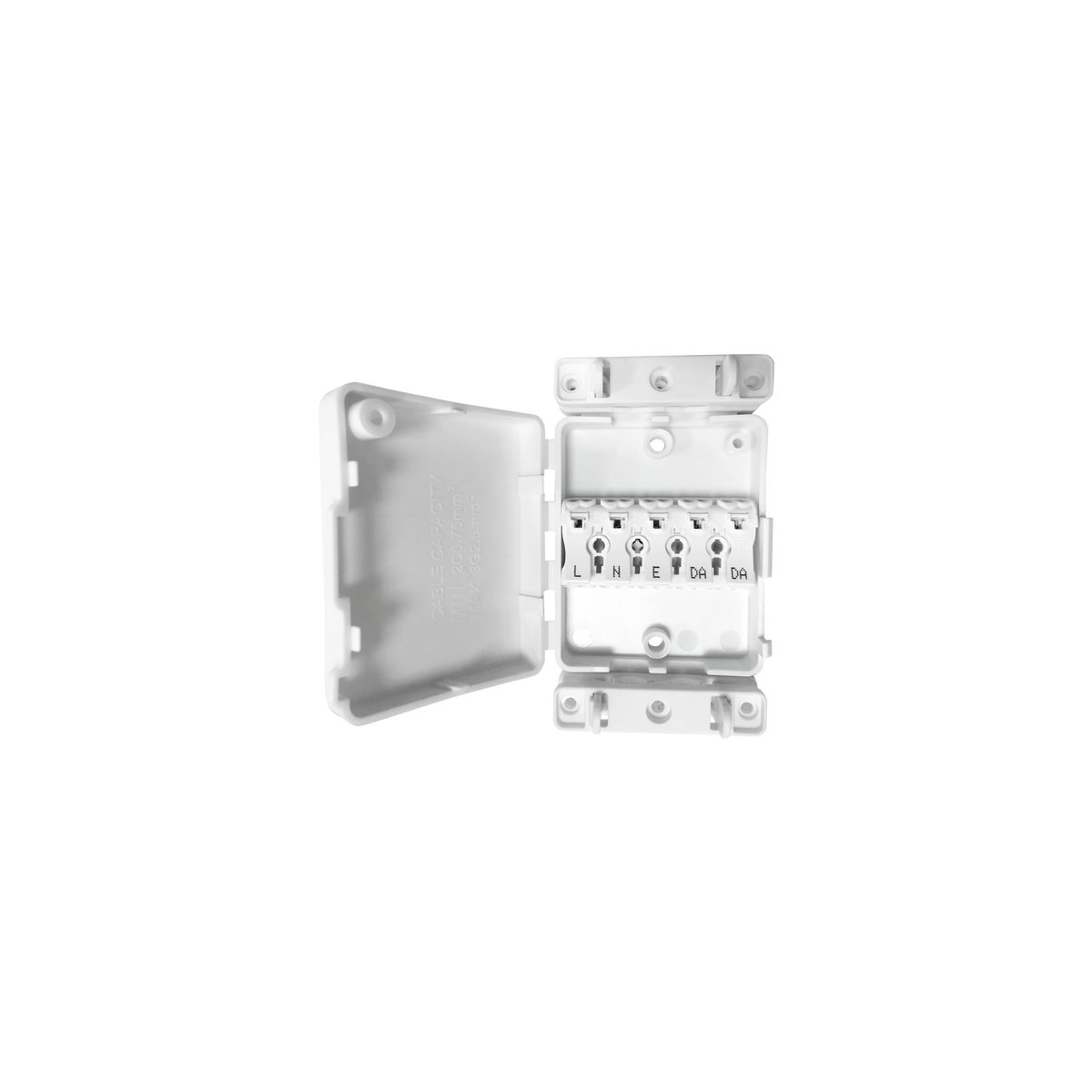

Driver Dali Pri:240V Sec: 10-42V DC Preset 800mA 33.6W c/w QC Panel Secondary Cable, Pre-wired Go-link 5 pin speed connector, 1.5m Lead, 2 Pin Plug
Dali

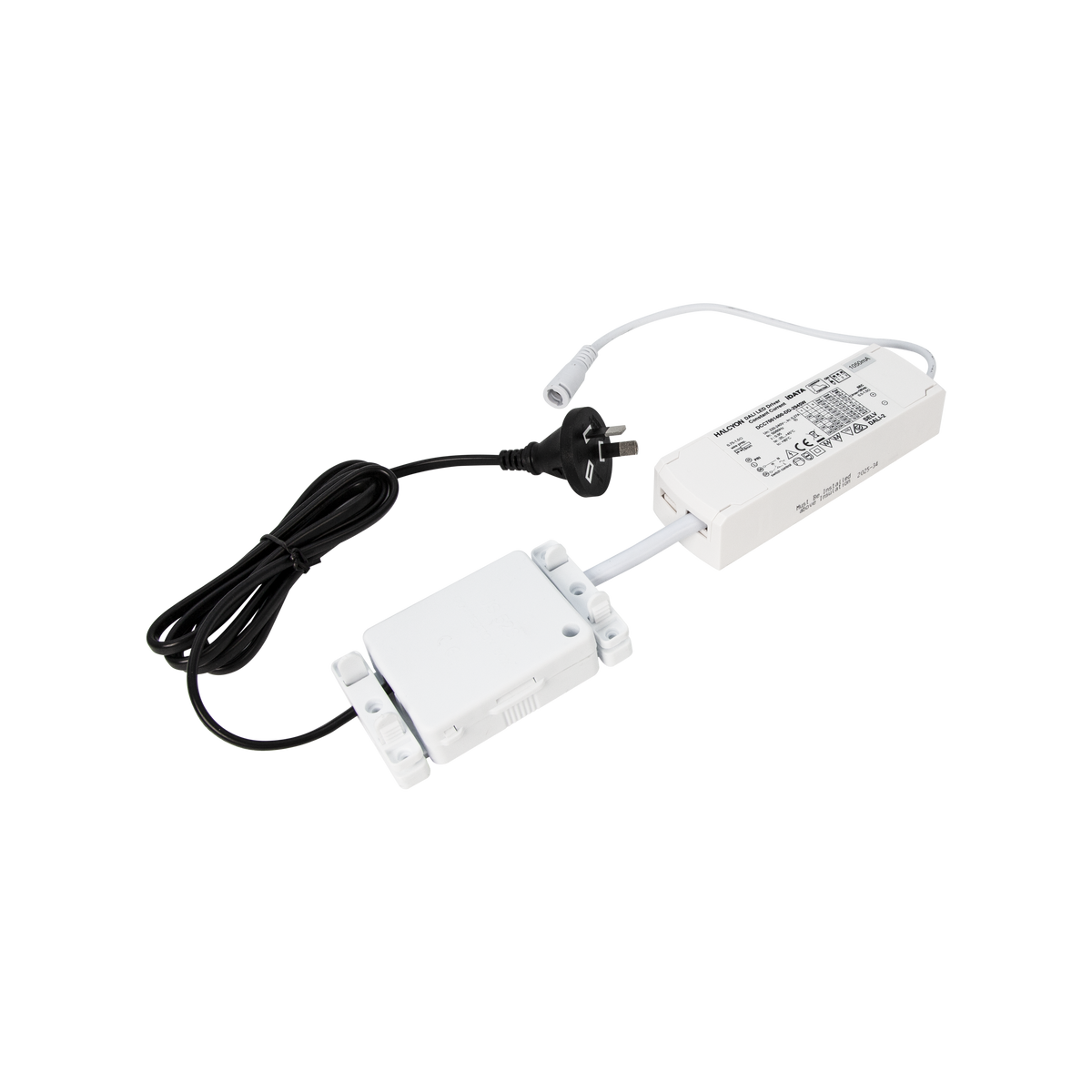

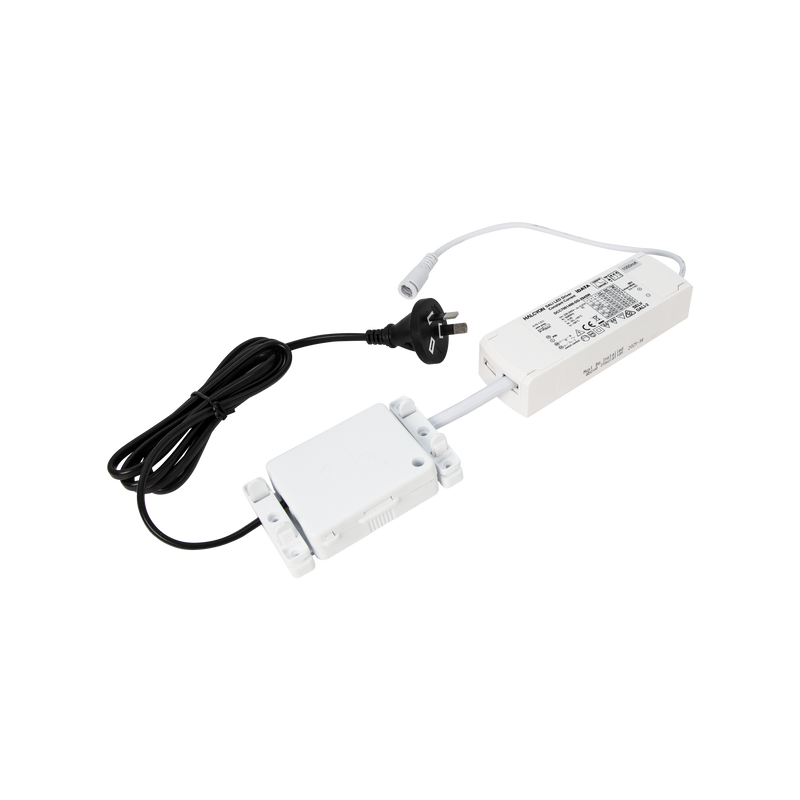

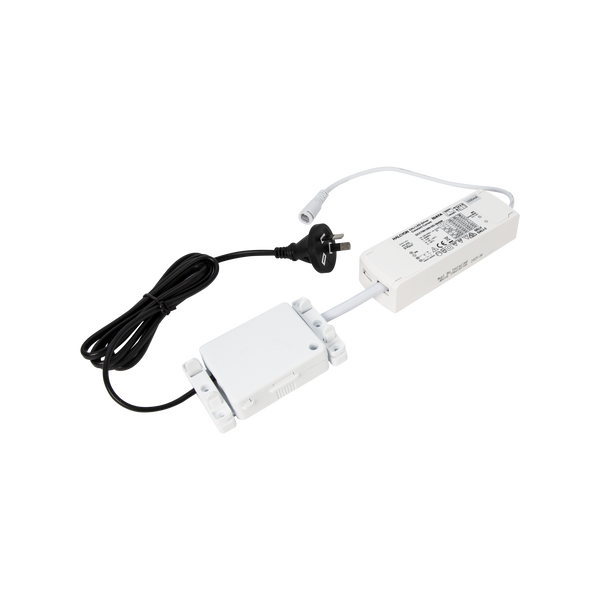

DCC800A-DD-34W-GL-PNL 800mA 34W Constant Current Dali Driver
Watts
8-33.6W
Watts
8-33.6W
Specifications
Watts
8-33.6W
Input
220-240V 50/60Hz
Dimming / Control
Dali
Height
28mm
Width
44mm
Length
137mm
Material
PC
Electrical Class
Class II
Driver Output Voltage
10-42V
Driver Output Current
800mA
Ambient Operating Temperature
-20..+45°C
Weight
190g
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
