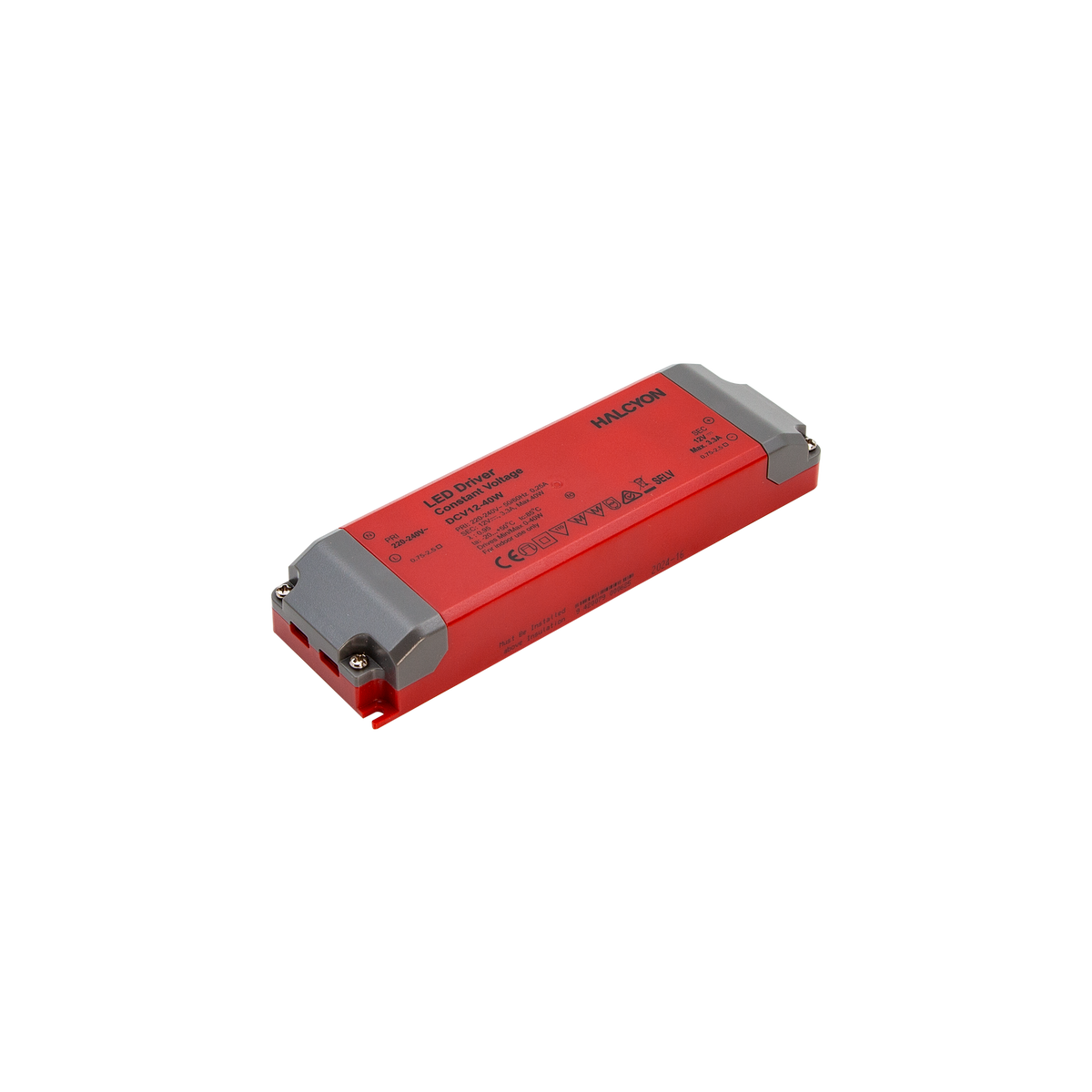

12V 40W Constant Voltage Non-dimmable Driver

DCV12-40W

All DCV12-40W

DCV12-40W

  • Checking stock...
Driver Non-Dimmable Pri:240V Sec:12V DC CV 0-40W
Non dimmable
12V 40W Constant Voltage Non-dimmable Driver

DCV12-40W 12V 40W Constant Voltage Non-dimmable Driver

Watts

0W-40W

Watts

0W-40W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

12V 40W Constant Voltage Non-dimmable Driver

Non dimmable

DCV12-40W

Watts

0W-40W

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP20

Height

24mm

Width

52mm

Length

166mm

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

12V

Driver Output Current

0-3.3A

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
