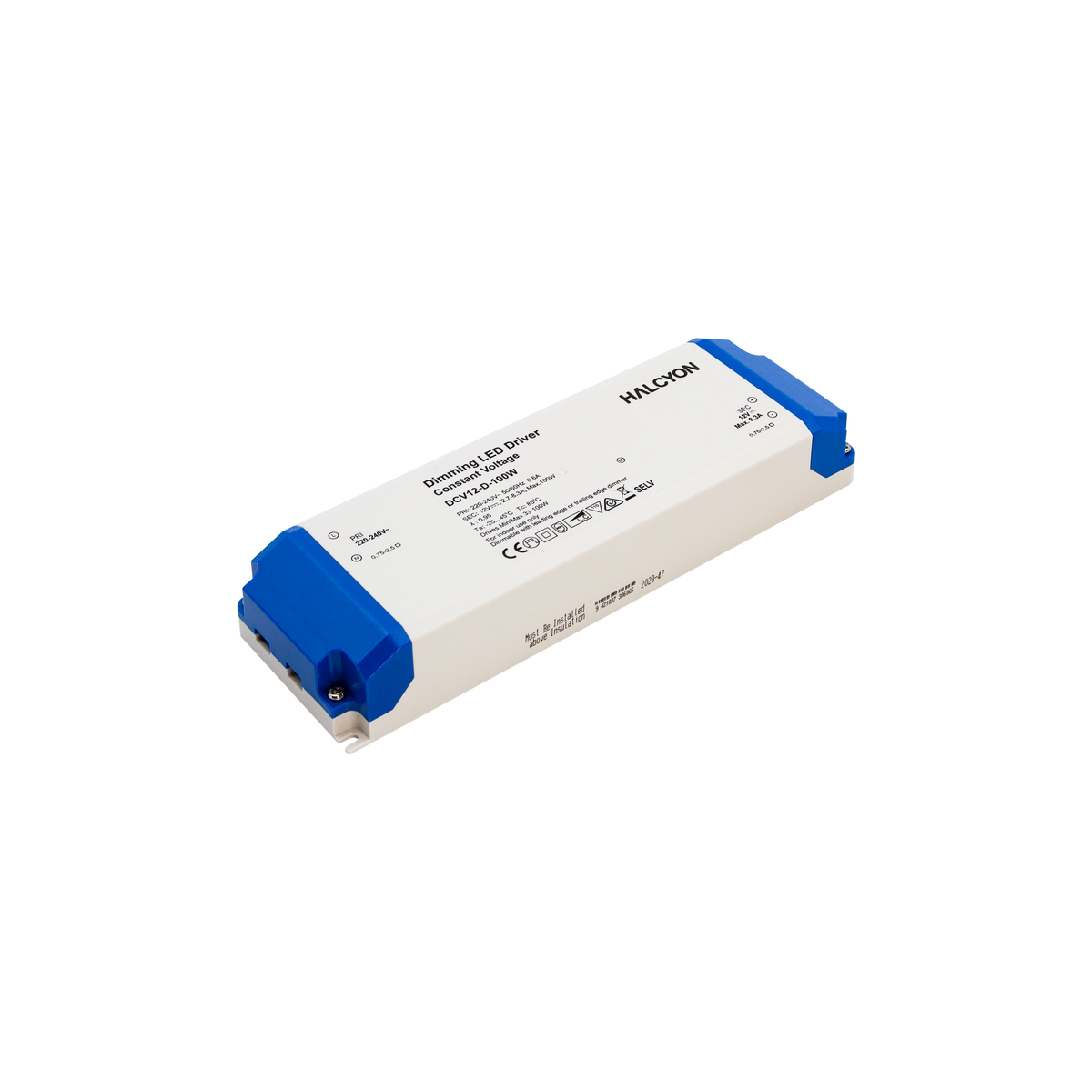

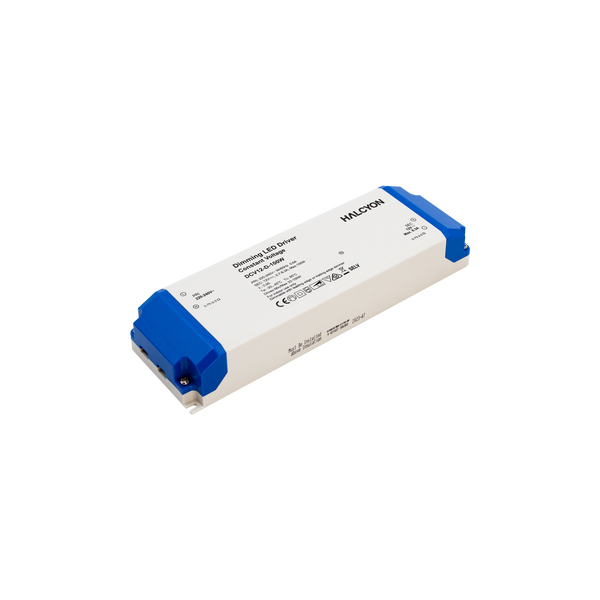

12V 100W Constant Voltage Phase-cut Dimmable Driver

DCV12-D-100W

All DCV12-D-100W

DCV12-D-100W

  • Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec:12V DC CV 33-100W
Dimmable (phase-cut)
12V 100W Constant Voltage Phase-cut Dimmable Driver

DCV12-D-100W 12V 100W Constant Voltage Phase-cut Dimmable Driver

Watts

33W-100W

Watts

33W-100W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

12V 100W Constant Voltage Phase-cut Dimmable Driver

Dimmable (phase-cut)

DCV12-D-100W

Watts

33W-100W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

34mm

Width

67mm

Length

210mm

Electrical Class

Class II

Driver Output Voltage

12V

Driver Output Current

2.7-8.3A

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
