DCC900A-DD-38W-GL-PNL
DCC900A-DD-38W-GL-PNL
- Custom Build - Request Availability
Driver Dali Pri:240V Sec: 10-42V DC Preset 900mA 37.8W c/w QC Panel Secondary Cable, Pre-wired Go-link 5 pin speed connector, 1.5m Lead, 2 Pin Plug
Dali

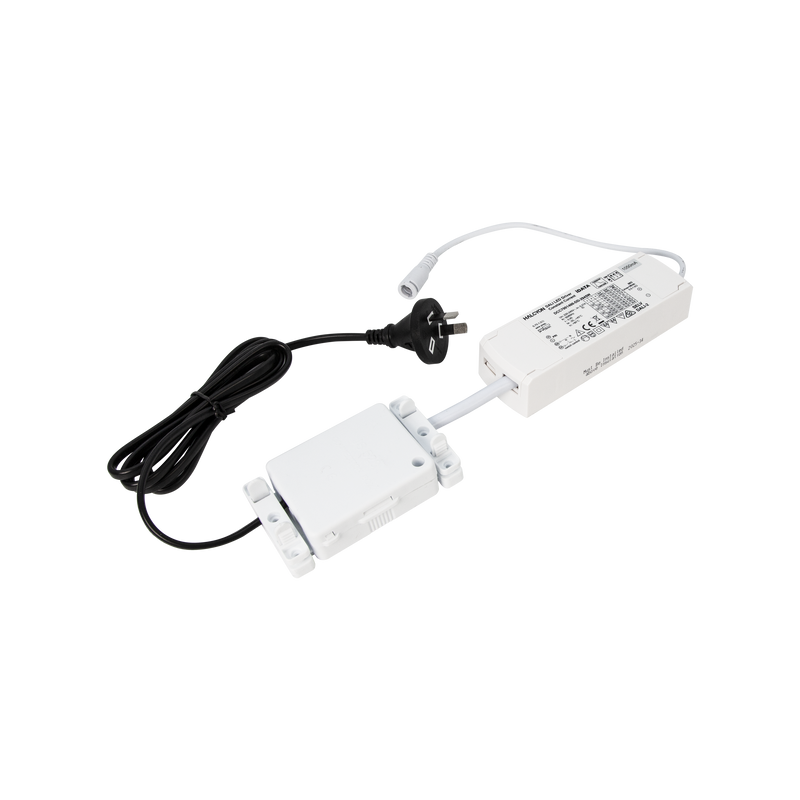

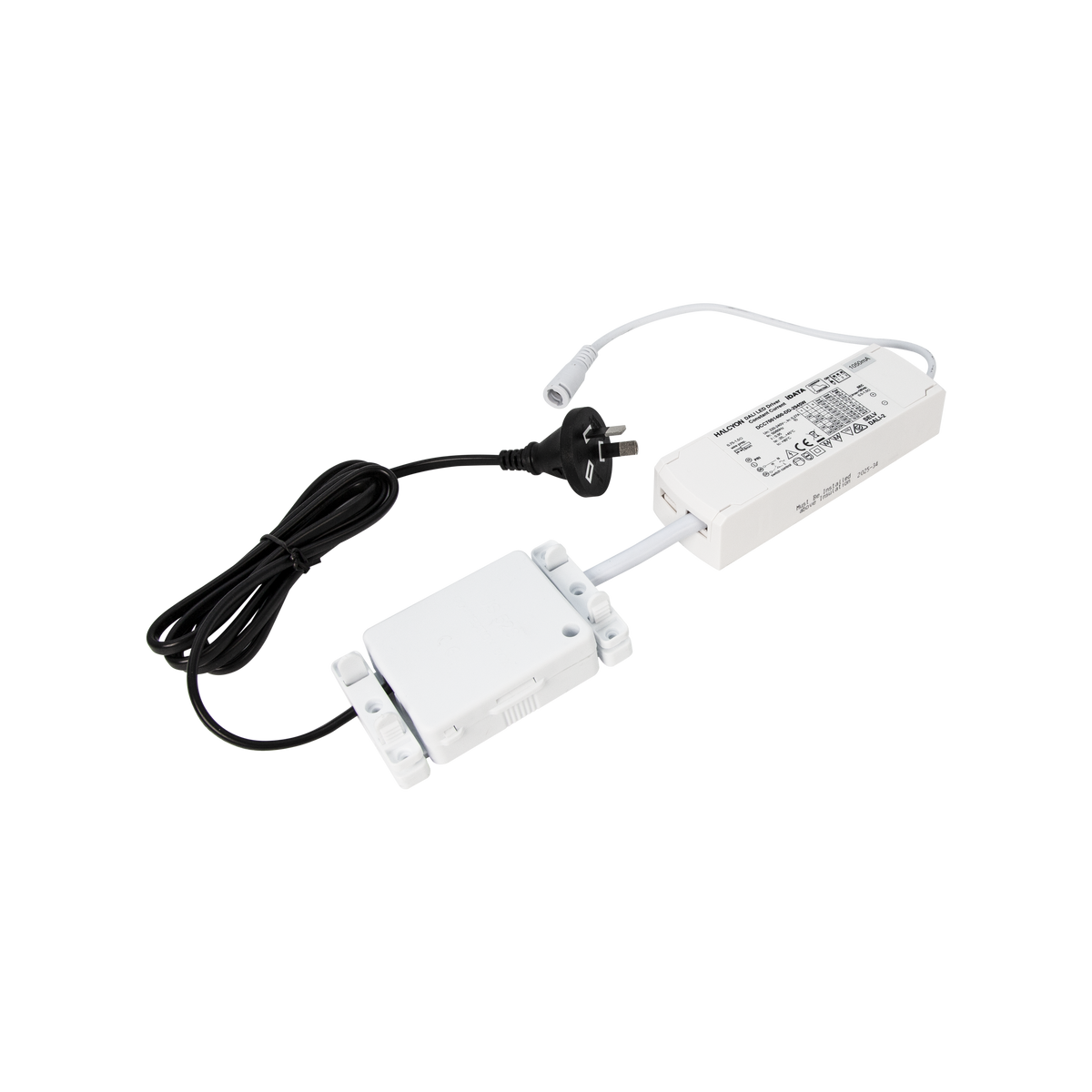

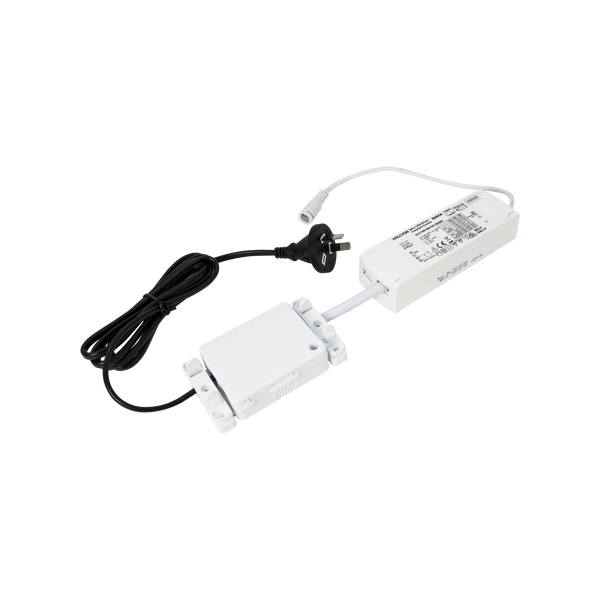

DCC900A-DD-38W-GL-PNL 900mA 38W Constant Current Dali Driver
Watts
9-37.8W
Watts
9-37.8W
Specifications
Watts
9-37.8W
Input
220-240V 50/60Hz
Dimming / Control
Dali
Height
28mm
Width
44mm
Length
137mm
Material
PC
Electrical Class
Class II
Driver Output Voltage
10-42V
Driver Output Current
900mA
Ambient Operating Temperature
-20..+45°C
Weight
190g
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
