DCC700A-DD-29W-GL-PNL
DCC700A-DD-29W-GL-PNL
- Custom Build - Request Availability

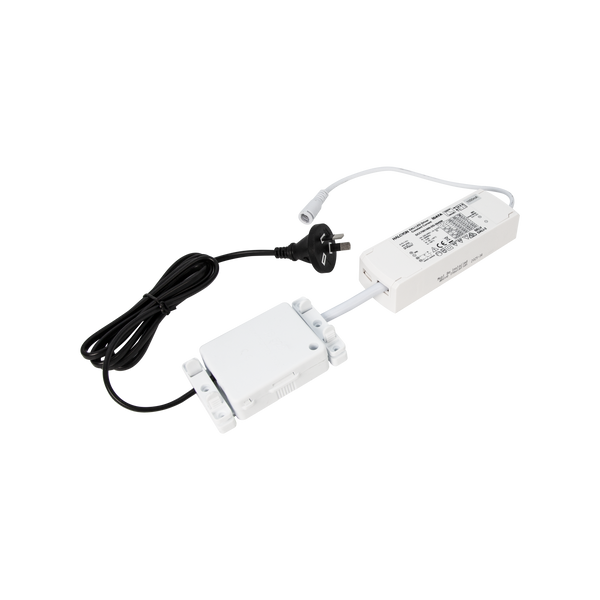

Driver Dali Pri:240V Sec: 10-42V DC Preset 700mA 29.4W c/w QC Panel Secondary Cable, Pre-wired Go-link 5 pin speed connector, 1.5m Lead, 2 Pin Plug
Dali
DCC700A-DD-29W-GL-PNL 700mA 29W Constant Current Dali Driver
Watts
7-29.4W
Watts
7-29.4W
Specifications
Watts
7-29.4W
Input
220-240V 50/60Hz
Dimming / Control
Dali
Height
28mm
Width
44mm
Length
137mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Material
PC
Electrical Class
Class II
Driver Output Voltage
10-42V
Driver Output Current
700mA
Ambient Operating Temperature
-20..+45°C
Weight
190g
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
