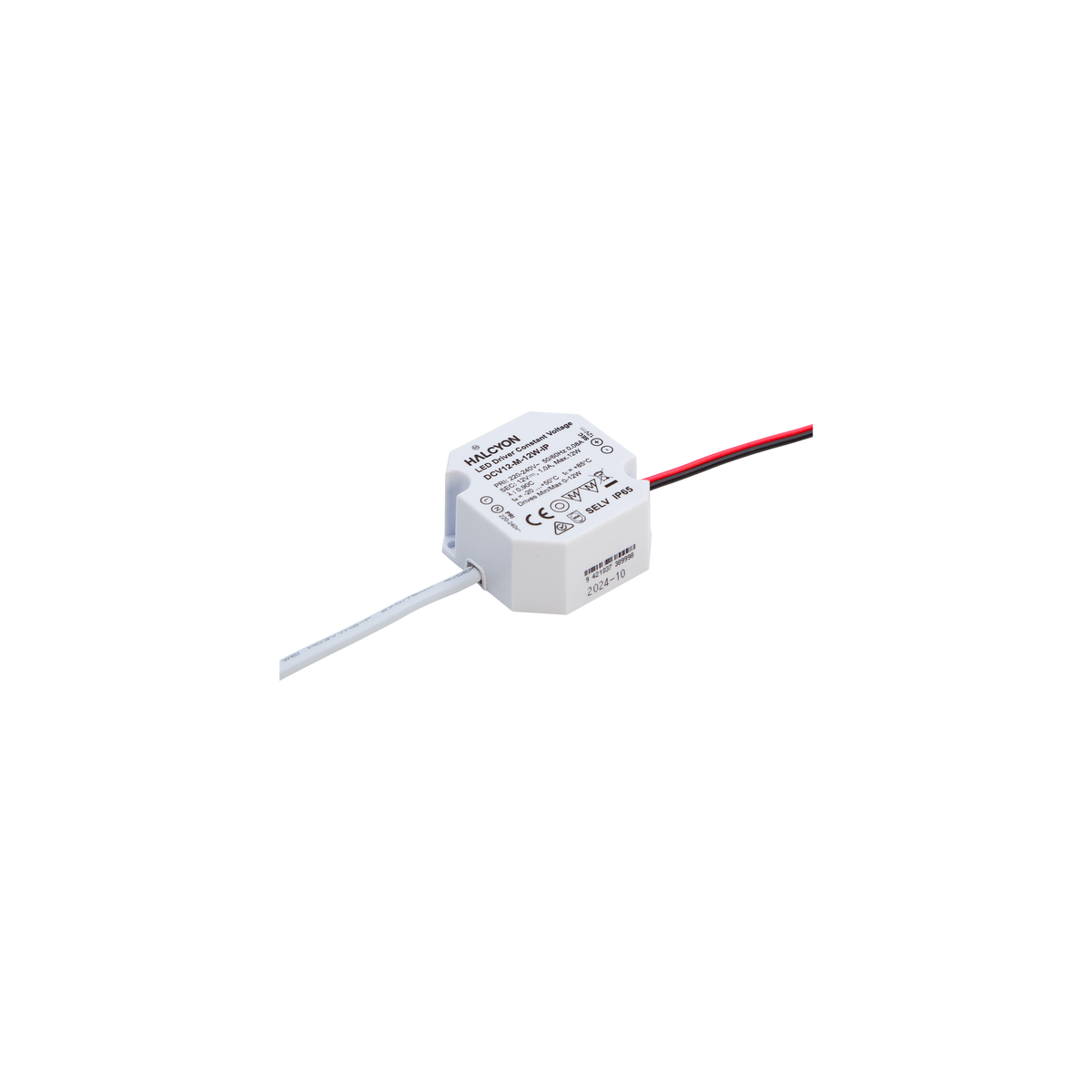

IP65 12V 12W Constant Voltage Mini Non-dimmable Driver

DCV12-M-12W-IP

All DCV12-M-12W-IP

DCV12-M-12W-IP

  • Checking stock...
Driver Mini Non-Dimmable Pri:240V Sec:12V DC CV 0-12W IP65
Non dimmable
IP65 12V 12W Constant Voltage Mini Non-dimmable Driver

DCV12-M-12W-IP IP65 12V 12W Constant Voltage Mini Non-dimmable Driver

Watts

0W-12W

Watts

0W-12W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

IP65 12V 12W Constant Voltage Mini Non-dimmable Driver

Non dimmable

DCV12-M-12W-IP

Watts

0W-12W

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP65

Height

24mm

Width

48mm

Length

50mm

Electrical Class

Class II

Driver Output Voltage

12V

Driver Output Current

0 - 1.0A

Installation Note

Suitable for Installation Under Insulation

Warranty

5 Year Warranty

Downloads

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login
Download All
IP65 12V 12W Constant Voltage Mini Non-dimmable Driver
