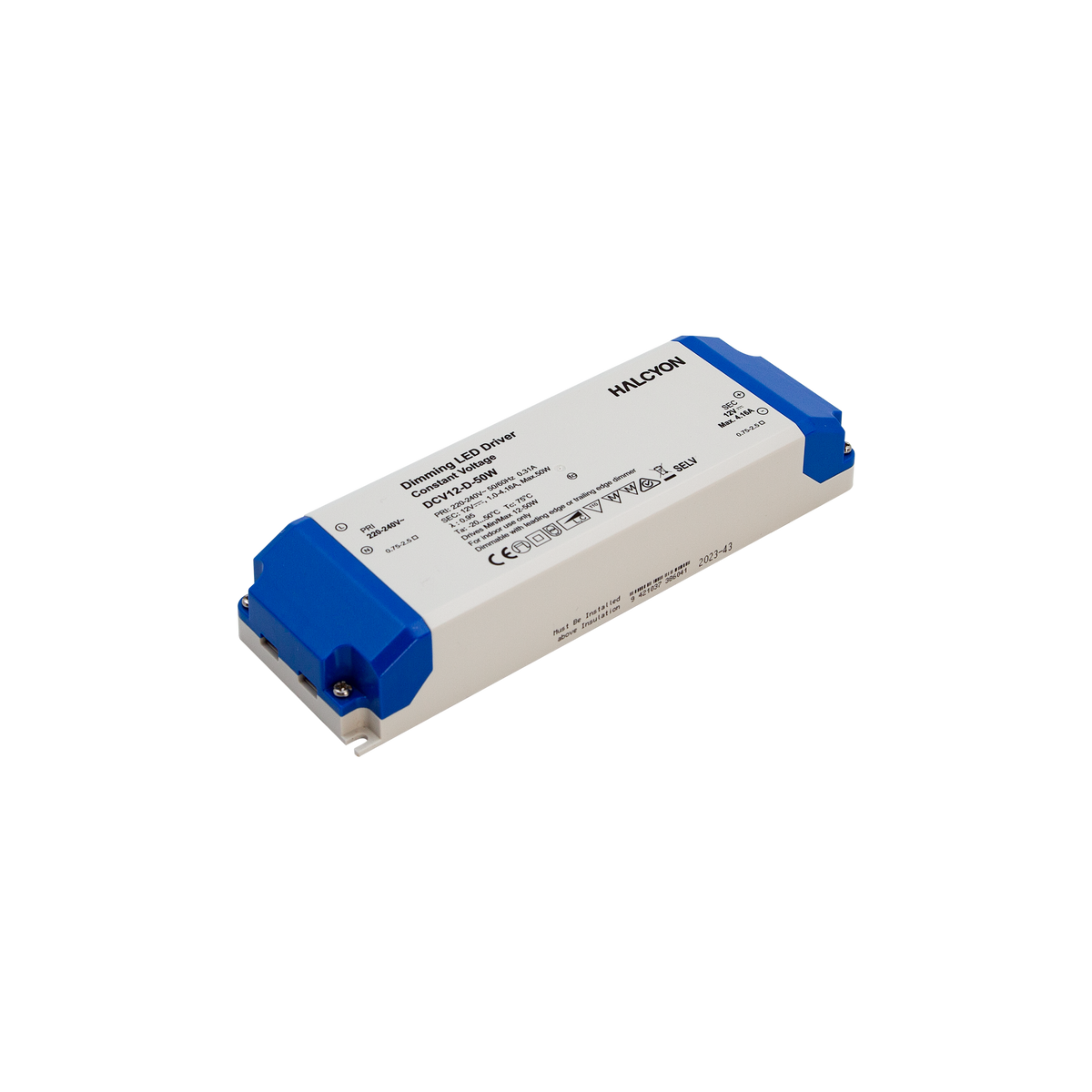

12V 50W Constant Voltage Phase-cut Dimmable Driver

DCV12-D-50W

All DCV12-D-50W

DCV12-D-50W

  • Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec:12V DC CV 12-50W
Dimmable (phase-cut)
12V 50W Constant Voltage Phase-cut Dimmable Driver

DCV12-D-50W 12V 50W Constant Voltage Phase-cut Dimmable Driver

Watts

12W-50W

Watts

12W-50W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

12V 50W Constant Voltage Phase-cut Dimmable Driver

Dimmable (phase-cut)

DCV12-D-50W

Watts

12W-50W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

32mm

Width

61mm

Length

184mm

Electrical Class

Class II

Driver Output Voltage

12V

Driver Output Current

1.0-4.16A

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty

Downloads

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login
Download All
12V 50W Constant Voltage Phase-cut Dimmable Driver
